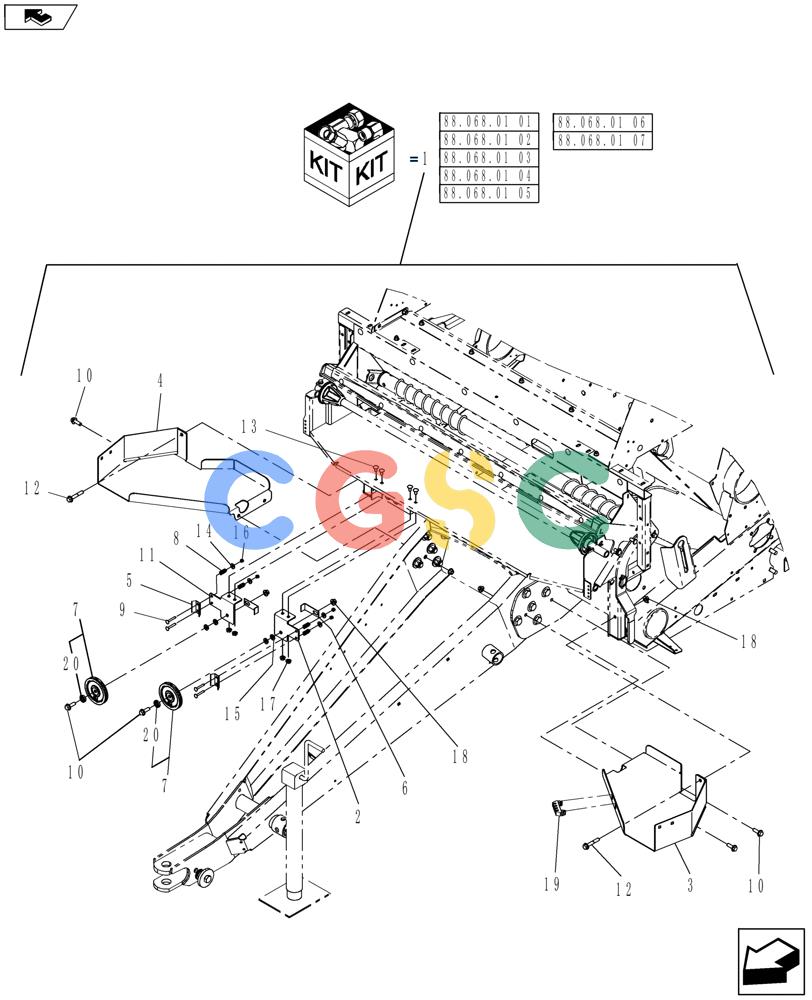

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.068.01[03]) - DIA KIT, STANDARD NET, TWINE BOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
756 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84134336
|
[1] |
DIA KIT, HARVESTER
|
PA
Standard Net
|
| 2. |
84237857
|
[1] |
MOUNT
|
NH
LH
|
| 3. |
84255919
|
[1] |
TWINE BOX
|
NH
LH
|
| 4. |
84255913
|
[1] |
TWINE BOX
|
NH
RH
|
| 5. |
9820171
|
[2] |
BRACKET
|
NH
|
| 6. |
86629062
|
[2] |
GUIDE
|
NH
Includes: Ref. 20
|
| 7. |
87038785
|
[2] |
PULLEY ASSY.
|
NH
|
| 8. |
29840
|
[4] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 9. |
412327
|
[4] |
CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 10. |
9804262
|
[6] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 11. |
84269565
|
[1] |
MOUNT
|
NH
RH
|
| 12. |
9804265
|
[2] |
FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8
|
NH
|
| 13. |
86619060
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 14. |
80701
|
[4] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 15. |
86511323
|
[4] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 16. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 17. |
9804277
|
[4] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 18. |
9804278
|
[8] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 19. |
52367
|
[1] |
HOLDER
|
NH
Shear Bolt
|
| 20. |
748669
|
[2] |
BALL BEARING,10mm ID x 30mm OD x 9mm W
|
NH
|
| 21. |
84134393
|
[1] |
INSTRUCTION
|
PA
|
