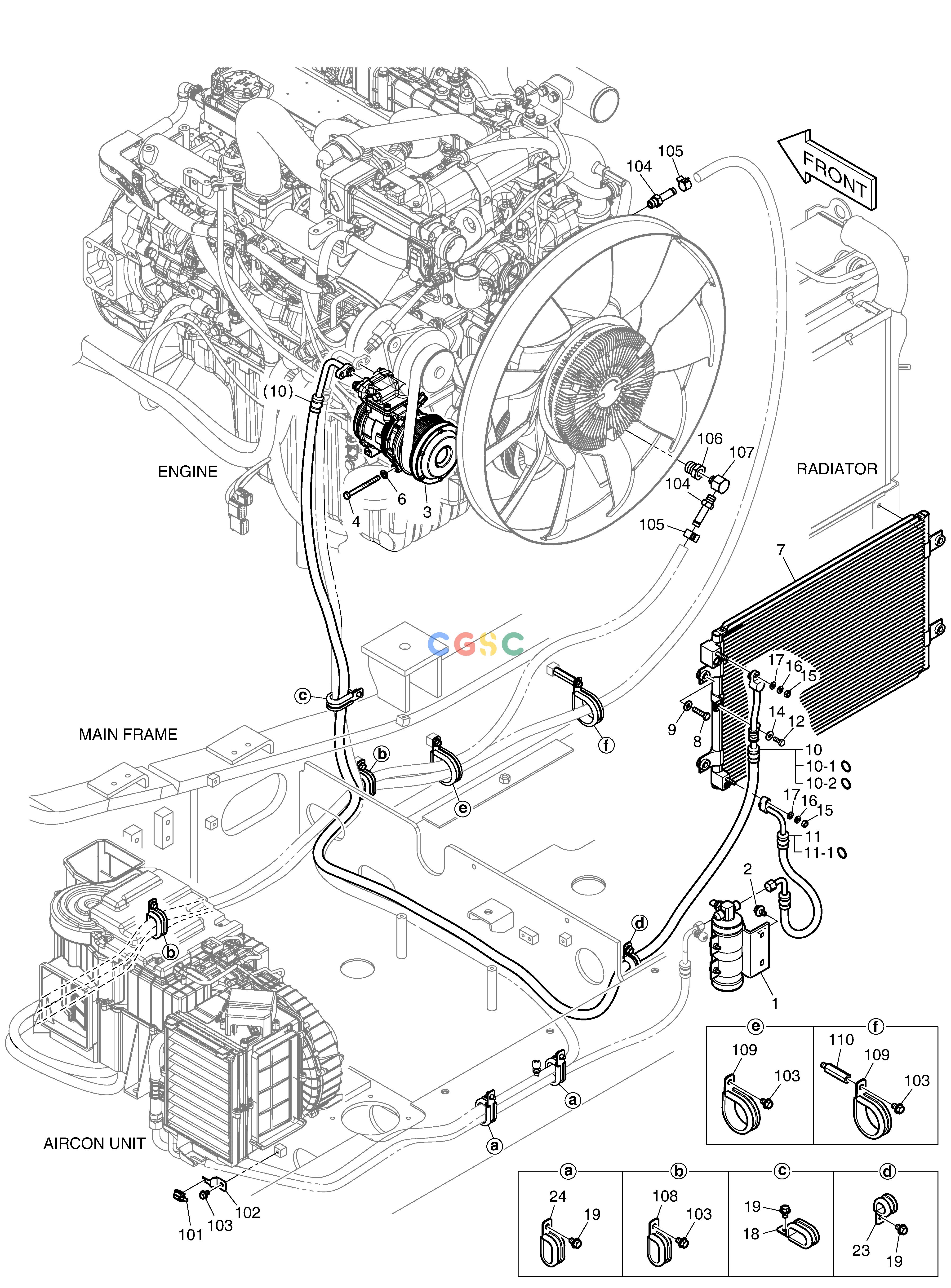

斗山零件查询AIRCONDITIONER(1) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
182 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00611
|
[-] |
|
|
| 1. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 10. |
420102-00186B
|
[1] |
|
|
| 10-1. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 10-2. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 101. |
547-00024A
|
[1] |
SENSOR
|
|
| 102. |
2197-1661
|
[1] |
BRACKET
|
|
| 103. |
K1001029
|
[5] |
BOLT
|
|
| 104. |
DS2228010
|
[2] |
|
|
| 105. |
DS2807026
|
[2] |
|
|
| 105. |
DS2809008
|
[2] |
CLIP
|
|
| 106. |
2181-1113D9
|
[1] |
REDUCER
|
|
| 107. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 108. |
124-00209D4
|
[2] |
CLIP
|
|
| 109. |
124-00208D9
|
[2] |
CLIP
|
|
| 11. |
420102-00293
|
[1] |
|
|
| 11-1. |
K1011388
|
[1] |
O-RING
|
|
| 110. |
DS0026009
|
[1] |
|
|
| 12. |
S0504666
|
[1] |
BOLT
|
|
| 14. |
2114-1058D52
|
[1] |
WASHER
|
|
| 15. |
S4012303
|
[2] |
NUT
|
|
| 16. |
S5102303
|
[2] |
. WASHER
|
|
| 17. |
S5000313
|
[2] |
WASHER
|
|
| 18. |
124-00209D4
|
[1] |
CLIP
|
|
| 19. |
K1001029
|
[4] |
BOLT
|
|
| 2. |
DS0025033
|
[2] |
BOLT
|
|
| 23. |
124-00208D2
|
[1] |
CLAMP
|
|
| 24. |
124-00209D2
|
[2] |
CLIP
|
|
| 3. |
400102-00381
|
[1] |
|
|
| 4. |
S0557166
|
[3] |
BOLT
|
|
| 6. |
S5010513
|
[3] |
WASHER
|
|
| 7. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 8. |
S0509366
|
[4] |
BOLT
|
|
| 9. |
DS0401202
|
[4] |
|
|
| 9. |
2114-1058D29
|
[4] |
WASHER
|
|
