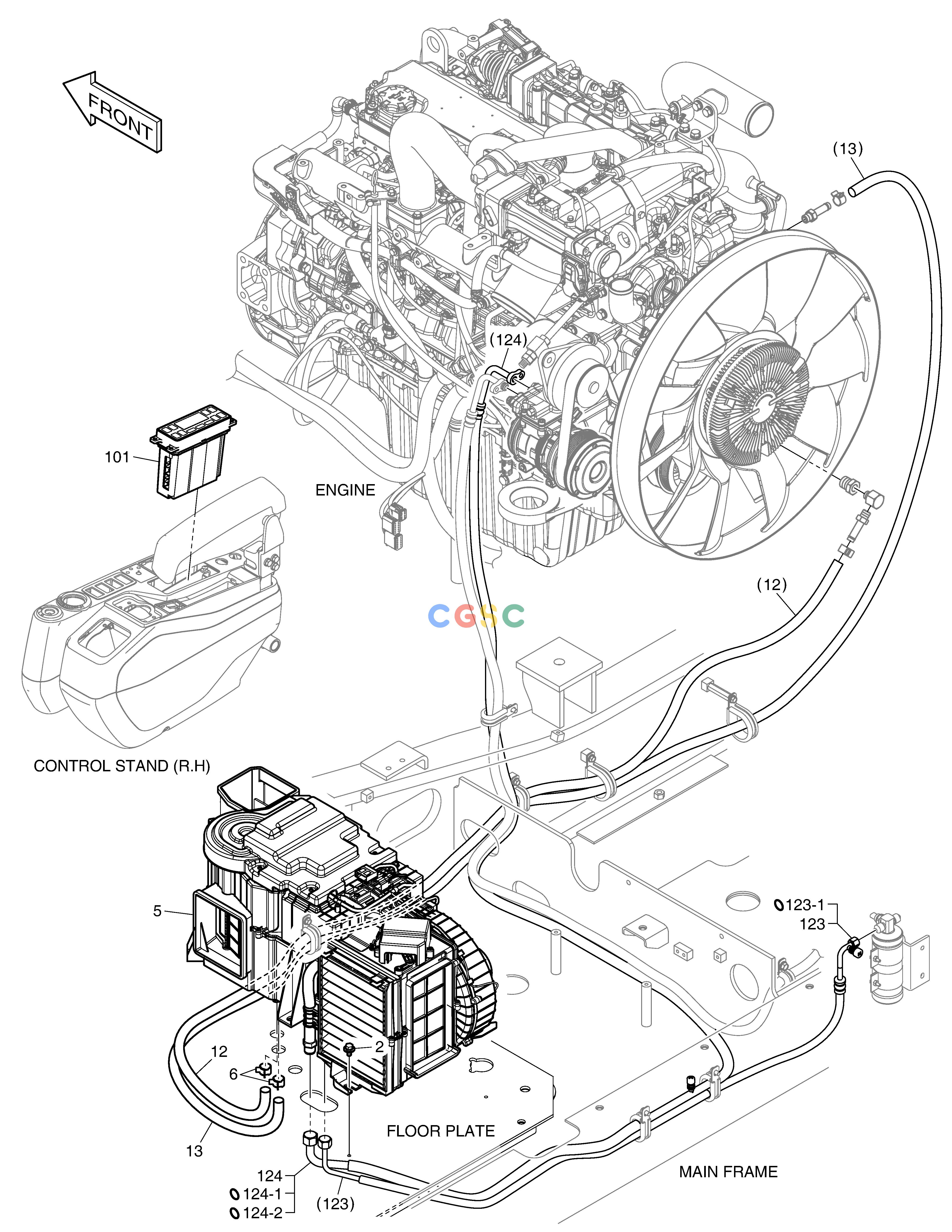

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 440213-00342 | [-] | ||
| -. | 440213-00342A | [-] | ||
| 101. | 543-00107 | [1] | CONTROL PANEL,AIR CON | |
| 12. | 2185-1308D3 | [1] | HOSE | |
| 123. | 420102-00405 | [1] | ||
| 123-1. | K1011388 | [2] | O-RING | |
| 124. | 420102-00265B | [1] | ||
| 124-1. | K1011385 | [1] | O-RING(EVAPORATOR) | |
| 124-2. | 2180-6086 | [1] | O-RING(COMP) | |
| 13. | 2185-1308D5 | [1] | HOSE;RUBBER | |
| 2. | DS0025033 | [6] | BOLT | |
| 5. | 440205-00033 | [1] | ||
| 6. | DS2807026 | [2] | ||
| 6. | DS2809008 | [2] | CLIP |
