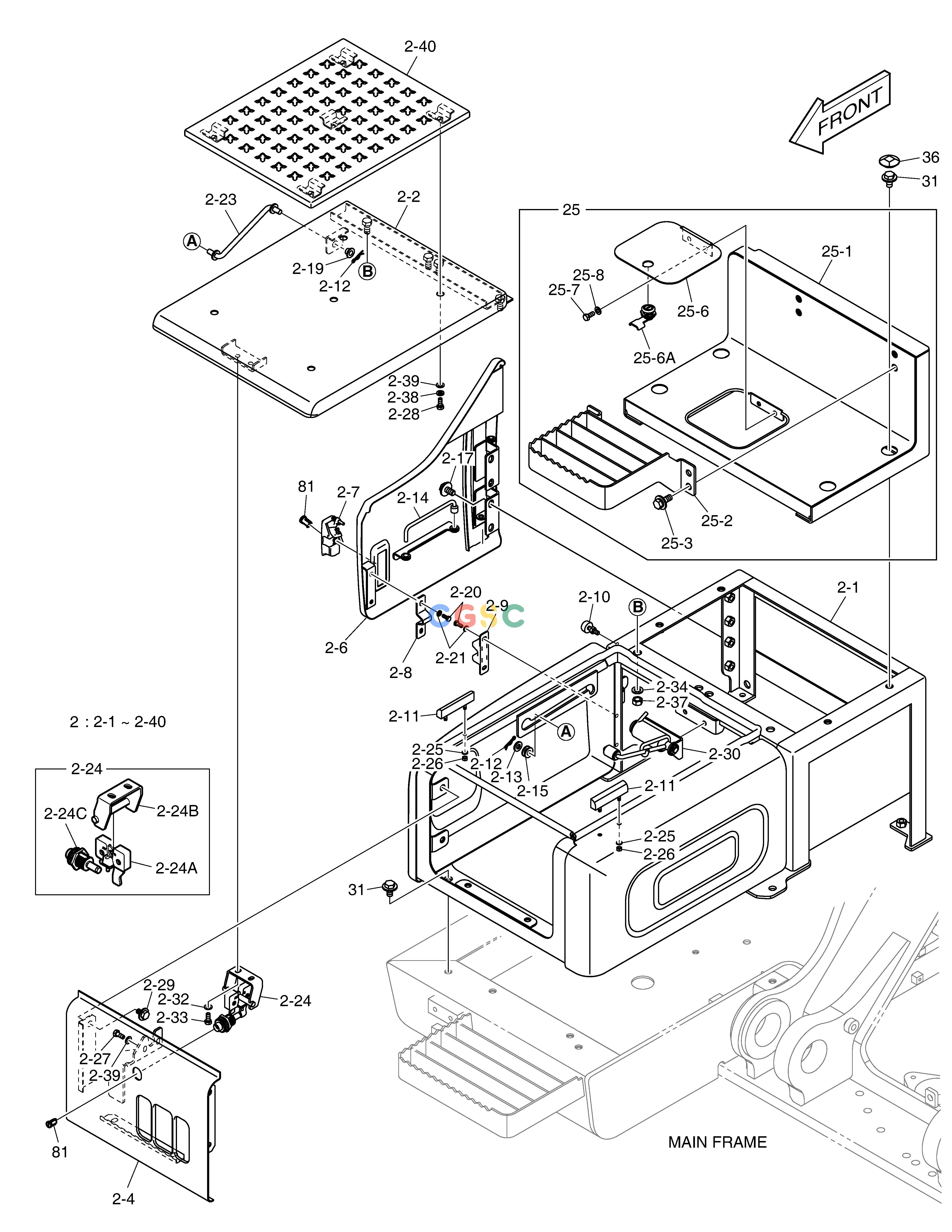

Pos.	Part No	Qty	Parts name
-.	110508-14000	[-]
2.	110503-00222B	[1]
2-1.	110503-00321A	[1]
2-10.	K1042626	[1]
2-11.	K1005305A	[2]	. STOPPER;RUBBER
2-12.	2705-9002	[2]	PIN
2-13.	2114-1058D63	[1]	WASHER
2-14.	101582-00470A	[1]
2-15.	K1008335	[1]	. BUSHING
2-17.	DS0025015	[4]	BOLT
2-19.	K1000602	[1]	. BUSHING
2-2.	110503-00308A	[1]
2-20.	S0504653	[4]	. BOLT
2-21.	S5010313	[4]	WASHER
2-23.	101582-00472	[1]
2-24.	110933-00033B	[1]
2-24A.	110933-00054	[1]
2-24B.	101583-00087	[1]
2-24C.	110701-00012	[1]
2-25.	S5102303	[4]	. WASHER
2-26.	S4012333	[4]	NUT
2-27.	S0508853	[4]	. BOLT
2-28.	S0508866	[5]	BOLT
2-29.	DS0025014	[6]	BOLT
2-30.	111603-00009A	[1]
2-32.	S5010513	[2]	WASHER
2-33.	S0508853	[2]	. BOLT
2-34.	S5010713	[4]	WASHER;PLAIN
2-37.	S4012733	[4]	NUT
2-38.	S5102506	[5]	WASHER,SPRING
2-39.	S5010516	[7]	WASHER
2-4.	110503-00224A	[1]
2-40.	110508-17752A	[1]
2-6.	110982-00647B	[1]
2-7.	110933-00035	[1]
2-8.	250201-00028	[1]	. PLATE
2-9.	110956-00002A	[1]	. STOPPER
25.	110958-02125B	[1]
25-1.	110958-02127B	[1]
25-2.	110955-00243B	[1]
25-3.	DS0025020	[4]	BOLT
25-6.	110508-19140	[1]
25-6A.	110701-00002	[1]
25-7.	S0508853	[2]	. BOLT
25-8.	S5010516	[2]	WASHER
31.	DS0025015	[10]	BOLT
36.	110910-01054	[4]
81.	K1004630	[2]	CYLINDER;KEY
