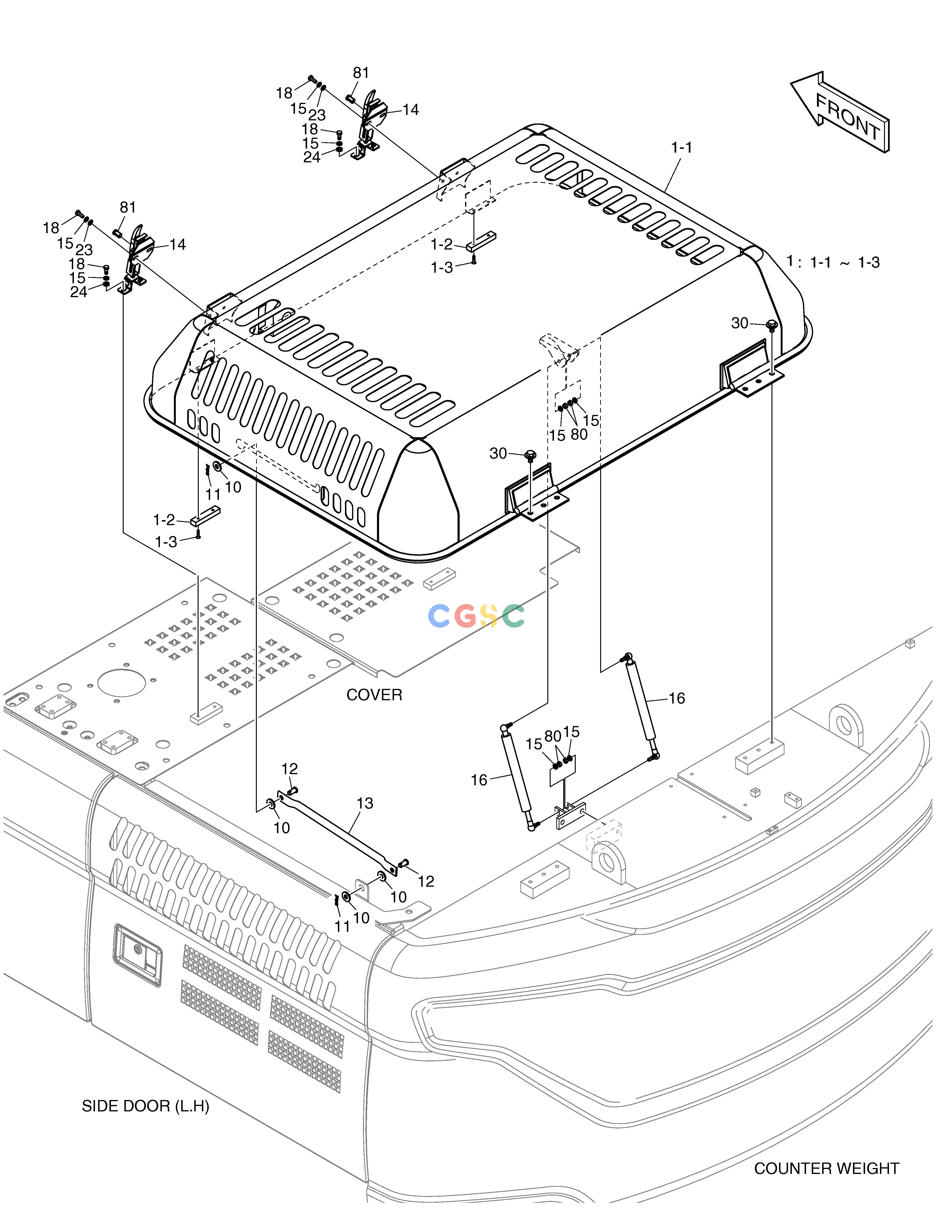

斗山零件查询BONNET ASS'Y DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-14000
|
[-] |
|
|
| 1. |
110506-00223B
|
[1] |
|
|
| 1-1. |
110506-00260A
|
[1] |
|
|
| 1-2. |
2512-1054
|
[2] |
RUBBER
|
|
| 1-3. |
S3452983
|
[4] |
SCREW
|
|
| 10. |
2114-1154
|
[4] |
WASHER
|
|
| 11. |
2705-9002
|
[2] |
PIN
|
|
| 12. |
2123-1057D47
|
[2] |
PIN
|
|
| 13. |
101582-00695
|
[1] |
|
|
| 14. |
125-00075A
|
[2] |
CATCH
|
|
| 15. |
S5102503
|
[12] |
. WASHER
|
|
| 16. |
DS1001021
|
[2] |
|
|
| 18. |
S0508866
|
[8] |
BOLT
|
|
| 23. |
S5010513
|
[4] |
WASHER
|
|
| 24. |
2114-1058D56
|
[4] |
WASHER
|
|
| 30. |
DS0025015
|
[12] |
BOLT
|
|
| 80. |
S4012533
|
[4] |
NUT
|
|
| 81. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
