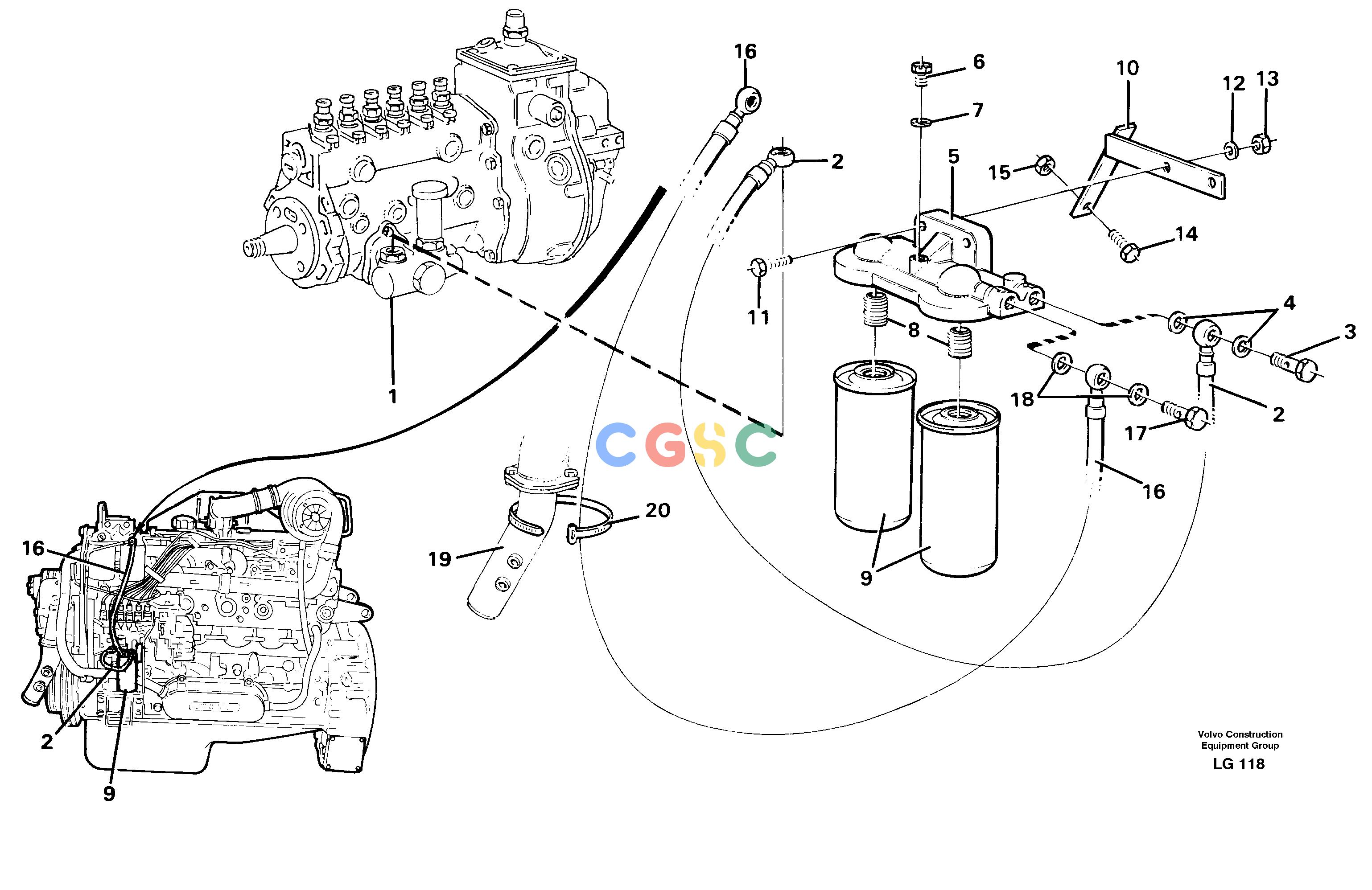

沃尔沃零件查询EC200 Extra fuel filterSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
715 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Feed pump
|
|
| 2. |
VOE4771392
|
[1] |
Fuel hose
|
L = 1000
|
| 3. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 4. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 5. |
VOE787029
|
[1] |
Cover
|
|
| 6. |
VOE11000051
|
[1] |
Screw
|
|
| 7. |
VOE957171
|
[1] |
Gasket
|
|
| 8. |
VOE781644
|
[2] |
Nipple
|
|
| 9. |
VOE795210
|
[2] |
Fuel filter
|
|
| 10. |
VOE14261369
|
[1] |
Retainer
|
|
| 11. |
VOE60111880
|
[2] |
Hexagon screw
|
(14014602)
|
| 12. |
VOE13955894
|
[2] |
Washer
|
(14015096)
|
| 13. |
VOE955782
|
[2] |
Hexagon nut
|
(14015040)
|
| 14. |
VOE955297
|
[2] |
Hexagon screw
|
(14014599)
|
| 15. |
VOE955782
|
[2] |
Hexagon nut
|
(14015040)
|
| 16. |
VOE4774632
|
[1] |
Fuel hose
|
L = 750
|
| 17. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 18. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 19. |
|
[1] |
Coolant pipe
|
|
| 20. |
VOE14016673
|
[3] |
Strip clamp
|
|
