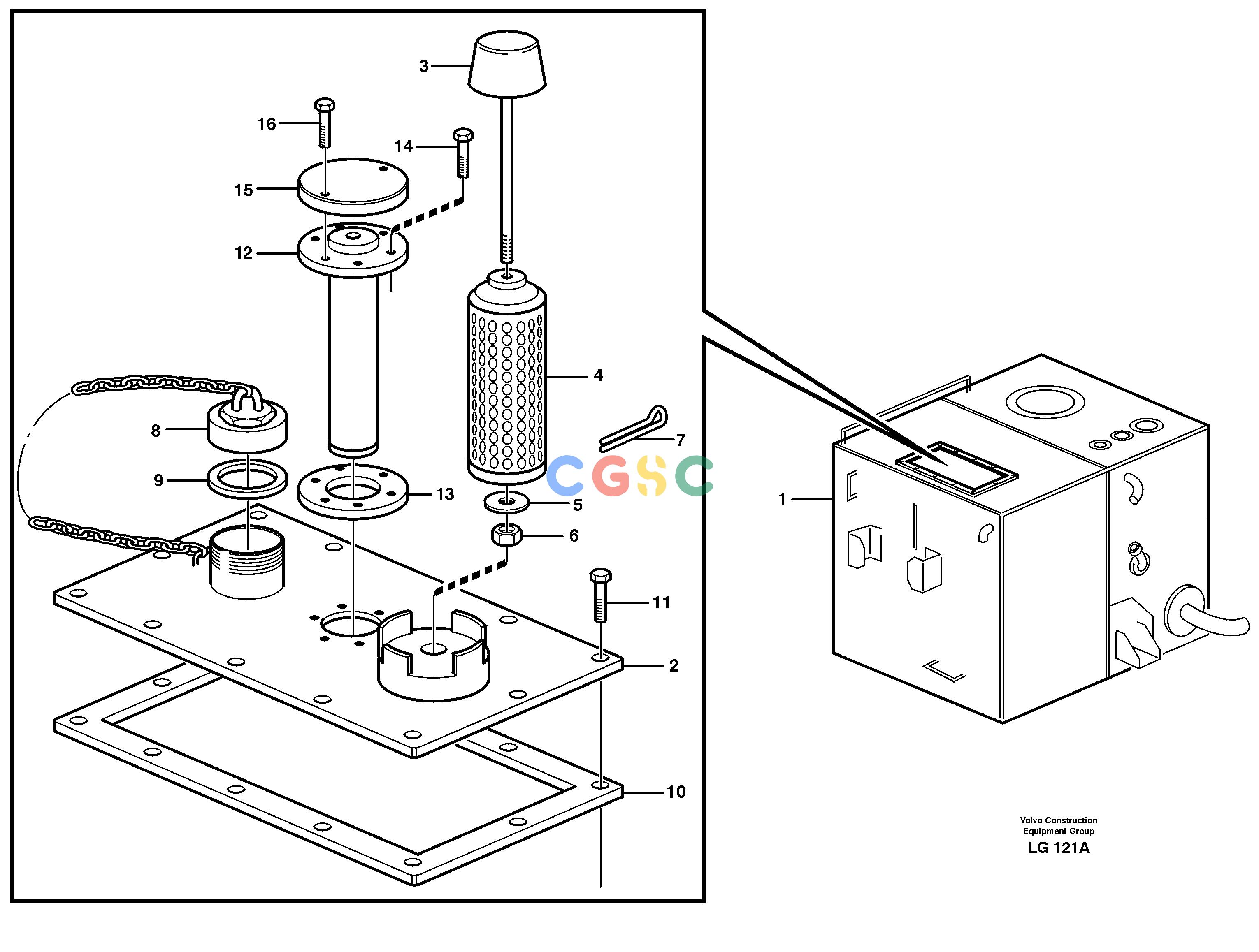

沃尔沃零件查询EC200 Fuel tankSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14255759
|
[1] |
Tank
|
|
| 2. |
VOE14341657
|
[1] |
Cover
|
|
| 3. |
VOE14341652
|
[1] |
Cover
|
|
| 4. |
VOE14267423
|
[1] |
Aeration filter
|
|
| 5. |
VOE14054062
|
[1] |
Washer
|
|
| 6. |
VOE14015061
|
[1] |
Nut
|
|
| 7. |
VOE14015157
|
[1] |
Cotter Pin
|
|
| 8. |
VOE1189577
|
[1] |
Filler cap
|
|
| 9. |
VOE14014294
|
[1] |
Gasket
|
|
| 10. |
VOE14040388
|
[1] |
Gasket
|
|
| 11. |
VOE940199
|
[12] |
Hexagon screw
|
|
| 12. |
VOE14211929
|
[1] |
Level sensor
|
|
| 13. |
VOE14211931
|
[1] |
Gasket
|
|
| 14. |
VOE14102805
|
[4] |
Screw
|
|
| 15. |
VOE14241070
|
[1] |
Cover
|
|
| 16. |
VOE14014594
|
[2] |
Screw
|
|
