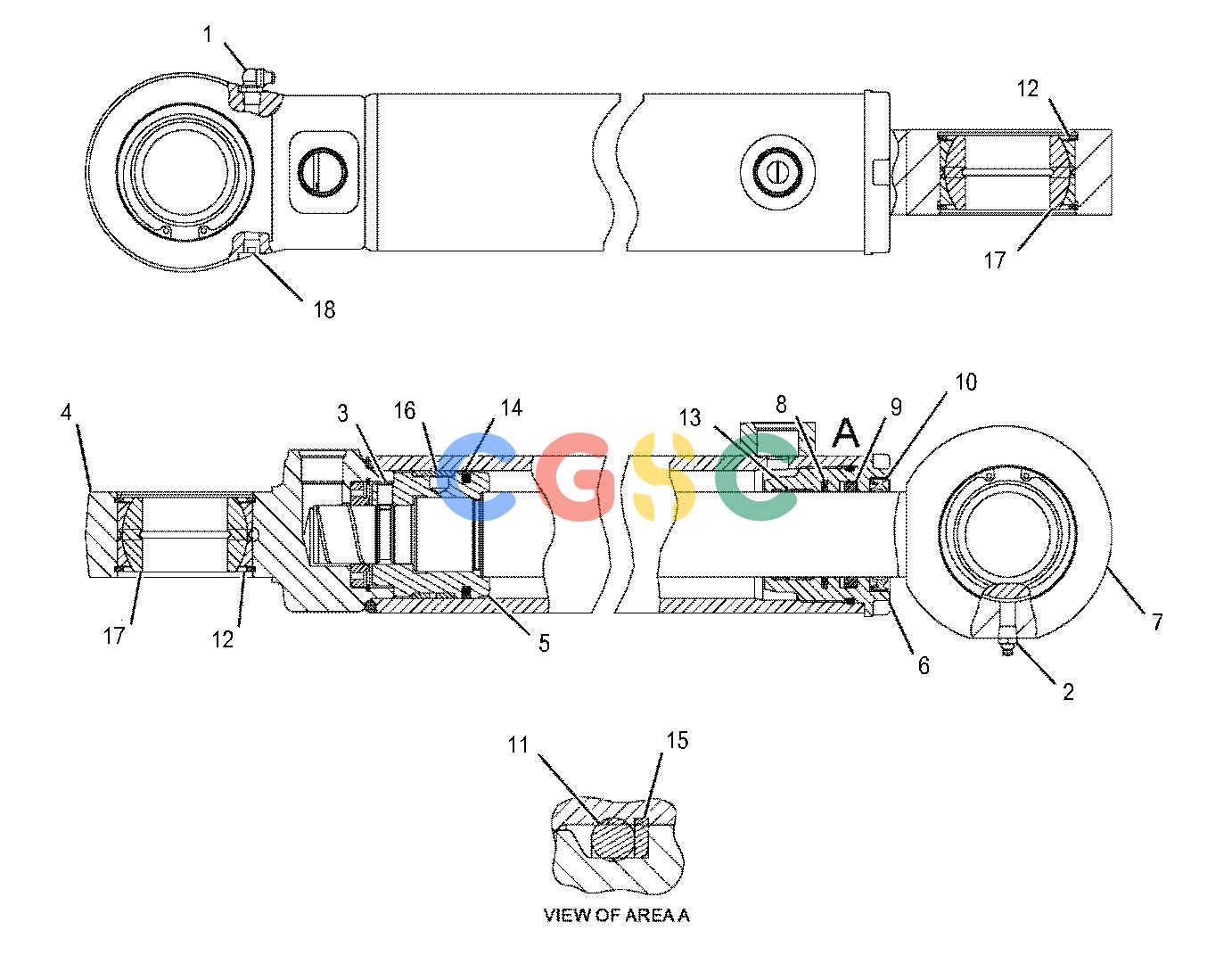

卡特零件查询（725） 151-2611: CYLINDER GP-TAILGATE
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 5U-6605 | [1] | PLUG(GRUB) | |
| 4. | 151-7033 | [1] | CYLINDER AS | |
| | 4D-1736 | [1] | RING-RETAINING | |
| | 6U-7417 | [1] | RING-CUSHION | |
| 5. | 151-7037 | [1] | PISTON | |
| 6. | 151-7038 | [1] | HEAD | |
| 7. | 193-0676 | [1] | ROD AS | |
| 8. | 289-2935 | [1] | SEAL AS-BUFFER | |
| 9. | 289-2946 | [1] | SEAL-U-CUP | |
| 10. | 308-1845 | [1] | SEAL-WIPER | |
| 11. | 1H-7339 | [1] | SEAL-O-RING | |
| 12. | 2W-1145 | [4] | RING-RETAINING(INTERNAL) | |
| 13. | 4T-5613J | [1] | RING-WEAR | |
| 14. | 6J-1972J | [1] | SEAL AS | |
| 15. | 6J-5731J | [1] | RING-BACKUP | |
| 16. | 6J-5733J | [1] | RING-WEAR | |
| 17. | 6V-5002 | [2] | BEARING-ALIGNING | |
| 18. | 9F-2247 | [1] | PLUG-PIPE(1/8-27-THD) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 238-4462J | [1] | KIT-SEAL(LIFT CYLINDER) | |
| | | | (INCLUDES O RING SEAL, U CUP SEAL & SEAL AS BUFFER) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
