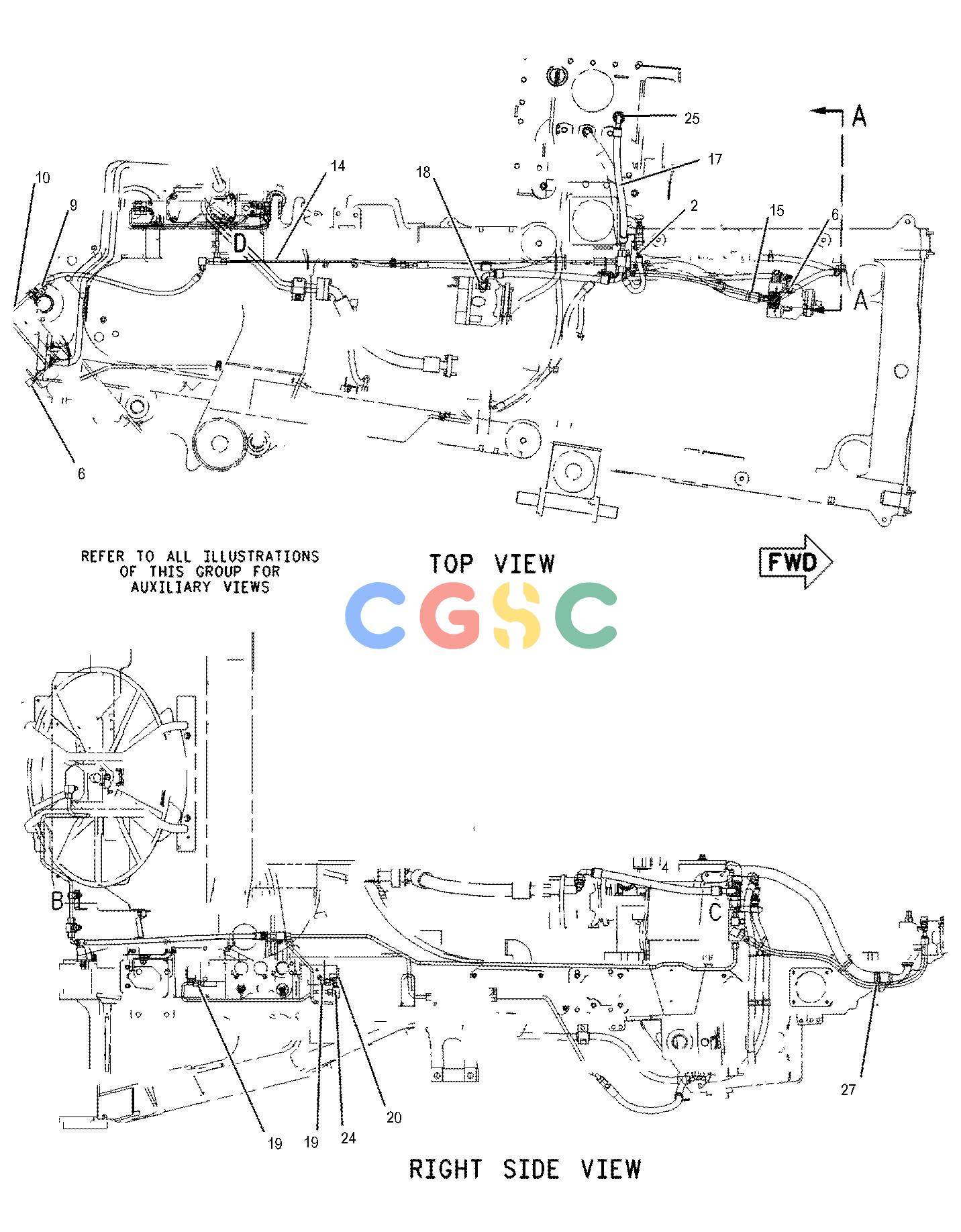

卡特零件查询（725） 150-8263: HYDRAULIC AR-MACHINE
广数供应链运营团队, 14 02月, 2025，浏览：
177 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 140-2092Y | [1] | BATTERY & WIRING GP | |
| | 149-0040Y | [1] | BOX GP-BATTERY | |
| | 199-5975Y | [1] | BREATHER GP-POWER TRAIN | |
| | Y | [1] | CAB AR |
| | | | S/N AFX1-1097 |
| | Y | [1] | CAB AR |
| | | | S/N AFX1098-UP |
| | 149-0012Y | [1] | LINES GP-DIFFERENTIAL LOCK(FRONT) | |
| | 147-6831Y | [1] | FENDER & SUPPORT GP | |
| | | | S/N AFX1-1178 |
| | 242-5567Y | [1] | FENDER & SUPPORT GP | |
| | | | S/N AFX1179-UP |
| | 149-0006Y | [1] | LINES GP-DRAIN | |
| | | | S/N AFX1-1178 |
| | 234-5606Y | [1] | LINES GP-DRAIN | |
| | | | S/N AFX1179-UP |
| | 149-0017Y | [1] | DRAIN GP-ENGINE OIL | |
| | 149-0018Y | [1] | LINES GP-FUEL | |
| | 149-0089Y | [1] | LINES GP-HEATER | |
| | 149-0005Y | [1] | LINES GP-HOIST | |
| | | | S/N AFX1-1178 |
| | 234-5604Y | [1] | LINES GP-HOIST | |
| | | | S/N AFX1179-UP |
| | 149-0010Y | [1] | LINES GP-HYDRAULIC FAN | |
| | | | S/N AFX1-471 |
| | 210-5882Y | [1] | LINES GP-HYDRAULIC FAN | |
| | | | S/N AFX472-1178 |
| | 234-5610Y | [1] | LINES GP-HYDRAULIC FAN | |
| | | | S/N AFX1179-UP |
| | 149-0008Y | [1] | LINES GP-PILOT | |
| | | | S/N AFX1-866 |
| | 225-8741Y | [1] | LINES GP-PILOT | |
| | | | S/N AFX867-1178 |
| | 234-5608Y | [1] | LINES GP-PILOT | |
| | | | S/N AFX1179-UP |
| | 184-6320Y | [1] | LINES GP-PRESSURE TEST | |
| | | | S/N AFX1-1178 |
| | 234-5611Y | [1] | LINES GP-PRESSURE TEST | |
| | | | S/N AFX1179-UP |
| | 149-0004Y | [1] | LINES GP-PUMP | |
| | | | S/N AFX1-1178 |
| | 234-5603Y | [1] | LINES GP-PUMP | |
| | | | S/N AFX1179-UP |
| | 175-2158Y | [1] | LINES GP-RETURN | |
| | | | S/N AFX1-1178 |
| | 234-5609Y | [1] | LINES GP-RETURN | |
| | | | S/N AFX1179-UP |
| | 149-0007Y | [1] | LINES GP-STEERING | |
| | | | S/N AFX1-866 |
| | 225-8740Y | [1] | LINES GP-STEERING | |
| | | | S/N AFX867-1178 |
| | 234-5605Y | [1] | LINES GP-STEERING | |
| | | | S/N AFX1179-UP |
| | 139-4593Y | [1] | MOUNTING GP-ROPS | |
| | 149-0013Y | [1] | MUFFLER GP | |
| | 149-0014Y | [1] | SHIELD GP-EXHAUST | |
| | 149-0042Y | [1] | STEP GP | |
| | | | S/N AFX1-1178 |
| | 242-8224Y | [1] | STEP GP | |
| | | | S/N AFX1179-UP |
| | 140-2095Y | [1] | TANK & MTG GP-FUEL | |
| | | | S/N AFX1-1178 |
| | 223-9608Y | [1] | TANK & MTG GP-FUEL | |
| | | | S/N AFX1179-UP |
| | 140-2093Y | [1] | TANK & MTG GP-HYDRAULIC | |
| | | | S/N AFX1-1178 |
| | 234-5599Y | [1] | TANK & MTG GP-HYDRAULIC | |
| | | | S/N AFX1179-UP |
| | 155-0555Y | [1] | TANK GP-POWER TRAIN OIL | |
| | 149-0044Y | [1] | TILT GP-PLATFORM | |
| | | | S/N AFX1-1178 |
| | 249-4615Y | [1] | TILT GP-PLATFORM | |
| | | | S/N AFX1179-UP |
| | 144-6220Y | [1] | VALVE & MTG GP-HOIST CONTROL | |
| | | | S/N AFX1-1178 |
| | 241-8328Y | [1] | VALVE & MTG GP-HOIST CONTROL | |
| | | | S/N AFX1179-UP |
| | 234-5601Y | [1] | VALVE & MTG GP-MAIN CONTROL | |
| | | | S/N AFX1179-UP |
| | Y | | SEPARATE ILLUSTRATION |
