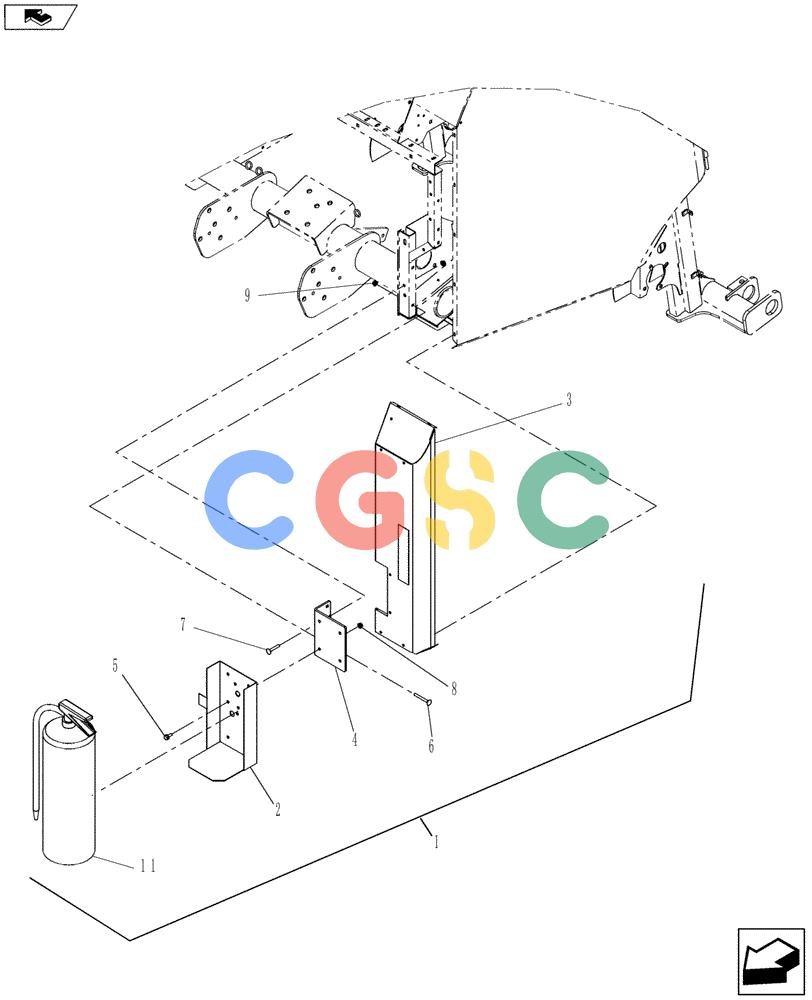

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.510.01) - DIA KIT, FIRE EXTINGUISHER, TWINE BALERS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84133612
|
[1] |
DIA KIT, HARVESTER
|
NH
Fire Extinguisher, Twine Balers, Includes: Ref. 2 - 11
|
| 2. |
84271991
|
[1] |
MOUNT
|
NH
|
| 3. |
84133548
|
[1] |
FILLER
|
NH
|
| 5. |
9804258
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 6. |
80300660
|
[2] |
SCREW
|
ZED
|
| 7. |
86559150
|
[1] |
CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8
|
NH
|
| 8. |
9804277
|
[5] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 9. |
86050303
|
[2] |
NUT
|
WIN
Superseded by part number: 87681210
|
| 10. |
84134387
|
[1] |
INSTRUCTION
|
NH
|
| 11. |
9827423
|
[1] |
FIRE EXTINGUISHER,Classification A
|
NH
|
