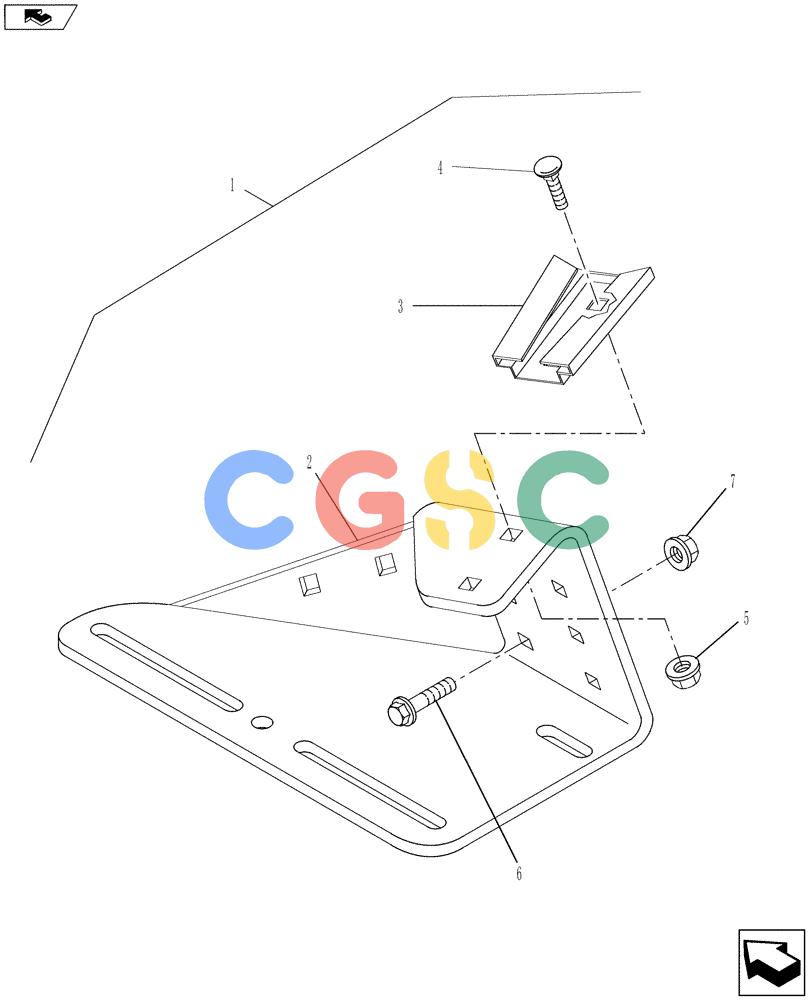

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.100.03) - DIA KIT, CONTROL BOX MOUNT, UNIVERSAL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84134365
|
[1] |
DIA KIT, HARVESTER
|
NH
Control Box Mount, Includes: Installation Instructions
|
| 2. |
86622259
|
[1] |
BRACKET
|
NH
|
| 3. |
847590
|
[1] |
BRACKET
|
NH
Socket
|
| 4. |
280497
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
|
NH
|
| 5. |
145458
|
[2] |
SERRATED NUT,SERRATED NUT 5/16"-18 GR 5 ZND
|
NH
|
| 6. |
86511479
|
[6] |
BOLT,Hex Flg, M8 x 20mm
|
WIN
|
| 7. |
86505868
|
[6] |
SERRATED NUT,Hex, M8 x 1.25, Cl 8
|
ZED
|
