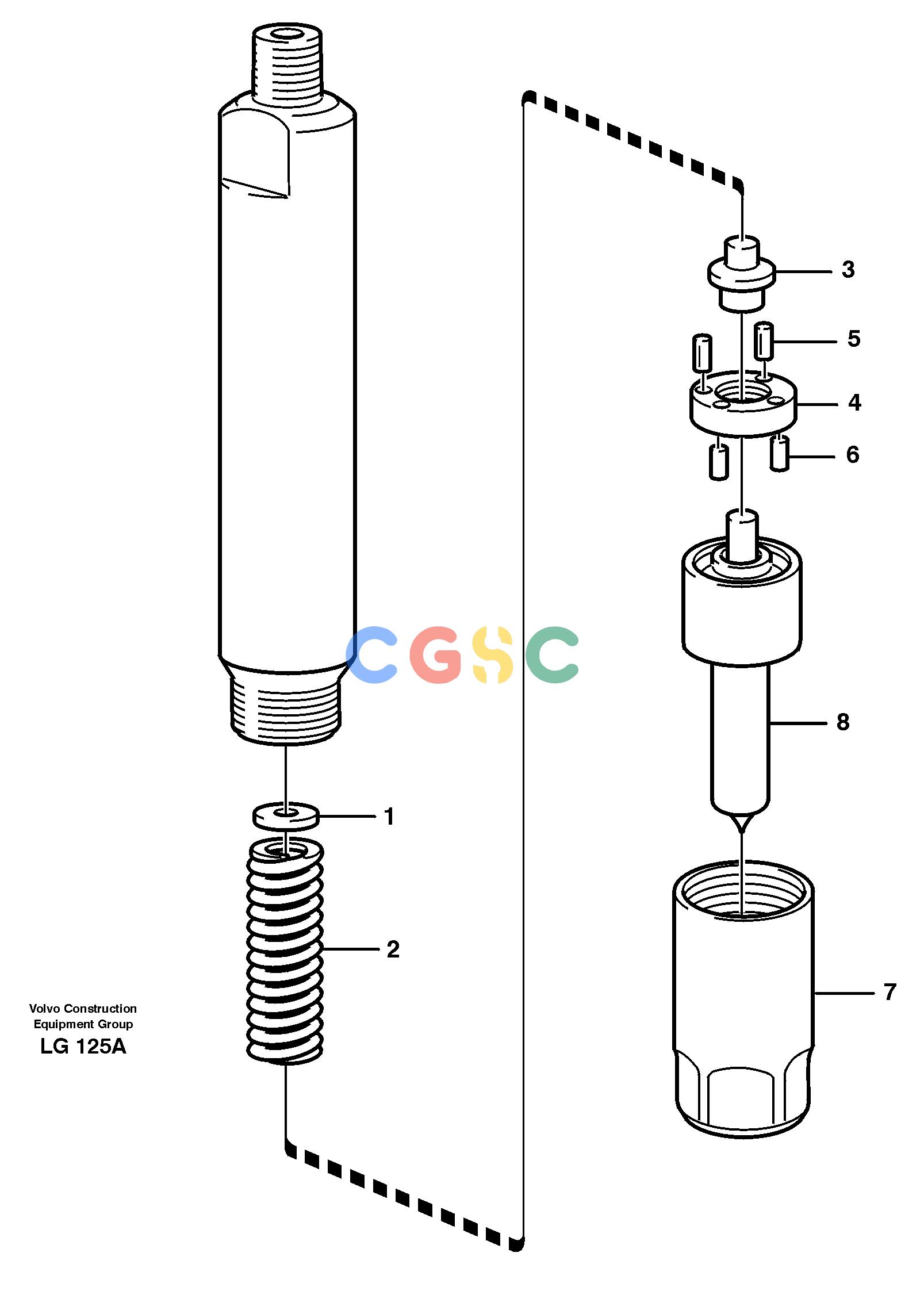

沃尔沃零件查询EC200 InjectorSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE477885
|
[1] |
Injector
|
|
| |
VOE477817
|
[1] |
Nozzle retainer
|
|
| 1. |
VOE11700654
|
[REQ] |
Shim
|
TJ = 1,00
|
| |
VOE11701280
|
[REQ] |
Shim
|
TJ = 1,04
|
| |
VOE3094407
|
[REQ] |
Shim
|
TJ = 1,08
|
| |
VOE11701085
|
[REQ] |
Shim
|
TJ = 1,12
|
| |
VOE3094408
|
[REQ] |
Shim
|
TJ = 1,16
|
| |
VOE846963
|
[REQ] |
Adjusting washer
|
TJ = 1,18
|
| |
VOE11701282
|
[REQ] |
Shim
|
TJ = 1,20
|
| |
VOE11700776
|
[REQ] |
Shim
|
TJ = 1,24
|
| |
VOE11701049
|
[REQ] |
Shim
|
TJ = 1,28
|
| |
VOE11701106
|
[REQ] |
Shim
|
TJ = 1,32
|
| |
VOE846966
|
[REQ] |
Adjusting washer
|
TJ = 1,38
|
| |
VOE244800
|
[REQ] |
Shim
|
TJ = 1,40
|
| |
VOE11700690
|
[REQ] |
Shim
|
TJ = 1,44
|
| |
VOE11701281
|
[REQ] |
Shim
|
TJ = 1,48
|
| |
VOE11701783
|
[REQ] |
Shim
|
TJ = 1,52
|
| |
VOE11700653
|
[REQ] |
Shim
|
TJ = 1,56
|
| |
VOE11700835
|
[REQ] |
Shim
|
TJ = 1,60
|
| |
VOE11701162
|
[REQ] |
Shim
|
TJ = 1,64
|
| |
VOE11700126
|
[REQ] |
Shim
|
TJ = 1,68
|
| |
VOE3094477
|
[REQ] |
Shim
|
TJ = 1,72
|
| |
VOE6213408
|
[REQ] |
Shim
|
TJ = 1,76
|
| |
VOE11701050
|
[REQ] |
Shim
|
TJ = 1,80
|
| |
VOE244808
|
[REQ] |
Shim
|
TJ = 1,86
|
| |
VOE6213409
|
[REQ] |
Shim
|
TJ = 1,88
|
| |
VOE244795
|
[REQ] |
Shim
|
TJ = 1,92
|
| |
VOE3094467
|
[REQ] |
Shim
|
TJ = 1,96
|
| 2. |
VOE244820
|
[1] |
Compression spring
|
|
| 3. |
VOE3094859
|
[1] |
Retainer
|
|
| 4. |
VOE1698513
|
[1] |
Washer
|
(244537)
|
| 5. |
VOE844339
|
[2] |
Pin
|
|
| 6. |
VOE244447
|
[2] |
Pin
|
|
| 7. |
VOE3092030
|
[1] |
Nut
|
|
| 8. |
VOE477886
|
[1] |
Nozzle
|
|
