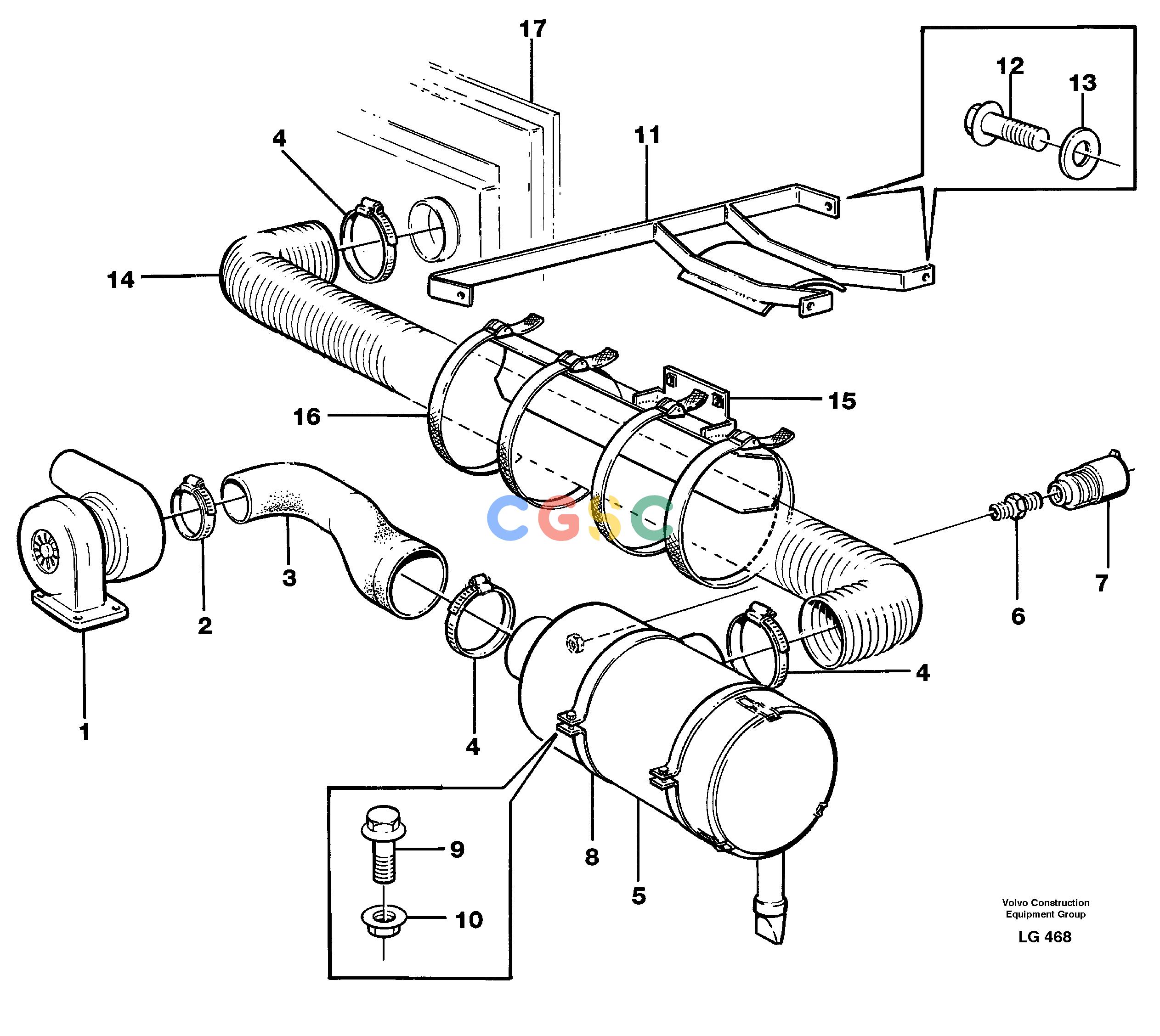

沃尔沃零件查询EC200 Inlet systemSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11033904
|
[1] |
Turbocharger
|
|
| 2. |
VOE943482
|
[1] |
Hose clamp
|
|
| 3. |
VOE14346135
|
[1] |
Hose
|
|
| 4. |
VOE943484
|
[3] |
Hose clamp
|
|
| 5. |
|
[1] |
Air cleaner
|
|
| 6. |
VOE191095
|
[1] |
Nipple
|
|
| 7. |
VOE842037
|
[1] |
Indicator
|
|
| 8. |
VOE14346045
|
[2] |
Tensioning band
|
|
| 9. |
VOE60113082
|
[2] |
Flange screw
|
|
| 10. |
VOE13945408
|
[2] |
Nut
|
|
| 11. |
VOE14346262
|
[1] |
Bracket
|
|
| 12. |
VOE60113082
|
[4] |
Flange screw
|
|
| 13. |
VOE13960141
|
[4] |
Washer
|
|
| 14. |
VOE14346138
|
[1] |
Hose
|
|
| 15. |
VOE14346264
|
[1] |
Bracket
|
|
| 16. |
VOE11104606
|
[4] |
Retaining strap
|
|
| 17. |
VOE14254405
|
[1] |
Hatch
|
|
