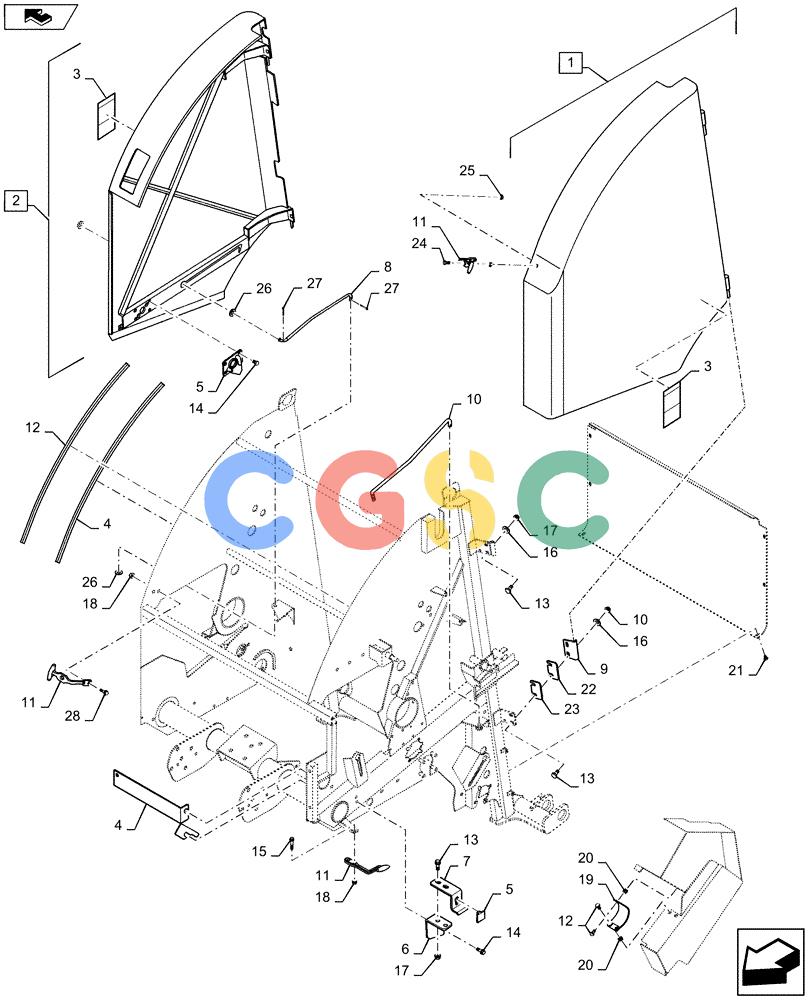

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (90.105.01) - SIDE DOORS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84289506
|
[1] |
DOOR
|
NH
LH, Includes: Ref. 3
|
| 2. |
84289511
|
[1] |
DOOR
|
NH
RH, Includes: Ref. 3
|
| 3. |
86631518
|
[2] |
DANGER DECAL
|
NH
|
| 4. |
84133194
|
[1] |
PROTECTION PLATE
|
NH
|
| 5. |
9617869
|
[2] |
BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk
|
NH
|
| 6. |
84133559
|
[2] |
STOP
|
NH
|
| 8. |
84133508
|
[1] |
ROD
|
NH
RH
|
| 9. |
84133414
|
[4] |
ROD
|
NH
|
| 10. |
84133507
|
[1] |
ROD
|
NH
LH
|
| 11. |
86000448
|
[4] |
LATCH
|
NH
|
| 12. |
84299028
|
[1] |
SEAL
|
NH
100"
|
| 13. |
308761
|
[12] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 14. |
9804258
|
[12] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 15. |
9706703
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 16. |
322358
|
[24] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 17. |
9804277
|
[12] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 18. |
86619800
|
[8] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 19. |
84133493
|
[1] |
RUBBER STRIP
|
NH
|
| 20. |
86610198
|
[4] |
INSERT,M6 x 1
|
NH
|
| 21. |
86507486
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 22. |
84133495
|
[1/AR] |
SHIM
|
NH
|
| 23. |
84133496
|
[1/AR] |
SHIM
|
NH
|
| 24. |
43117
|
[4] |
SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8
|
NH
Superseded by part number: 87317695
|
| 25. |
9804276
|
[4] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 26. |
87364
|
[6] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
| 27. |
80756
|
[6] |
COTTER PIN,1/8" x 3/4"
|
NH
|
| 28. |
9804257
|
[4] |
FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd
|
NH
|
