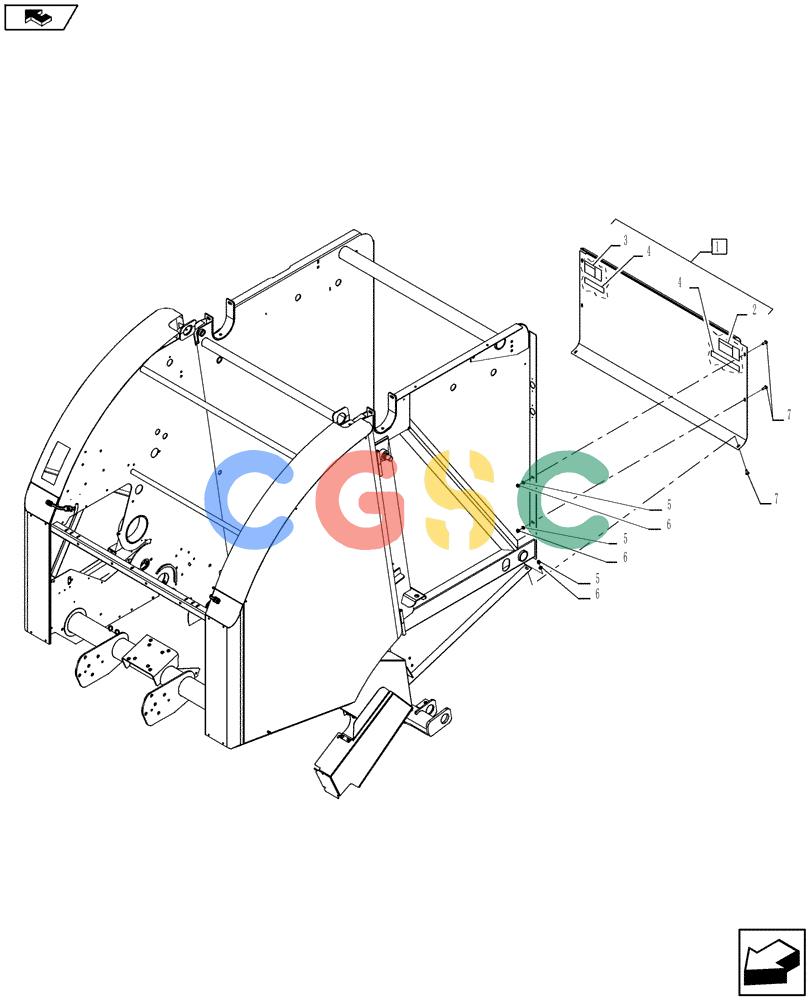

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (90.105.02) - REAR SHIELD Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84289524
|
[1] |
SHIELD
|
NH
Rear, Includes: Ref. 2 - 4
|
| 2. |
86631519
|
[1] |
DANGER DECAL
|
NH
|
| 3. |
86631516
|
[1] |
WARNING DECAL
|
NH
|
| 4. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
| 5. |
322358
|
[6] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 6. |
9804277
|
[6] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 7. |
86507486
|
[6] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
