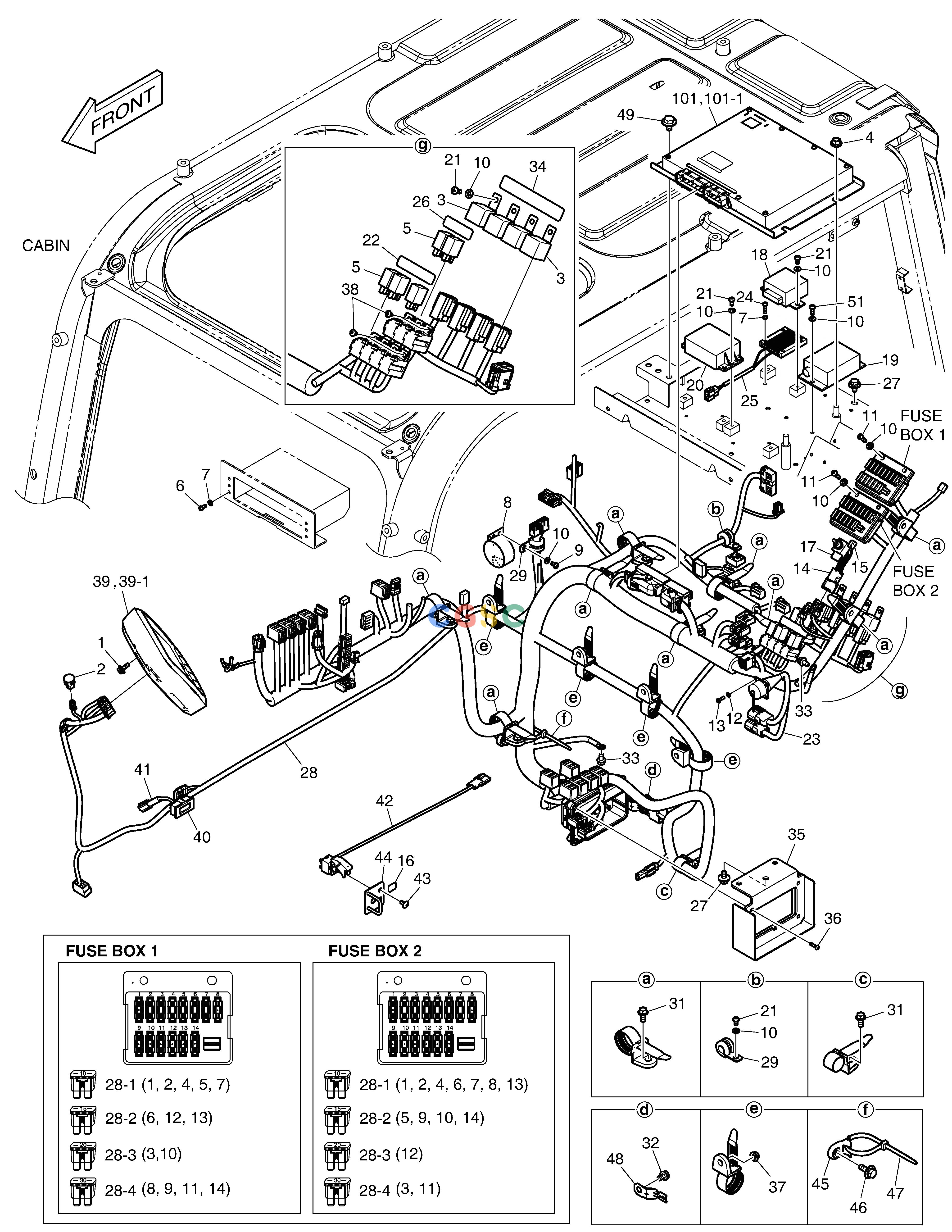

斗山零件查询ELECTRIC PARTS - CABIN DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01861C
|
[-] |
|
|
| 1. |
DS0025056
|
[4] |
BOLT
|
|
| 10. |
S5102303
|
[15] |
. WASHER
|
|
| 101. |
300611-00846A
|
[1] |
|
|
| 101-1. |
970306-00133
|
[1] |
|
|
| 11. |
S3450983
|
[4] |
SCREW
|
|
| 12. |
S5100003
|
[4] |
WASHER
|
|
| 13. |
S3450343
|
[4] |
SCREW
|
|
| 14. |
549-00090A
|
[1] |
SWITCH,TOGGLE
|
|
| 15. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 16. |
K1004425
|
[1] |
PLATE;NAME
|
|
| 17. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 18. |
300611-00271A
|
[1] |
CONTROLLER,WIPER
|
|
| 19. |
300612-00001B
|
[1] |
|
|
| 2. |
547-00023
|
[1] |
SENSOR
|
|
| 20. |
2543-9015
|
[1] |
CONTROLLER;STARTER
|
|
| 21. |
S3450953
|
[7] |
SCREW
|
|
| 22. |
950209-05314A
|
[1] |
|
|
| 23. |
310207-00708
|
[1] |
HARNESS
|
|
| 24. |
S3450863
|
[2] |
SCREW
|
|
| 25. |
545-00011
|
[1] |
RESISTOR,AUXILIARY
|
|
| 26. |
950209-05315A
|
[1] |
|
|
| 27. |
DS0025033
|
[5] |
BOLT
|
|
| 28. |
310207-04206
|
[1] |
|
|
| 28-1. |
2527-1016
|
[12] |
FUSE,BLADE 10A
|
|
| 28-2. |
2527-1017
|
[7] |
FUSE,BLADE 15A
|
|
| 28-3. |
2527-1018
|
[3] |
FUSE,BLADE 20A
|
|
| 28-4. |
2527-1025
|
[6] |
FUSE,BLADE 30A
|
|
| 29. |
124-00208D2
|
[2] |
CLAMP
|
|
| 3. |
301202-00042
|
[3] |
RELAY
|
|
| 31. |
120106-00596
|
[10] |
BOLT
|
|
| 32. |
K1001029
|
[1] |
BOLT
|
|
| 33. |
120106-00702
|
[2] |
BOLT
|
|
| 34. |
950209-05638
|
[1] |
|
|
| 35. |
110433-00377
|
[1] |
|
|
| 36. |
S3641563
|
[4] |
SCREW
|
|
| 37. |
2121-1305
|
[4] |
NUT
|
|
| 38. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 39. |
300426-00164A
|
[1] |
|
|
| 39. |
300426-00164B
|
[1] |
|
|
| 39-1. |
970304-00014
|
[1] |
|
|
| 39-1. |
970304-00014A
|
[1] |
|
|
| 4. |
D913109
|
[2] |
|
|
| 40. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 41. |
530-00434B
|
[1] |
HARNESS,HOUR METER
|
|
| 42. |
301405-00257
|
[1] |
|
|
| 43. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 44. |
250201-02217A
|
[1] |
|
|
| 45. |
110420-00330
|
[1] |
BRACKET
|
|
| 46. |
DS0025049
|
[1] |
BOLT M8x1.25x25
|
|
| 47. |
310101-00035
|
[1] |
TIE,CABLE
|
|
| 48. |
110406-02760A
|
[1] |
BRACKET
|
|
| 49. |
DS0025014
|
[2] |
BOLT
|
|
| 5. |
K1053326
|
[6] |
RELAY
|
|
| 51. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 6. |
S3450833
|
[4] |
BOLT
|
|
| 7. |
S5100203
|
[6] |
WASHER
|
|
| 8. |
2516-1116
|
[1] |
BUZZER
|
|
| 9. |
S3450943
|
[2] |
SCREW
|
|
