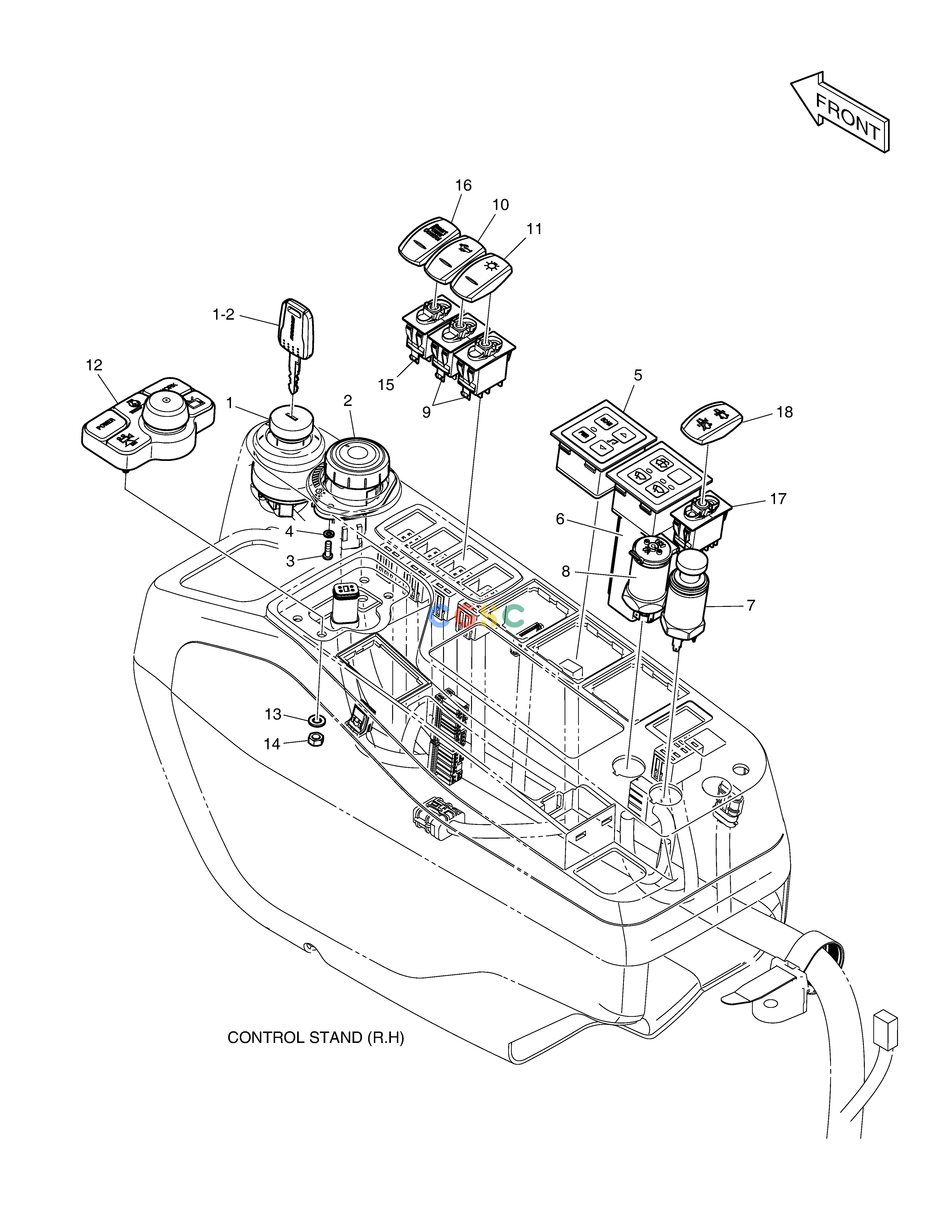

斗山零件查询ELECTRIC PARTS - CONTROL STAND DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02784A
|
[-] |
|
|
| 1. |
301419-00229
|
[1] |
|
|
| 1-2. |
110702-00151
|
[1] |
|
|
| 10. |
301401-00008
|
[1] |
|
|
| 11. |
K1056625
|
[1] |
|
|
| 12. |
410113-00072
|
[1] |
|
|
| 13. |
S5010313
|
[4] |
WASHER
|
|
| 14. |
S4012303
|
[4] |
NUT
|
|
| 15. |
K1056448
|
[1] |
SWITCH,DETENT SET
|
|
| 16. |
301401-00036
|
[1] |
|
|
| 17. |
301423-00002
|
[1] |
|
|
| 18. |
K1056640
|
[1] |
|
|
| 2. |
300661-00004
|
[1] |
DIAL,ENGINE CONTROL
|
|
| 3. |
S3450583
|
[2] |
SCREW
|
|
| 4. |
S5100103
|
[2] |
WASHER
|
|
| 5. |
543-00096
|
[1] |
RADIO CONTROL PANEL ASSY
|
|
| 6. |
543-00095
|
[1] |
PANEL ASS`Y,WIPER CONTROL
|
|
| 7. |
300730-00006
|
[1] |
LIGHTER,CIGAR
|
|
| 8. |
K1053423
|
[1] |
|
|
| 9. |
549-00103
|
[2] |
SWITCH
|
|
