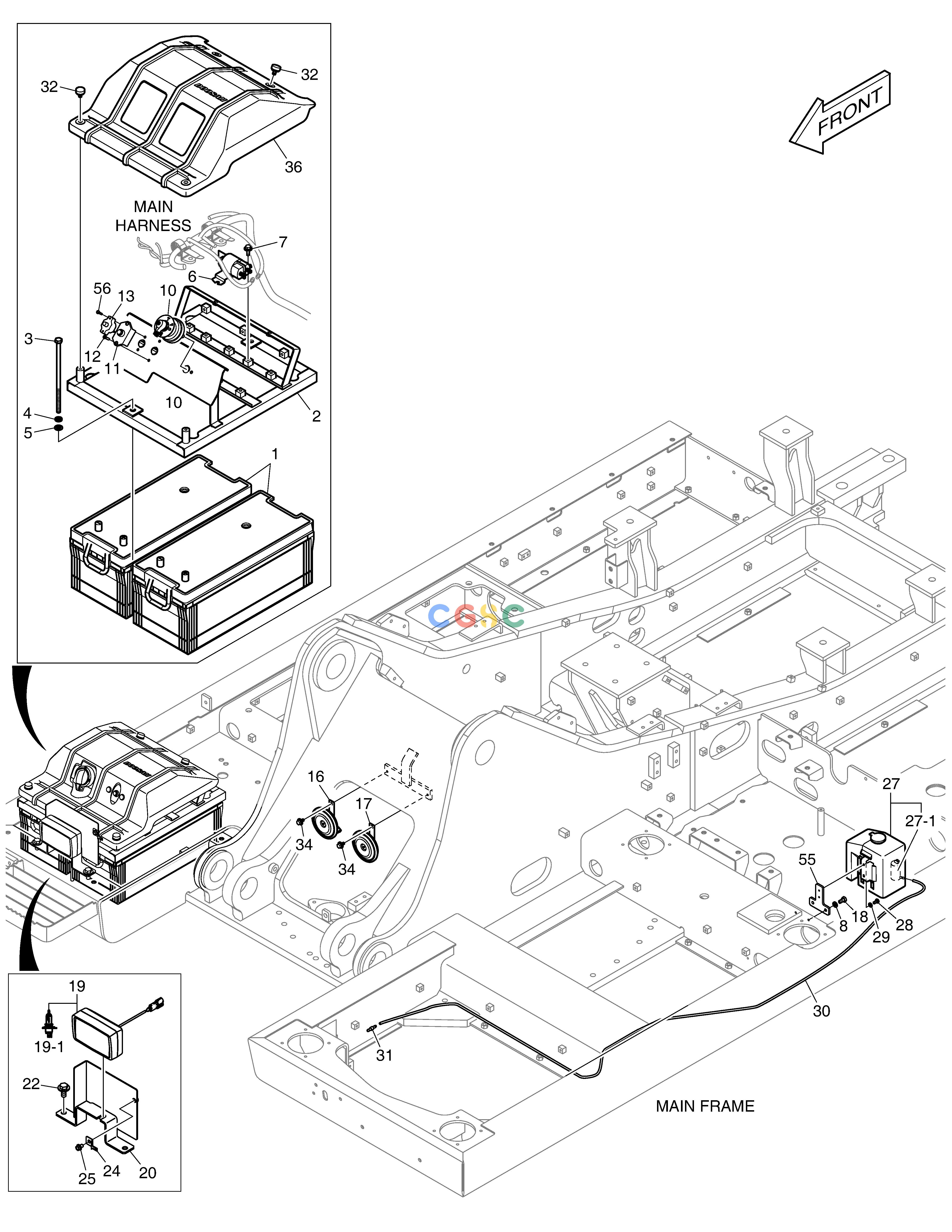

斗山零件查询ELECTRIC PARTS - RELATED DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
553 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02944
|
[-] |
|
|
| 1. |
2506-6008
|
[2] |
BATTERY
|
|
| 10. |
K1057605
|
[1] |
|
301405-00274
|
| 10. |
301405-00274
|
[1] |
SWITCH,BATTERY
|
|
| 11. |
300708-00016
|
[1] |
|
|
| 12. |
K1056613
|
[2] |
SCREW
|
|
| 13. |
300708-00341
|
[1] |
|
|
| 16. |
300726-00002
|
[1] |
HORN,HIGH
|
|
| 17. |
300726-00003
|
[1] |
HORN,LOW
|
|
| 18. |
S0508666
|
[2] |
BOLT
|
|
| 19. |
K1055454
|
[1] |
|
|
| 19-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 2. |
110406-04040
|
[1] |
|
|
| 20. |
110406-03284A
|
[1] |
|
|
| 22. |
DS0025025
|
[2] |
BOLT
|
|
| 24. |
2197-1661
|
[1] |
BRACKET
|
|
| 25. |
K1001029
|
[1] |
BOLT
|
|
| 27. |
K1054553
|
[1] |
TANK,WASHER
|
|
| 27-1. |
K9009874
|
[1] |
. MOTOR,RESERVE TANK
|
|
| 28. |
S0504453
|
[2] |
BOLT
|
|
| 29. |
S5102303
|
[2] |
. WASHER
|
|
| 3. |
2120-1036D12
|
[2] |
BOLT M10X1.5X240
|
|
| 30. |
4185-1777
|
[1] |
HOSE;WATER
|
|
| 31. |
2415-1018
|
[1] |
ADAPTER
|
|
| 32. |
K1003427
|
[4] |
BOLT
|
|
| 34. |
DS0025033
|
[2] |
BOLT
|
|
| 36. |
110508-24240
|
[1] |
|
|
| 4. |
S5102603
|
[2] |
. WASHER
|
|
| 5. |
S5010613
|
[2] |
WASHER
|
|
| 55. |
110406-03356
|
[1] |
|
|
| 56. |
2120-1354
|
[2] |
SCREW
|
|
| 6. |
301202-00153
|
[1] |
RELAY,BATTERY
|
|
| 7. |
DS0025049
|
[2] |
BOLT M8x1.25x25
|
|
| 8. |
S5102503
|
[2] |
. WASHER
|
|
