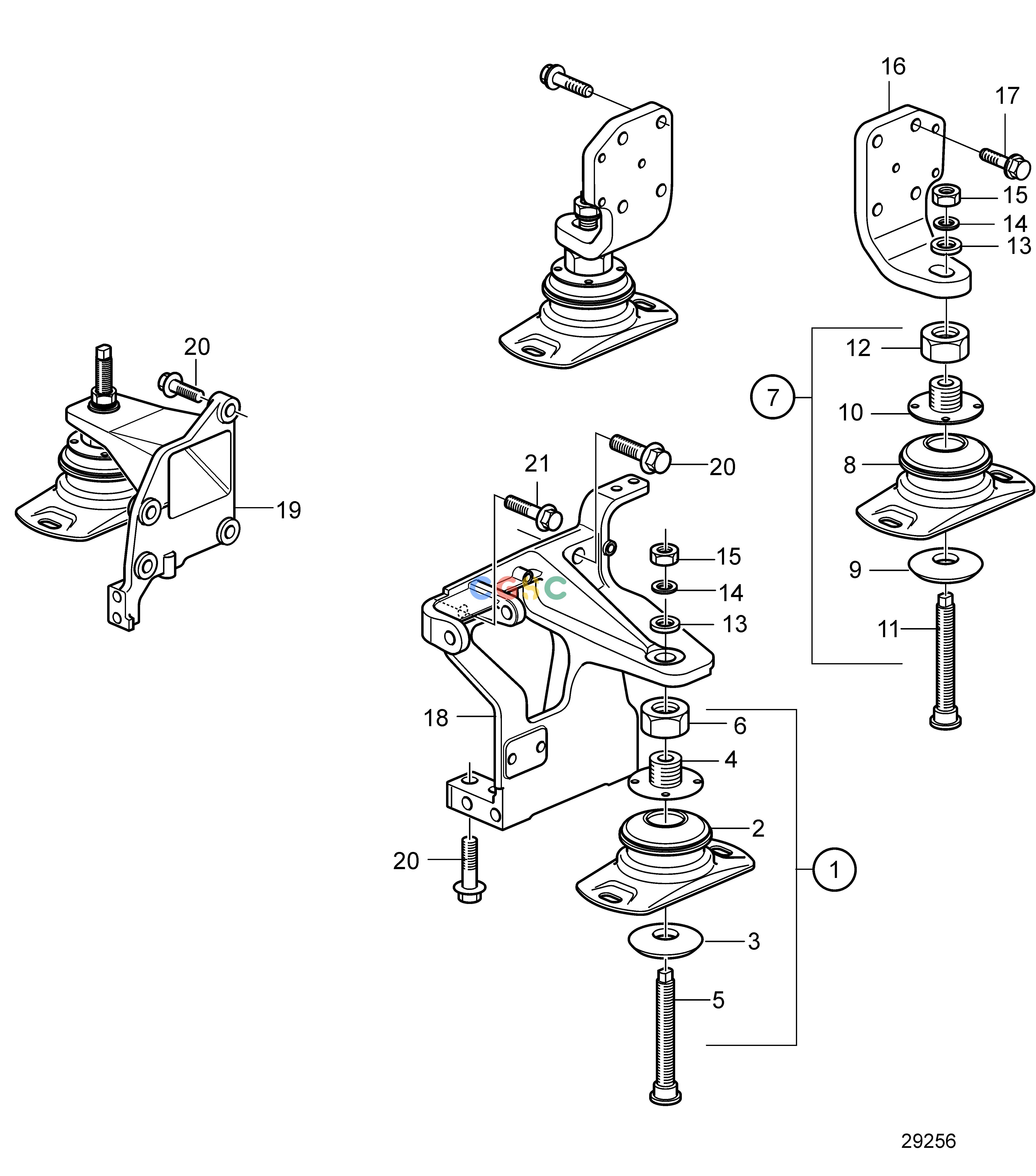

沃尔沃零件查询D11B1-A MP; D11B2-A MPEngineEngine mounting IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21187581
|
[2] |
Rubber cushion
|
Front
|
| 2. |
|
|
|
|
| 3. |
21430421
|
[1] |
Washer
|
|
| 4. |
3593858
|
[1] |
Washer
|
|
| 5. |
3593856
|
[1] |
Adjusting screw
|
|
| 6. |
3594127
|
[1] |
Nut
|
|
| 7. |
21187536
|
[2] |
Rubber cushion
|
Rear
|
| 8. |
|
|
|
|
| 9. |
21430421
|
[1] |
Washer
|
|
| 10. |
3593858
|
[1] |
Washer
|
|
| 11. |
3593856
|
[1] |
Adjusting screw
|
|
| 12. |
3594127
|
[1] |
Nut
|
|
| 13. |
60113332
|
[4] |
Washer
|
|
| 14. |
990697
|
[4] |
Lock washer
|
|
| 15. |
990973
|
[4] |
Hexagon nut
|
|
| 16. |
21211100
|
[2] |
Anchorage
|
|
| 17. |
984855
|
[8] |
Flange screw
|
|
| 18. |
3807514
|
[1] |
Engine anchorage
|
|
| 19. |
21173934
|
[1] |
Engine bracket
|
|
| 20. |
975126
|
[8] |
Flange screw
|
|
| 21. |
969445
|
[1] |
Flange screw
|
|
