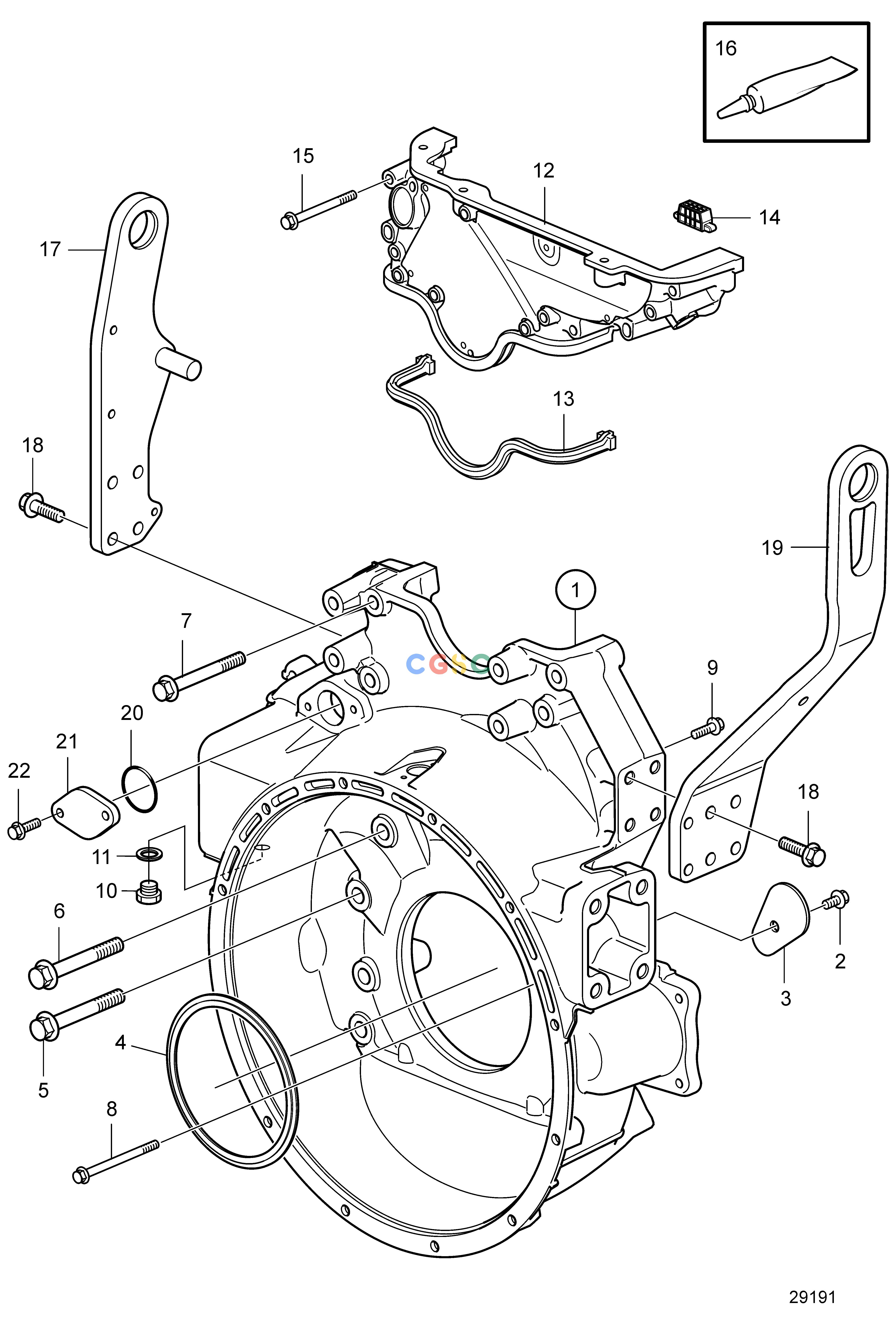

沃尔沃零件查询D11B1-A MP; D11B2-A MPEngineFlywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
462 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21393440
|
[1] |
Flywheel housing
|
Replaced by 22487118
|
| 1. |
22487118
|
[1] |
Flywheel housing
|
|
| 2. |
984733
|
[1] |
Flange screw
|
|
| 3. |
3849378
|
[1] |
Cover plate
|
|
| 4. |
8148259
|
[1] |
Crankshaft seal
|
SN-7011385240
|
| 4. |
22086413
|
[1] |
Crankshaft seal
|
SN7011385241-
|
| 5. |
984865
|
[1] |
Flange screw
|
L=120mm
|
| 6. |
984863
|
[6] |
Flange screw
|
L=100mm
|
| 7. |
984820
|
[4] |
Flange screw
|
L=100mm
|
| 8. |
975199
|
[2] |
Flange screw
|
L=35mm
|
| 9. |
984734
|
[6] |
Flange screw
|
L=20mm
|
| 10. |
966144
|
[1] |
Plug
|
|
| 11. |
11998
|
[1] |
Gasket
|
|
| 12. |
20764595
|
[1] |
Timing gear cover
|
|
| 13. |
20817742
|
[1] |
Gasket
|
|
| 14. |
21185132
|
[2] |
Seal
|
|
| 15. |
994389
|
[5] |
Flange screw
|
L=85mm
|
| 16. |
1161277
|
[1] |
Sealant
|
20g
|
| 17. |
|
|
|
|
| 18. |
984726
|
[1] |
Flange screw
|
|
| 19. |
|
|
|
|
| 20. |
948610
|
[1] |
O-ring
|
|
| 21. |
3595044
|
[1] |
Cover
|
|
| 22. |
984735
|
[2] |
Flange screw
|
|
