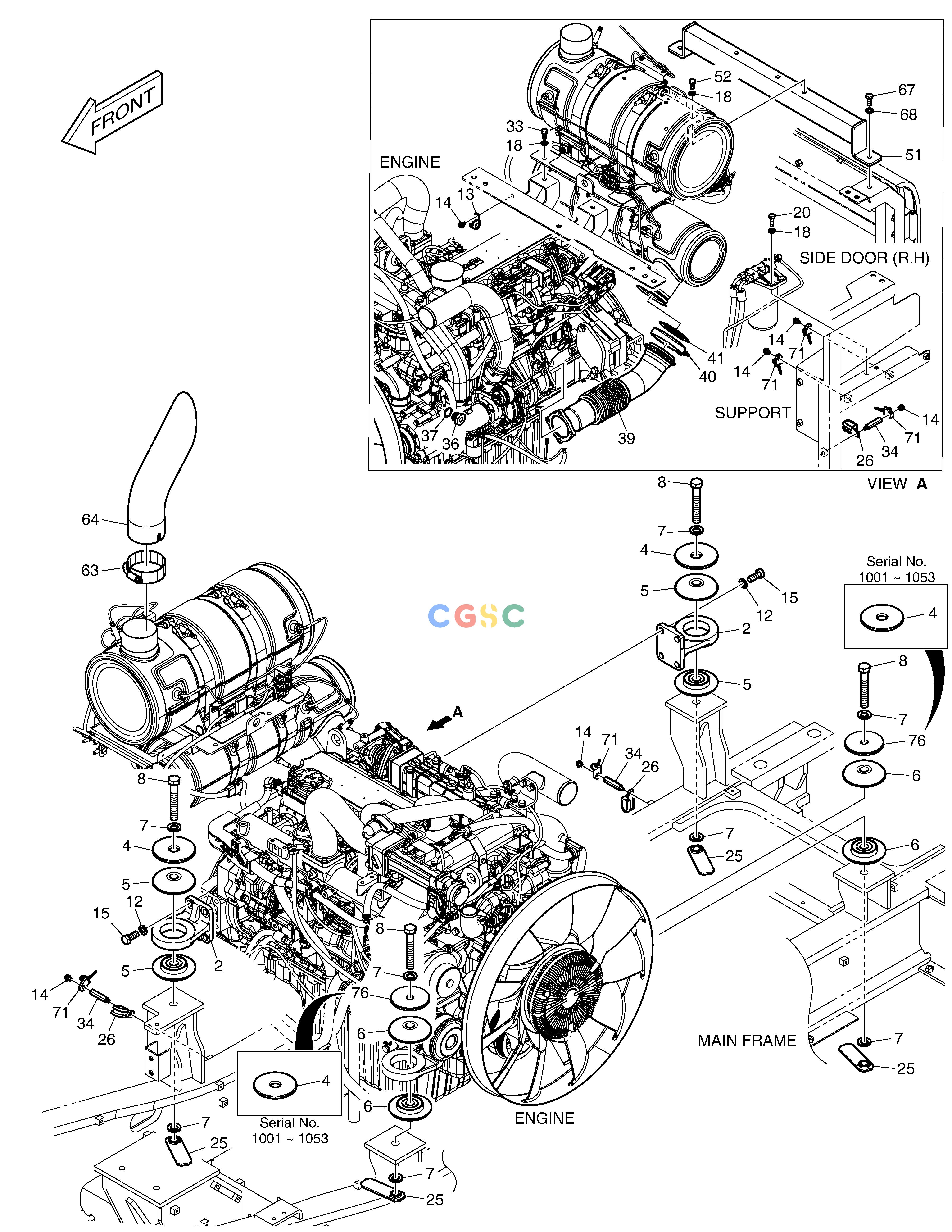

斗山零件查询ENGINE MOUNTING(1) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00975
|
[-] |
|
|
| 12. |
S5102906
|
[8] |
WASHER;SPRING
|
|
| 13. |
124-00208D2
|
[1] |
CLAMP
|
|
| 14. |
K1001029
|
[6] |
BOLT
|
|
| 15. |
S0521566
|
[8] |
BOLT
|
|
| 18. |
S5010613
|
[7] |
WASHER
|
|
| 2. |
110427-00215A
|
[2] |
|
|
| 20. |
S0512366
|
[2] |
BOLT
|
|
| 25. |
110958-03087
|
[4] |
|
|
| 26. |
124-00209D1
|
[3] |
CLIP
|
|
| 33. |
S0512066
|
[2] |
. BOLT
|
|
| 34. |
DS0026009
|
[3] |
|
|
| 36. |
430201-00620B
|
[1] |
|
|
| 37. |
S8180481
|
[1] |
RING;SEAL
|
|
| 39. |
420203-00505
|
[1] |
|
|
| 4. |
2114-1929
|
[4] |
WASHER
|
|
| 4. |
2114-1929
|
[2] |
WASHER
|
|
| 40. |
120209-00007
|
[1] |
|
|
| 41. |
400602-00245
|
[1] |
|
|
| 5. |
161-00548
|
[4] |
RUBBER
|
|
| 51. |
110958-02762
|
[1] |
|
|
| 52. |
S0512166
|
[3] |
BOLT
|
|
| 6. |
161-00550
|
[4] |
RUBBER;ENGINE MOUNTING
|
|
| 63. |
120208-00258
|
[1] |
|
|
| 64. |
420210-01711B
|
[1] |
|
|
| 67. |
S0515266
|
[2] |
BOLT
|
|
| 68. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 7. |
2114-9012A
|
[8] |
WASHER
|
|
| 71. |
120402-00440
|
[5] |
CLIP
|
|
| 76. |
120810-00310
|
[2] |
|
|
| 8. |
S0771466
|
[4] |
BOLT
|
|
