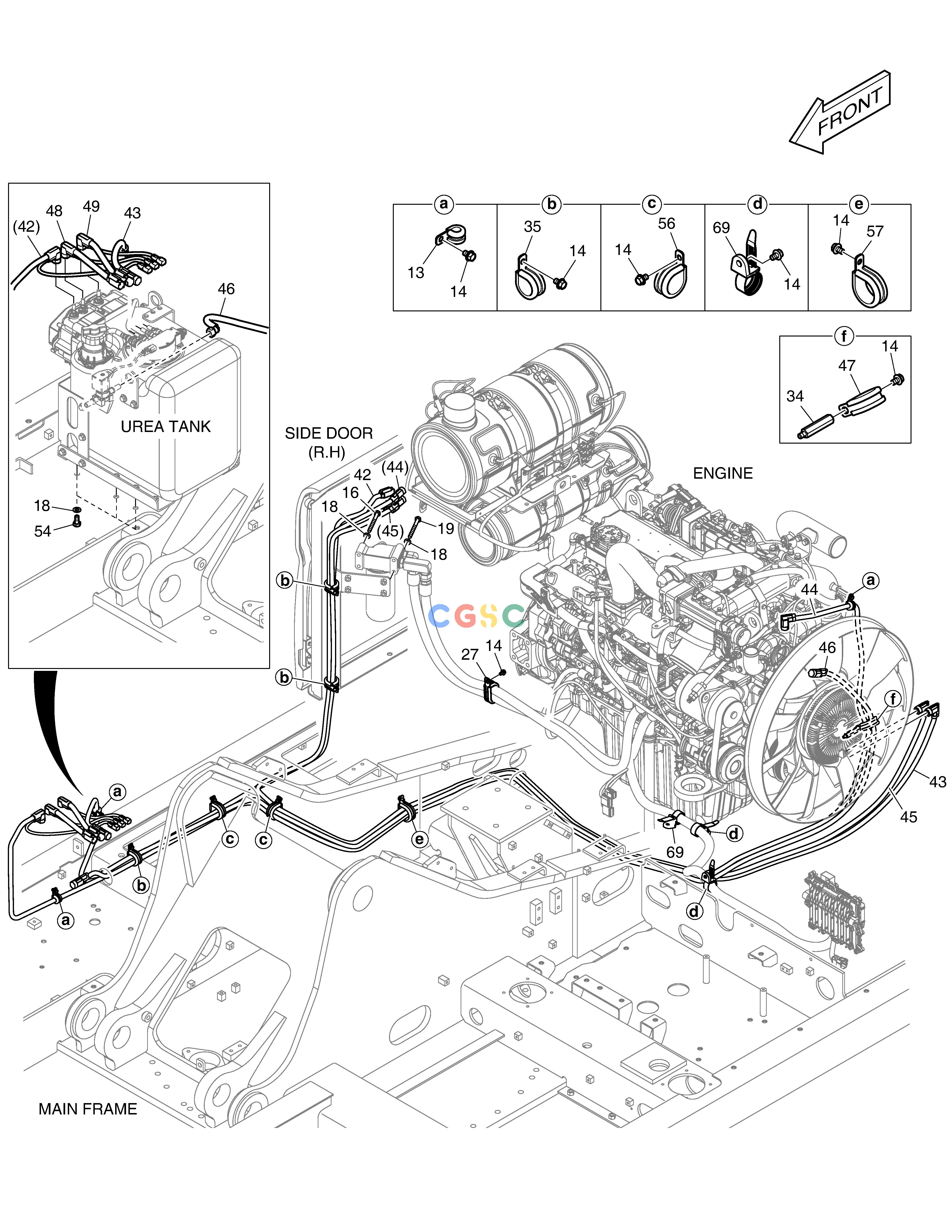

斗山零件查询ENGINE MOUNTING(2) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00975
|
[-] |
|
|
| 13. |
124-00208D2
|
[3] |
CLAMP
|
|
| 14. |
K1001029
|
[13] |
BOLT
|
|
| 16. |
S0559066
|
[2] |
BOLT
|
|
| 18. |
S5010613
|
[10] |
WASHER
|
|
| 19. |
S0559566
|
[2] |
BOLT
|
|
| 27. |
124-00209D7
|
[1] |
CLIP
|
|
| 34. |
DS0026009
|
[1] |
|
|
| 35. |
124-00208D5
|
[3] |
CLIP
|
|
| 42. |
DS2147004
|
[1] |
|
|
| 43. |
DS2146015
|
[1] |
|
|
| 44. |
DS2146036
|
[1] |
|
|
| 45. |
DS2146017
|
[1] |
|
|
| 46. |
DS2148011
|
[1] |
|
|
| 47. |
124-00208D10
|
[1] |
CLIP
|
|
| 48. |
DS2147012
|
[1] |
|
|
| 49. |
DS2147011
|
[1] |
|
|
| 54. |
S0511966
|
[6] |
BOLT
|
|
| 56. |
124-00208D6
|
[2] |
CLIP
|
|
| 57. |
124-00208D7
|
[1] |
CLIP
|
|
| 69. |
120402-00439
|
[2] |
CLIP
|
|
