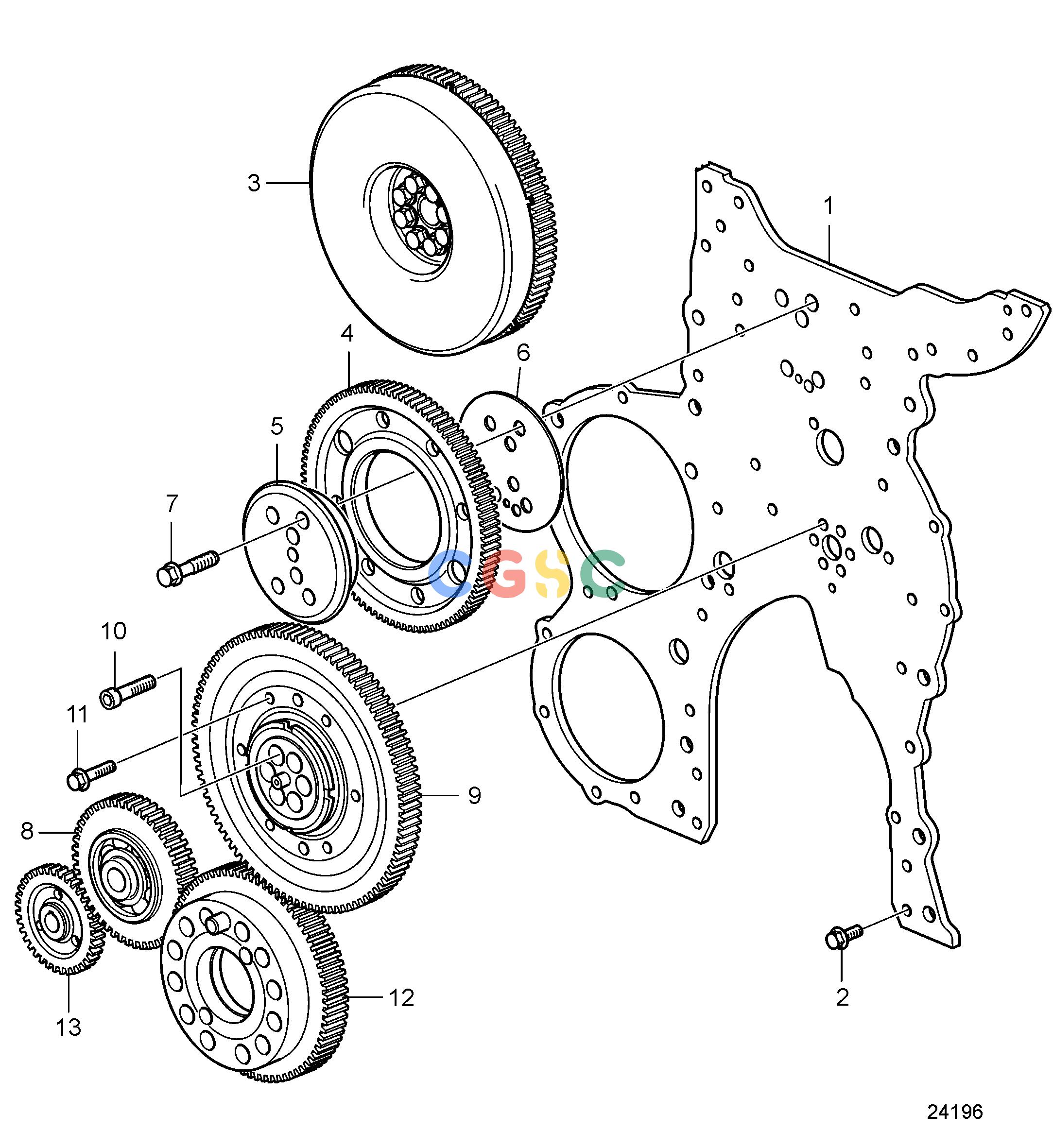

沃尔沃零件查询D11B1-A MP; D11B2-A MPEngineTiming GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21890407
|
[1] |
Timing gear plate
|
|
| 2. |
994445
|
[24] |
Flange screw
|
|
| 3. |
47704140_008
|
|
Gear, camshaft
|
|
| 4. |
20849147
|
[1] |
Idler gear, camshaft
|
|
| 5. |
21012985
|
[1] |
Hub
|
|
| 6. |
8131850
|
[1] |
Thrust washer
|
|
| 7. |
21015266
|
[5] |
Flange screw
|
|
| 8. |
22356360
|
[1] |
Idler gear, power steering pump
|
|
| 9. |
21826612
|
[1] |
Idler gear
|
|
| 10. |
20483919
|
[6] |
Hex. socket screw
|
|
| 11. |
21344774
|
[6] |
Flange screw
|
|
| 12. |
21663213
|
[1] |
Gear
|
|
| 13. |
8148198
|
[1] |
Gear
|
|
