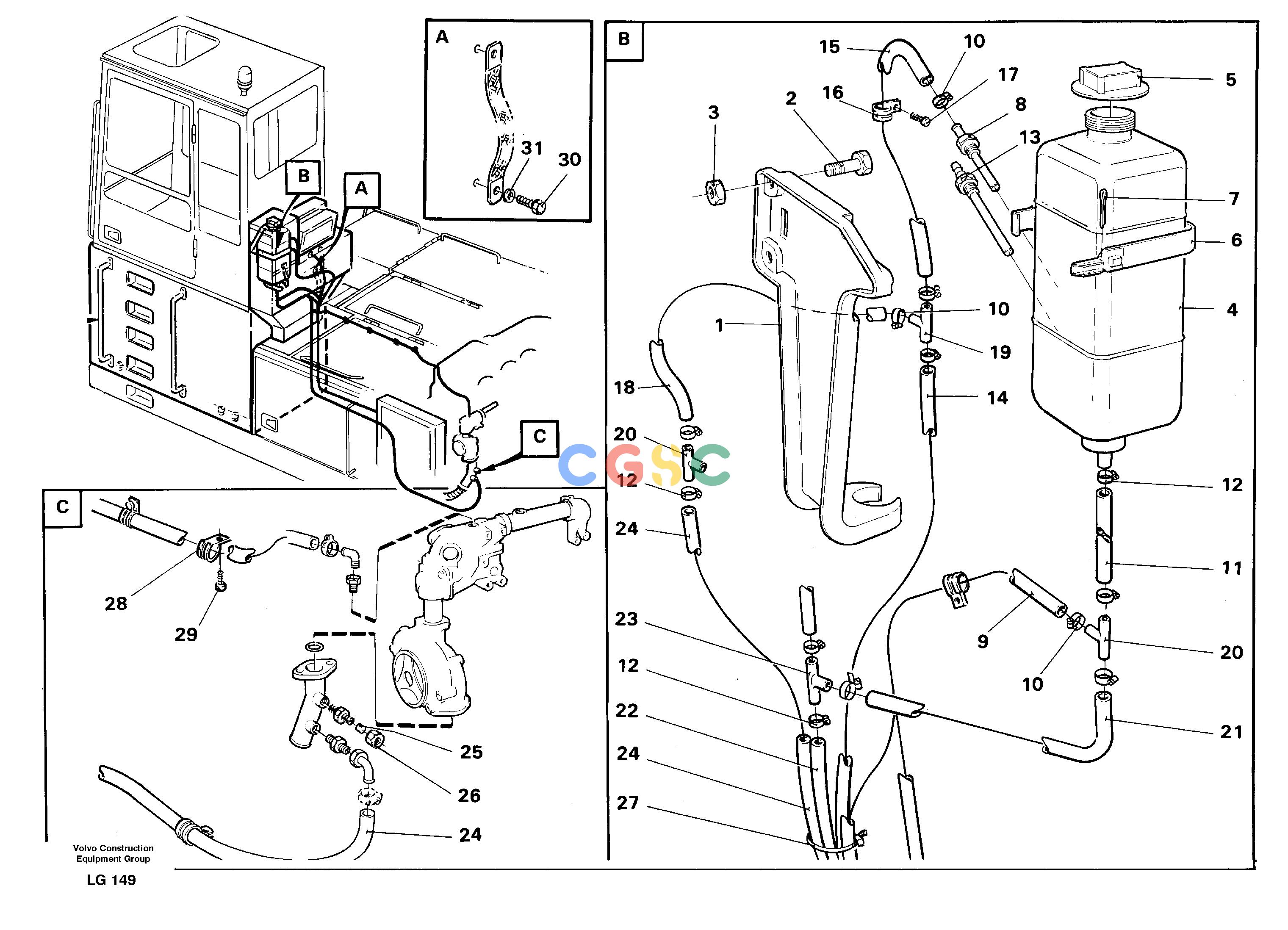

沃尔沃零件查询EC200 Expansion tank, Cab elevation 1220mm.SER NO 2760- NoneNone14258010Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
530 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14264551
|
[1] |
Bracket
|
|
| 2. |
VOE14264567
|
[2] |
Bolt
|
|
| 3. |
VOE13971089
|
[2] |
Lock nut
|
|
| 4. |
VOE11110208
|
[1] |
Expansion tank
|
|
| 5. |
VOE1542591
|
[1] |
Cap
|
|
| 6. |
VOE4804563
|
[2] |
Tensioning band
|
|
| 7. |
VOE13963104
|
[2] |
Lock nut
|
|
| 8. |
VOE11031743
|
[1] |
Nipple
|
|
| 9. |
VOE943366
|
[REQ] |
Hose
|
L=3000 mm
|
| 10. |
VOE943470
|
[8] |
Hose clamp
|
|
| 11. |
VOE14014148
|
[REQ] |
Oil hose
|
L= 80 mm
|
| 12. |
VOE13943472
|
[8] |
Hose clamp
|
|
| 13. |
VOE11702408
|
[1] |
Level indicator
|
|
| 14. |
VOE943366
|
[REQ] |
Hose
|
L= 3000 mm
|
| 15. |
VOE943366
|
[REQ] |
Hose
|
L= 375
|
| 16. |
VOE952627
|
[1] |
Clamp
|
|
| 17. |
VOE14102805
|
[1] |
Screw
|
|
| 18. |
VOE943366
|
[REQ] |
Hose
|
L= 600 mm
|
| 19. |
VOE419446
|
[1] |
Tube
|
|
| 20. |
VOE14264923
|
[2] |
Hose connection
|
|
| 21. |
VOE14014148
|
[REQ] |
Oil hose
|
L= 700
|
| 22. |
VOE14014148
|
[REQ] |
Oil hose
|
L= 4700 mm
|
| 23. |
VOE14212575
|
[1] |
T-connection
|
|
| 24. |
VOE14014148
|
[REQ] |
Oil hose
|
L= 4700 mm
|
| 25. |
VOE14012452
|
[1] |
Nut
|
|
| 26. |
VOE14012452
|
[1] |
Nut
|
|
| 27. |
VOE4881440
|
[6] |
Cable tie
|
|
| 28. |
VOE952633
|
[5] |
Clamp
|
|
| 29. |
VOE955269
|
[5] |
Hexagon screw
|
|
| 30. |
VOE13970944
|
[1] |
Hexagon screw
|
|
| 31. |
VOE976945
|
[1] |
Washer
|
|
