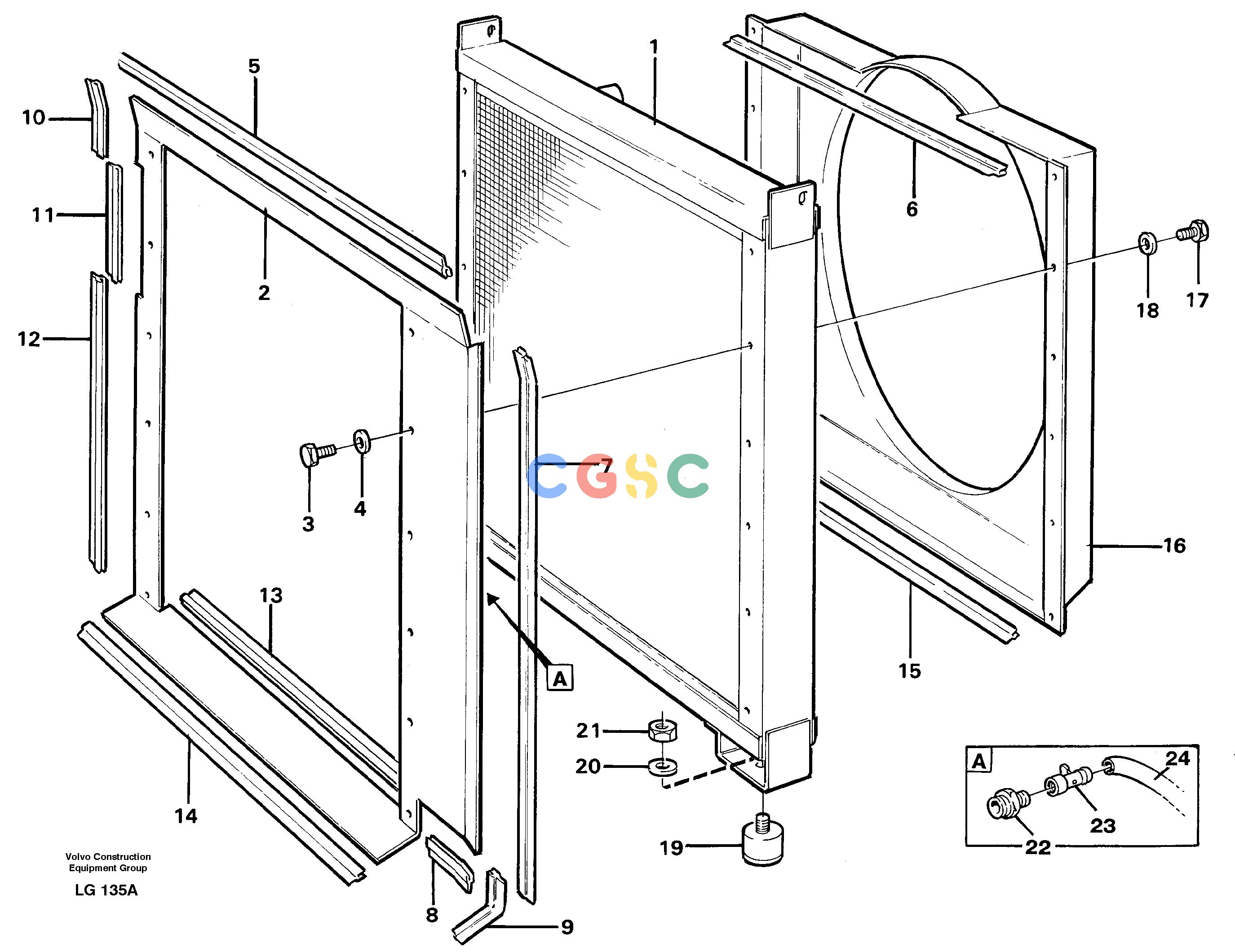

沃尔沃零件查询EC200 RadiatorSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
148 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14254659
|
[1] |
Radiator
|
|
| 2. |
VOE14254718
|
[1] |
Cover plate
|
|
| 3. |
VOE955269
|
[12] |
Hexagon screw
|
(14102806)
|
| 4. |
VOE60110304
|
[12] |
Washer
|
|
| 5. |
VOE4880191
|
[1] |
Rubber moulding
|
L = 997
|
| 6. |
VOE4880191
|
[1] |
Rubber moulding
|
|
| 7. |
|
[1] |
Sealing strip
|
L = 748
|
| 8. |
|
[1] |
Clamping list
|
L = 135
|
| 9. |
|
[1] |
Sealing strip
|
L = 140
|
| 10. |
|
[1] |
Sealing strip
|
L = 126
|
| 11. |
|
[1] |
Sealing strip
|
L = 210
|
| 12. |
|
[1] |
Clamping list
|
L = 560
|
| 13. |
VOE14250789
|
[1] |
Clamping strip
|
|
| 14. |
|
[1] |
Clamping list
|
L = 840
|
| 15. |
VOE4880191
|
[1] |
Rubber moulding
|
L = 763
|
| 16. |
VOE14254700
|
[1] |
Fan shroud
|
|
| 17. |
VOE955269
|
[12] |
Hexagon screw
|
(14102806)
|
| 18. |
VOE60110304
|
[12] |
Washer
|
|
| 19. |
VOE14254221
|
[4] |
Rubber cushion
|
|
| 20. |
VOE13930908
|
[4] |
Washer
|
|
| 21. |
VOE13971072
|
[4] |
Hexagon nut
|
(14015042)
|
| 22. |
VOE14012514
|
[1] |
Rdc Bushing
|
|
| 23. |
VOE997641
|
[1] |
Shut-off Cock
|
|
| 24. |
VOE944585
|
[1] |
Hose
|
L= 650MM
|
