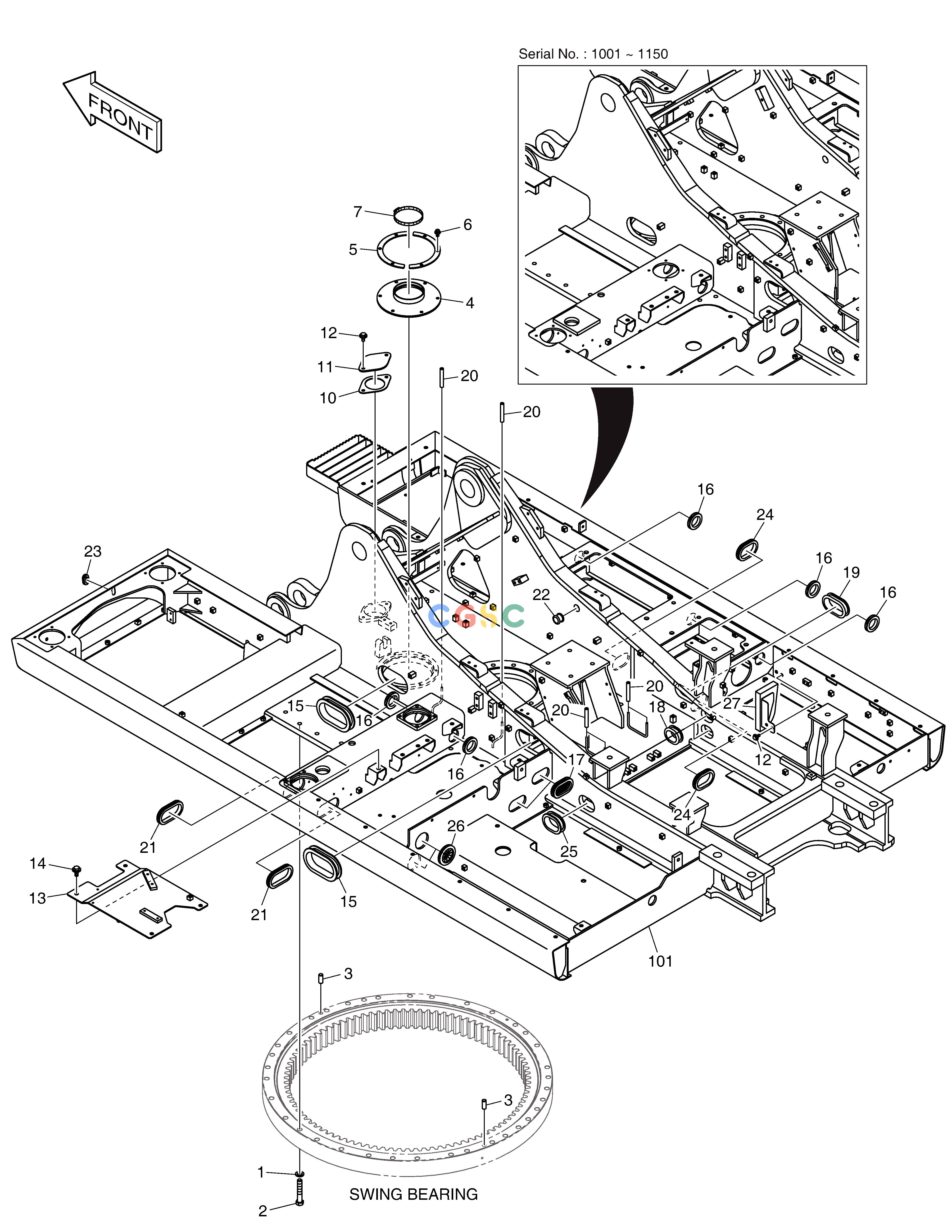

斗山零件查询MAIN FRAME DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
440 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160620-00439
|
[-] |
|
|
| 1. |
2114-9012A
|
[36] |
WASHER
|
|
| 10. |
180-00463
|
[1] |
PACKING
|
|
| 101. |
160620-00441E
|
[1] |
|
|
| 101. |
160620-00441H
|
[1] |
|
160620-00441K
|
| 101. |
160620-00441K
|
[1] |
|
|
| 101. |
160620-00441L
|
[1] |
|
|
| 101. |
160620-00441M
|
[1] |
|
|
| 101. |
160620-00441N
|
[1] |
|
160620-00441P
|
| 101. |
160620-00441P
|
[1] |
|
|
| 11. |
110508-18743
|
[1] |
COVER,GREASE
|
|
| 12. |
DS0025023
|
[2] |
BOLT
|
|
| 12. |
DS0025023
|
[4] |
BOLT
|
|
| 13. |
110508-14305A
|
[1] |
|
|
| 14. |
DS0025025
|
[4] |
BOLT
|
|
| 15. |
2160-1201D11
|
[2] |
BUSHING;RUBBER
|
|
| 16. |
DS7603003
|
[5] |
BUSHING;RUBBER
|
|
| 17. |
DS7605001
|
[2] |
|
|
| 18. |
DS7601062
|
[2] |
|
|
| 19. |
DS7601061
|
[1] |
|
|
| 2. |
S0571266
|
[36] |
BOLT
|
|
| 20. |
DS2081053
|
[6] |
HOSE
|
|
| 21. |
DS7601020
|
[2] |
BUSHING,RUBBER
|
|
| 22. |
DS7603072
|
[1] |
|
|
| 23. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 24. |
DS7601084
|
[2] |
GUIDE,RUBBER
|
|
| 25. |
DS7601059
|
[1] |
|
|
| 26. |
DS7606001
|
[2] |
|
|
| 27. |
110502-01458
|
[1] |
|
|
| 3. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
| 4. |
160-00068A
|
[1] |
COVER,RUBBER
|
|
| 5. |
250201-03340
|
[2] |
|
|
| 6. |
K1049858
|
[6] |
BOLT
|
|
| 7. |
S8470165
|
[1] |
CLAMP
|
|
