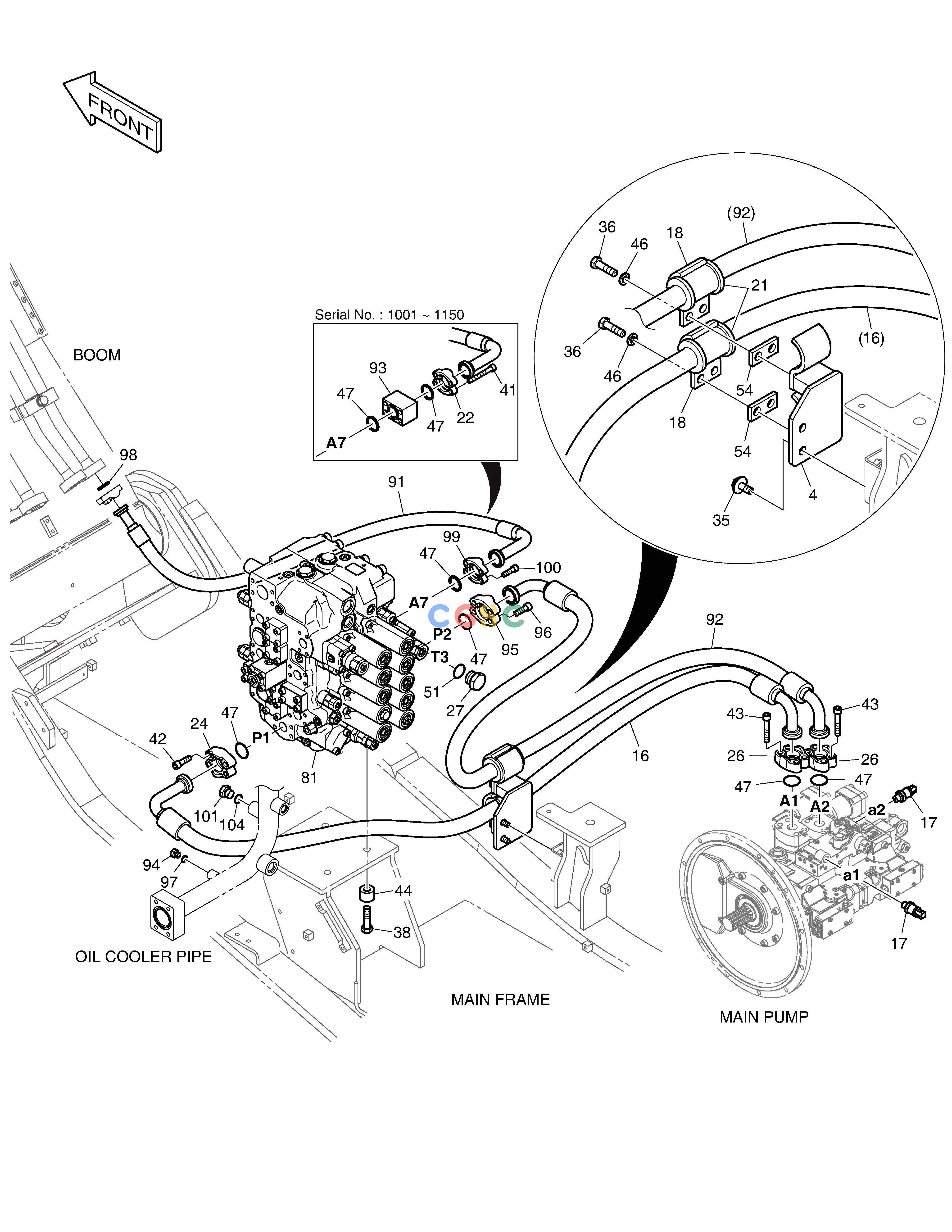

斗山零件查询MAIN PIPING(1) - PUMP DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09194
|
[-] |
|
|
| 100. |
S2212266
|
[4] |
BOLT
|
|
| 101. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 104. |
S8000181
|
[1] |
O-RING
|
|
| 16. |
DS2045847
|
[1] |
|
|
| 17. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 18. |
120208-00304
|
[2] |
|
|
| 21. |
180308-00576
|
[2] |
|
|
| 22. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 24. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 26. |
2181-9084A
|
[4] |
FLANGE;SPLIT
|
|
| 27. |
2181-1950D9
|
[1] |
PLUG
|
|
| 35. |
DS0025025
|
[2] |
BOLT
|
|
| 36. |
S0560566
|
[4] |
BOLT
|
|
| 38. |
S0565466
|
[4] |
BOLT
|
|
| 4. |
110420-00861A
|
[1] |
|
|
| 41. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 42. |
S2215466
|
[4] |
BOLT
|
|
| 43. |
S2216066
|
[8] |
BOLT;SOCKET
|
|
| 44. |
114-00425
|
[4] |
SPACER
|
|
| 46. |
120804-00077
|
[4] |
WASHER
|
|
| 47. |
DS2856003
|
[6] |
O-RING
|
|
| 47. |
DS2856003
|
[5] |
O-RING
|
|
| 51. |
S8000291
|
[1] |
O-RING
|
|
| 54. |
110951-01570
|
[2] |
|
|
| 81. |
410105-00139C
|
[1] |
|
|
| 91. |
DS2040470
|
[1] |
HOSE
|
|
| 92. |
DS2045869
|
[1] |
|
|
| 93. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 94. |
2181-1950D1
|
[1] |
PLUG
|
|
| 95. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 96. |
S2215466
|
[4] |
BOLT
|
|
| 97. |
S8000111
|
[1] |
O-RING
|
|
| 98. |
DS2856002
|
[1] |
O-RING
|
|
| 99. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
