卡特零件查询（725） 149-0004: LINES GP-PUMP
广数供应链运营团队, 14 02月, 2025，浏览：
266 次

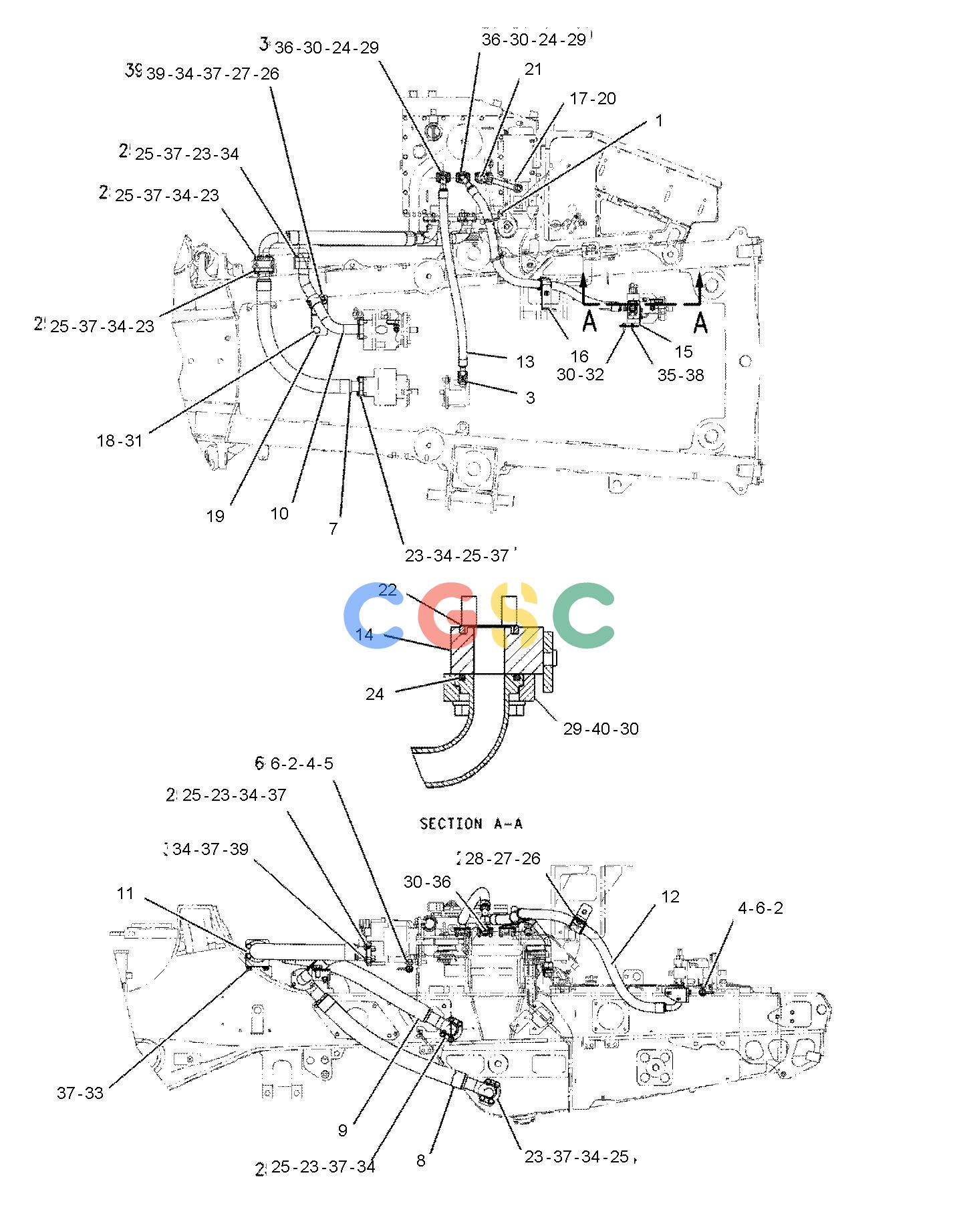

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [2] | STRAP | |
| 2. | 6V-0852 | [2] | CAP-DUST | |
| 3. | 148-8355 | [1] | ELBOW AS | |
| | 6V-9005 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 4. | 150-3065 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-0484 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 5. | 150-4046 | [1] | ADAPTER AS | |
| | 5P-1404 | [1] | ADAPTER | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| 6. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 7. | 175-1144I | [1] | HOSE AS | |
| 8. | 175-1145I | [1] | HOSE AS | |
| 9. | 175-1146I | [1] | HOSE AS | |
| 10. | 175-1147 | [1] | TUBE AS | |
| 11. | 175-1152 | [1] | FLANGE | |
| 12. | 175-4787I | [1] | HOSE AS | |
| 13. | 175-4788I | [1] | HOSE AS | |
| 14. | 179-5333 | [1] | BLOCK | |
| 15. | 179-5334 | [1] | BRACKET | |
| 16. | 184-6710 | [1] | BRACKET | |
| 17. | 193-5315 | [1] | TUBE AS | |
| 18. | 8T-5460M | [1] | BOLT(M20X2.5X40-MM) | |
| 19. | 198-3448 | [1] | BRACKET AS | |
| 20. | 148-8335 | [1] | CONNECTOR AS | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 21. | 148-8362 | [1] | ELBOW AS | |
| | 8T-6684 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 22. | 1P-3703 | [1] | SEAL-RECTANGULAR | |
| 23. | 1P-4582 | [14] | FLANGE-HALF | |
| 24. | 4J-0520 | [3] | SEAL-O-RING | |
| 25. | 4J-0527 | [7] | SEAL-O-RING | |
| 26. | 5P-7468 | [2] | CLIP(SLOT) | |
| 27. | 5P-7469 | [2] | CLIP(TAB) | |
| 28. | 6V-0545 | [1] | GROMMET | |
| 29. | 8C-3206 | [6] | FLANGE-HALF | |
| 30. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 32. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 33. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 34. | 8T-4183M | [30] | BOLT(M12X1.75X40-MM) | |
| 35. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 36. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 37. | 8T-4223 | [34] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 38. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 39. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 40. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
