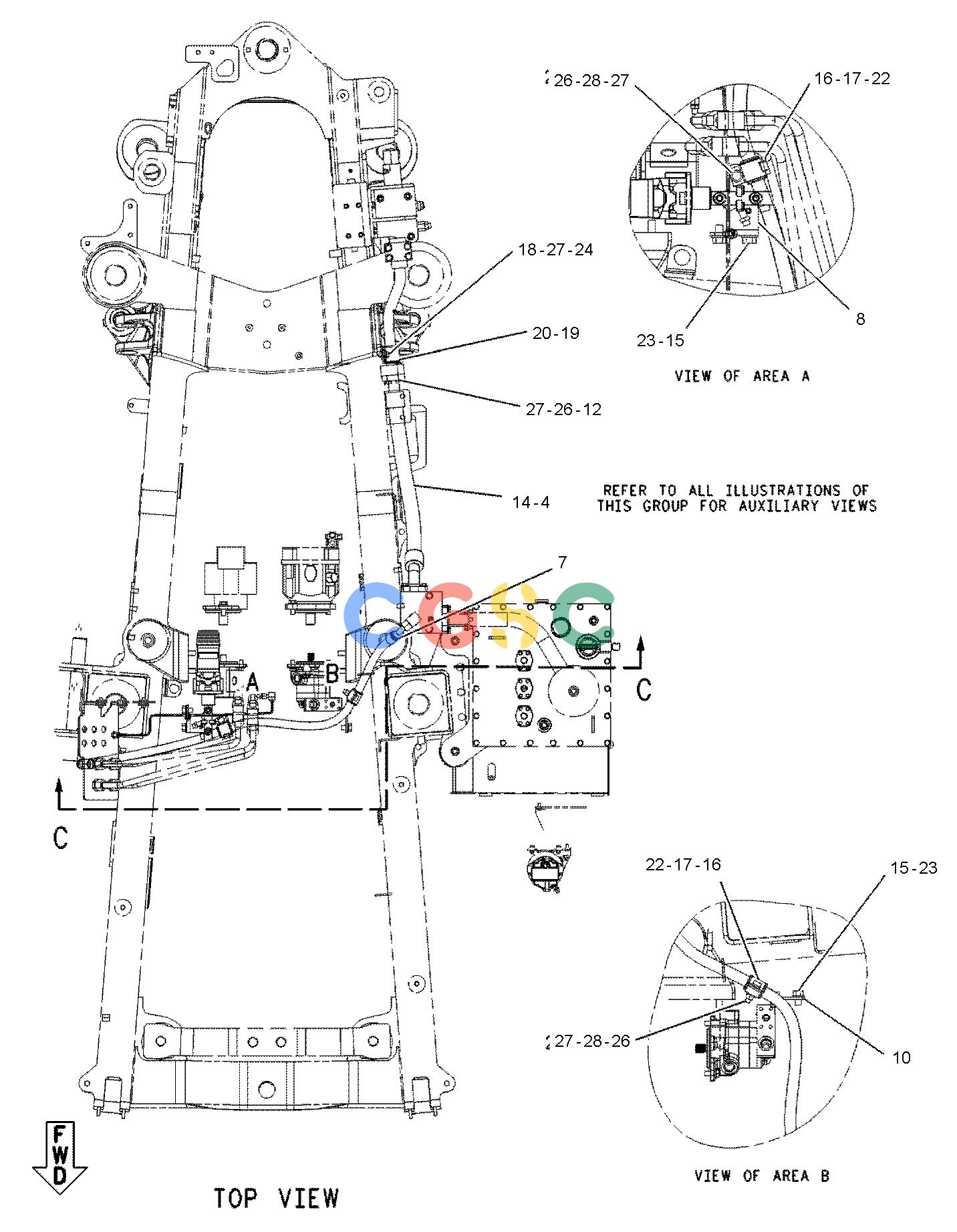

卡特零件查询（725） 175-2158: LINES GP-RETURN
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5J-3399 | [1] | PLATE-CONNECTOR | |
| 2. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9853 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 160-8616 | [1] | VALVE GP-CHECK(HYDRAULIC OIL COOLER BYPASS) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| 4. | 175-5948I | [1] | HOSE AS | |
| 5. | 175-5950 | [1] | TUBE AS | |
| 6. | 175-5951 | [1] | MANIFOLD | |
| 7. | 175-5952I | [1] | HOSE AS | |
| 8. | 175-5953 | [1] | BRACKET | |
| 9. | 179-2831 | [1] | BRACKET AS | |
| 10. | 179-3780 | [1] | BRACKET-CLIP | |
| 11. | 1P-3705 | [1] | SEAL-RECTANGULAR | |
| 12. | 1P-4579 | [4] | FLANGE-HALF | |
| 13. | 1P-4582 | [2] | FLANGE-HALF | |
| 14. | 4J-0524 | [3] | SEAL-O-RING | |
| 15. | 5C-6266 | [4] | BOLT(5/8-11X1-IN) | |
| 16. | 5P-7464 | [2] | CLIP(SLOT) | |
| 17. | 5P-7465 | [2] | CLIP(TAB) | |
| 18. | 5P-7468 | [1] | CLIP(SLOT) | |
| 19. | 5P-7469 | [1] | CLIP(TAB) | |
| 20. | 5P-8444 | [1] | GROMMET(37-MM ID) | |
| 21. | 7X-2549M | [4] | BOLT(M12X1.75X100-MM) | |
| 22. | 8T-2920 | [2] | GROMMET(27-MM ID) | |
| 23. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 24. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 25. | 8T-4179M | [3] | BOLT(M12X1.75X20-MM) | |
| 26. | 8T-4183M | [14] | BOLT(M12X1.75X40-MM) | |
| 27. | 8T-4223 | [28] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 29. | 8T-5041M | [2] | BOLT(M12X1.75X120-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
