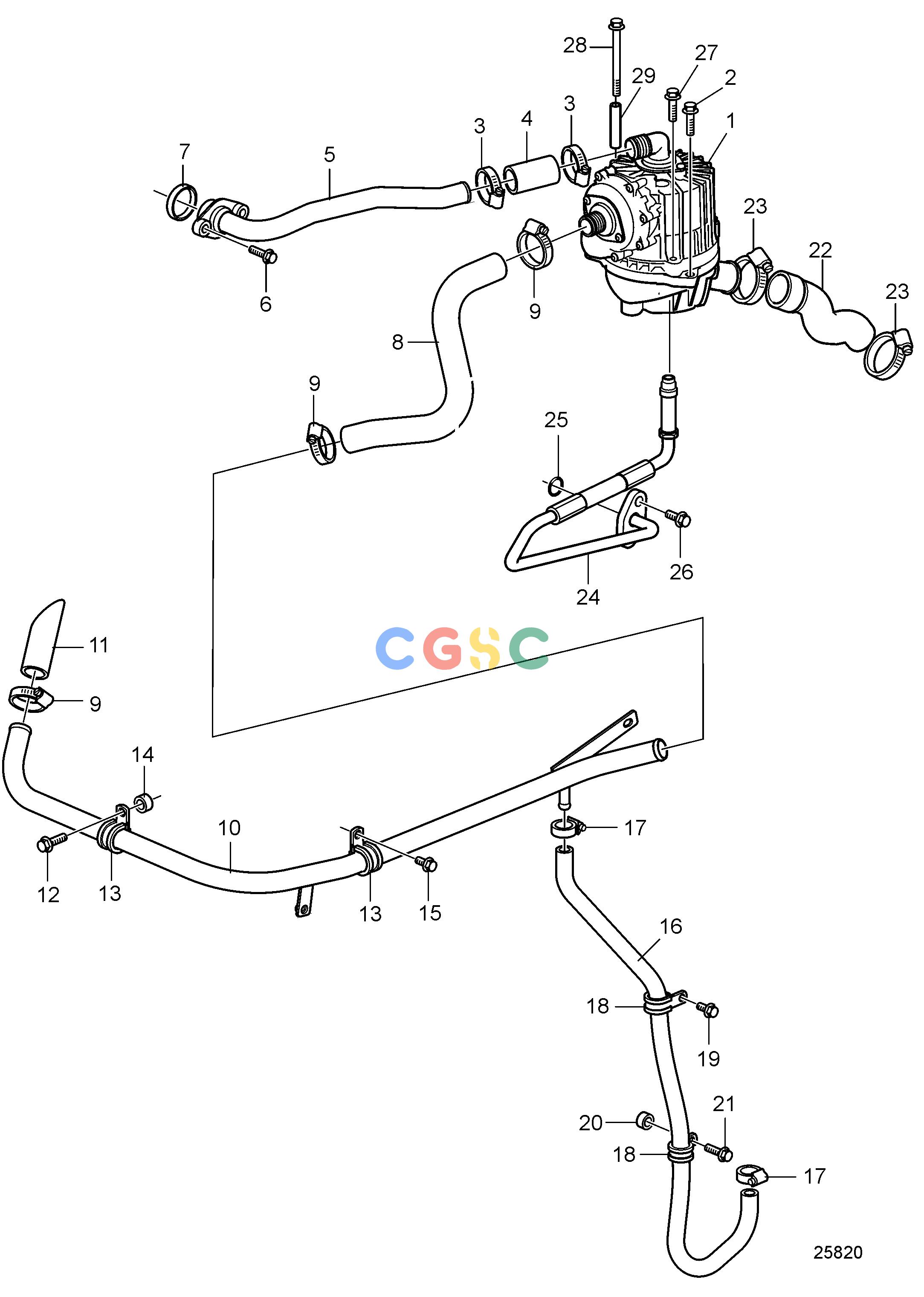

沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemCrankcase Ventilation, ClosedEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886706
|
[1] |
Separator
|
|
| 2. |
984736
|
[2] |
Flange screw
|
|
| 3. |
994560
|
[2] |
Hose clamp
|
|
| 4. |
|
|
|
|
| 5. |
40005746
|
[1] |
Pipe
|
|
| 6. |
984735
|
[2] |
Flange screw
|
|
| 7. |
21780376
|
[1] |
Sealing ring
|
|
| 8. |
3889437
|
[1] |
Hose
|
|
| 9. |
994560
|
[3] |
Hose clamp
|
|
| 10. |
21671017
|
[1] |
Pipe
|
|
| 11. |
21670721
|
[1] |
Hose
|
|
| 12. |
984753
|
[2] |
Flange screw
|
|
| 13. |
947827
|
[2] |
Clamp
|
|
| 14. |
977412
|
[1] |
Spacer sleeve
|
|
| 15. |
984733
|
[1] |
Flange screw
|
|
| 16. |
1312257
|
[1] |
Fuel hose
|
|
| 17. |
992082
|
[2] |
Hose clamp
|
|
| 18. |
1545432
|
[2] |
Attaching clamp
|
|
| 19. |
984733
|
[1] |
Flange screw
|
|
| 20. |
948871
|
[1] |
Spacer washer
|
|
| 21. |
984735
|
[1] |
Flange screw
|
|
| 22. |
21283381
|
[1] |
Hose
|
|
| 23. |
994562
|
[2] |
Hose clamp
|
|
| 24. |
21441010
|
[1] |
Oil hose
|
|
| 25. |
968007
|
[1] |
O-ring
|
|
| 26. |
984734
|
[2] |
Flange screw
|
|
| 27. |
984728
|
[2] |
Flange screw
|
|
| 28. |
984743
|
[1] |
Flange screw
|
|
| 29. |
822791
|
[1] |
Spacer sleeve
|
|
