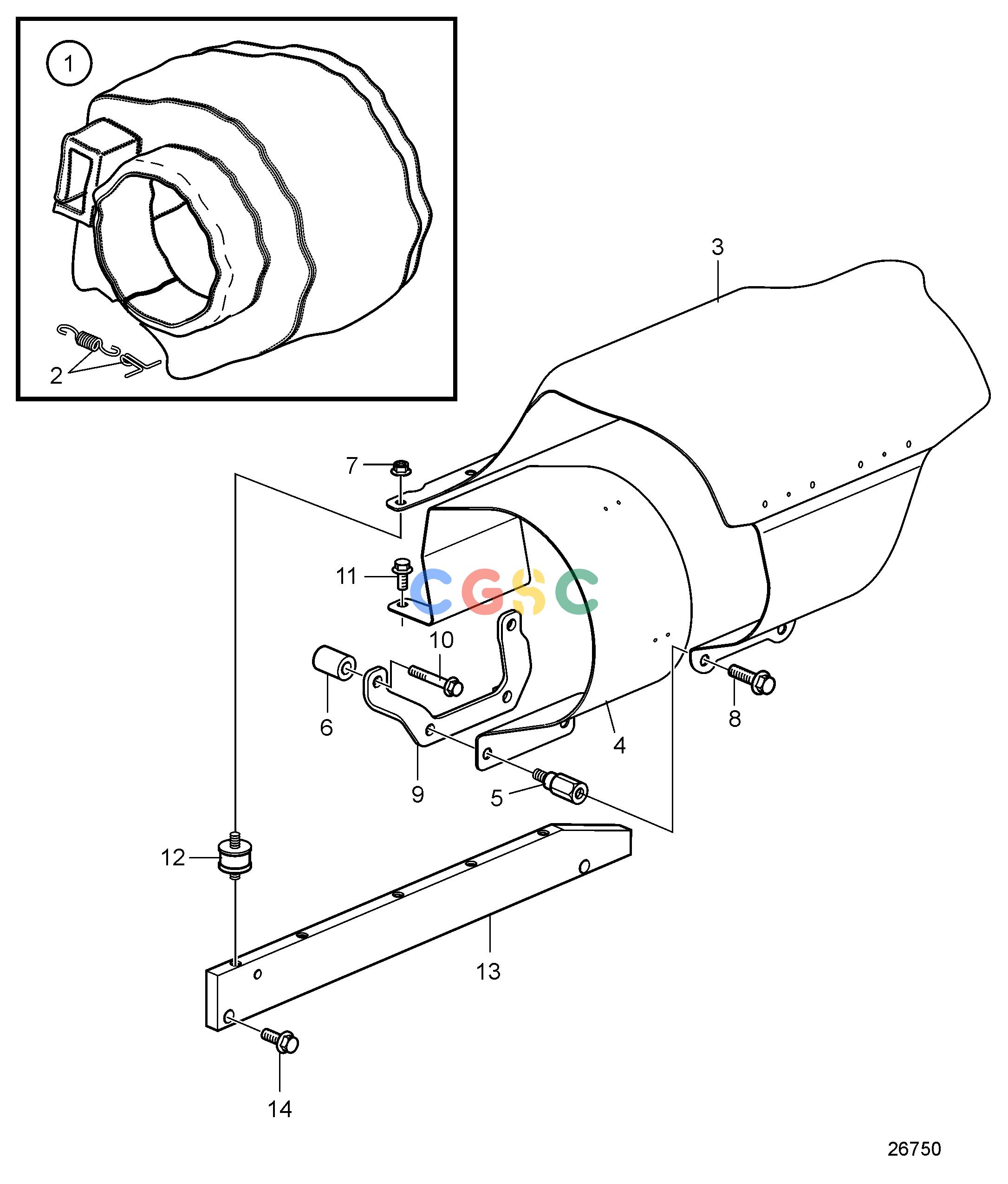

沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemHeat Protection for TurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
512 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3842958
|
[1] |
Insulation
|
|
| 2. |
3888127
|
[6] |
Hook
|
|
| 2. |
3888128
|
[4] |
Spring
|
|
| 3. |
21992315
|
[1] |
Heat shield
|
|
| 4. |
3888134
|
[1] |
Brace
|
|
| 5. |
3843941
|
[2] |
Spacer screw
|
|
| 6. |
845342
|
[2] |
Spacer sleeve
|
|
| 7. |
990940
|
[5] |
Flange nut
|
|
| 8. |
984735
|
[2] |
Flange screw
|
|
| 9. |
3886932
|
[1] |
Bracket
|
|
| 10. |
994441
|
[2] |
Flange screw
|
|
| 11. |
984733
|
[2] |
Flange screw
|
|
| 12. |
22244752
|
[5] |
Vibration damper
|
|
| 13. |
|
|
|
|
| 14. |
969445
|
[2] |
Flange screw
|
|
