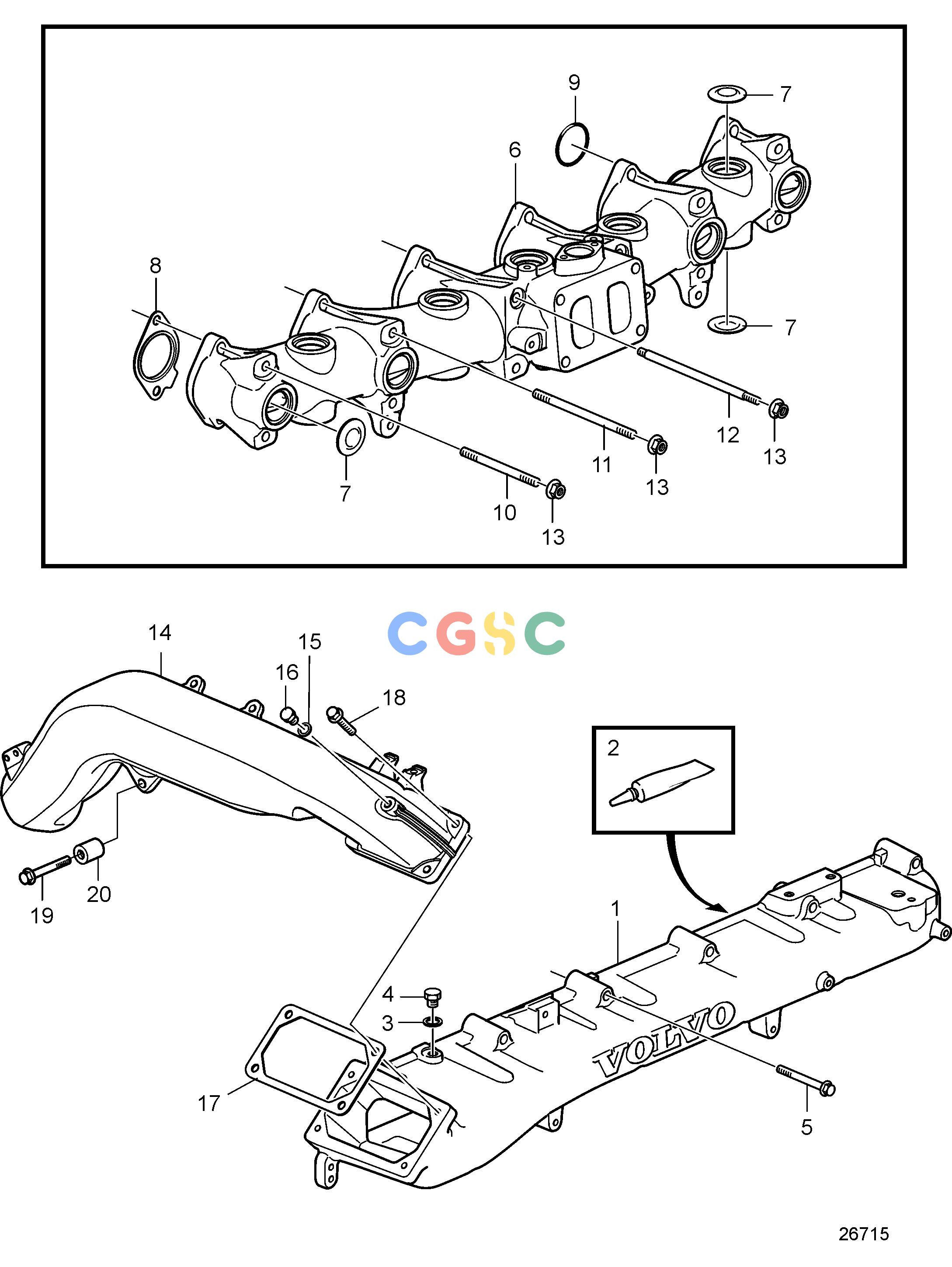

沃尔沃零件查询D11B1-A MP; D11B2-A MPIntake and Exhaust SystemIntake and Exhaust Manifold SN-7011385647EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21393038
|
[1] |
Inlet manifold
|
|
| 2. |
1161231
|
[1] |
Sealant
|
304ml
|
| 2. |
1161277
|
[1] |
Sealant
|
20g
|
| 3. |
947281
|
[1] |
Gasket
|
|
| 4. |
960628
|
[1] |
Plug
|
|
| 5. |
996457
|
[12] |
Flange screw
|
|
| 6. |
21669749
|
[1] |
Exhaust manifold
|
|
| 7. |
968955
|
[14] |
Expansion plug
|
|
| 8. |
8148172
|
[6] |
Plane gasket
|
|
| 9. |
469606
|
[2] |
Seal
|
|
| 10. |
953000
|
[4] |
Stud
|
|
| 11. |
953007
|
[4] |
Stud
|
|
| 12. |
948932
|
[4] |
Stud
|
|
| 13. |
1543499
|
[12] |
Flange nut
|
|
| 14. |
21619517
|
[1] |
Charge air pipe
|
|
| 15. |
947281
|
[1] |
Gasket
|
|
| 16. |
960628
|
[1] |
Plug
|
|
| 17. |
3979639
|
[1] |
Plane gasket
|
|
| 18. |
984737
|
[4] |
Flange screw
|
|
| 19. |
984740
|
[1] |
Flange screw
|
|
| 20. |
973273
|
[1] |
Spacer sleeve
|
|
