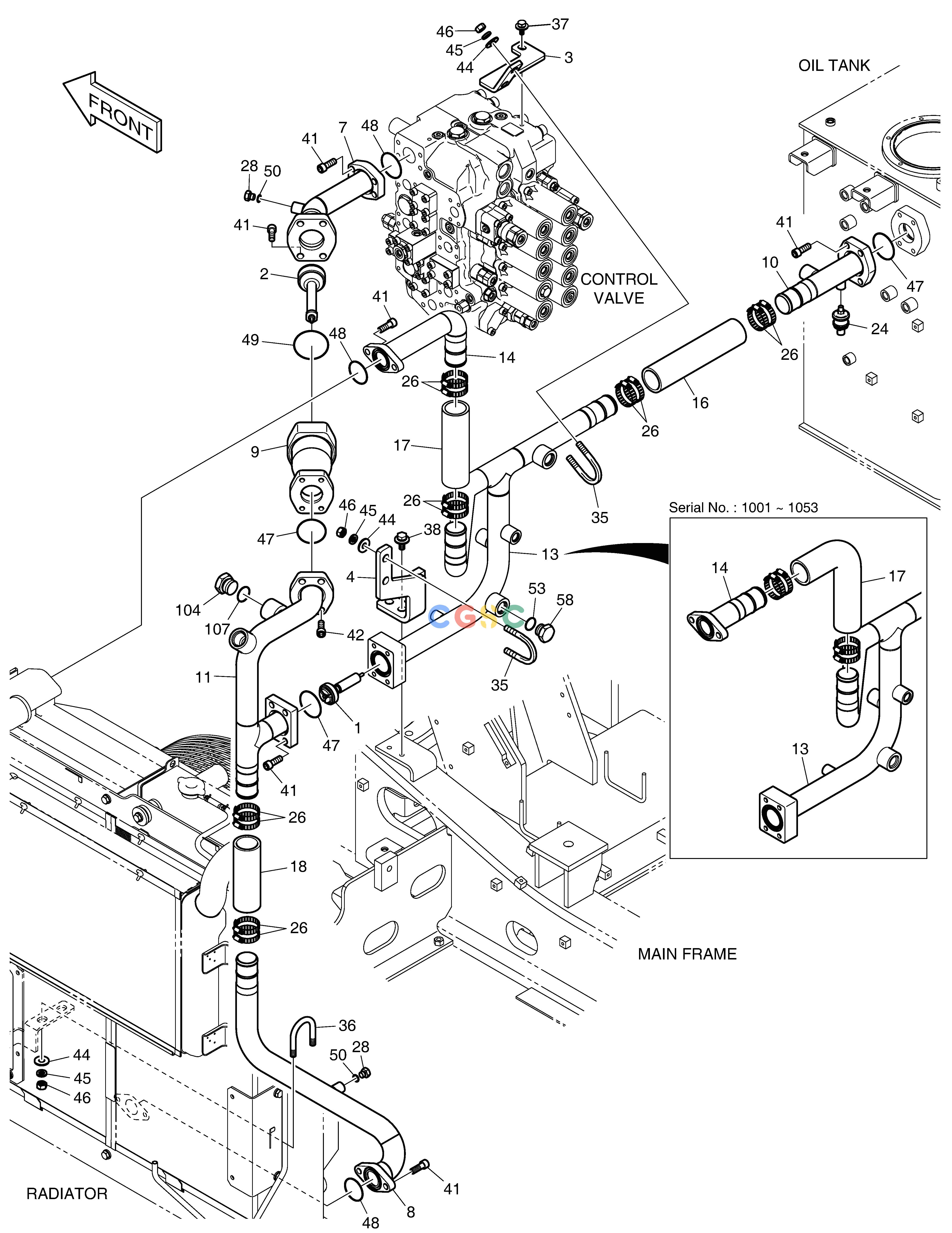

斗山零件查询OIL COOLER PIPING(2) - OIL COOLER DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
891 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09250
|
[-] |
|
|
| 1. |
410128-00035
|
[1] |
|
|
| 10. |
420207-02954A
|
[1] |
|
|
| 104. |
2181-1950D9
|
[1] |
PLUG
|
|
| 107. |
S8000291
|
[1] |
O-RING
|
|
| 11. |
420207-02956
|
[1] |
|
|
| 13. |
420207-02955
|
[1] |
|
|
| 13. |
420207-02955A
|
[1] |
|
|
| 14. |
420207-02957
|
[1] |
|
|
| 14. |
420207-02957A
|
[1] |
|
|
| 16. |
DS2087099
|
[1] |
|
|
| 17. |
420108-00906
|
[1] |
|
|
| 17. |
2185-1776D2
|
[1] |
HOSE 200L
|
|
| 18. |
DS2087107
|
[1] |
|
|
| 2. |
410128-00039
|
[1] |
|
|
| 24. |
549-00095
|
[1] |
SWITCH;PRESSURE
|
|
| 26. |
S8500067
|
[12] |
CLAMP
|
|
| 28. |
2181-1950D1
|
[2] |
PLUG
|
|
| 3. |
110406-02602A
|
[1] |
|
|
| 35. |
120-00317
|
[2] |
BOLT
|
|
| 36. |
2120-1413D12
|
[1] |
U-BOLT
|
|
| 37. |
DS0025023
|
[1] |
BOLT
|
|
| 38. |
DS0025015
|
[2] |
BOLT
|
|
| 4. |
110406-02603A
|
[1] |
|
|
| 41. |
S2215366
|
[20] |
BOLT
|
|
| 42. |
S2215466
|
[4] |
BOLT
|
|
| 44. |
2114-1058D72
|
[6] |
WASHER
|
|
| 45. |
S5102703
|
[6] |
WASHER
|
|
| 46. |
S4012733
|
[6] |
NUT
|
|
| 47. |
DS2856006
|
[3] |
O-RING
|
|
| 48. |
DS2856005
|
[3] |
O-RING
|
|
| 49. |
2180-1026D31
|
[1] |
O-RING
|
|
| 50. |
S8000111
|
[2] |
O-RING
|
|
| 53. |
S8000231
|
[1] |
O-RING
|
|
| 58. |
2181-1950D15
|
[1] |
PLUG
|
|
| 7. |
420207-02416A
|
[1] |
|
|
| 8. |
420207-02417A
|
[1] |
|
|
| 9. |
420207-02893
|
[1] |
|
|
