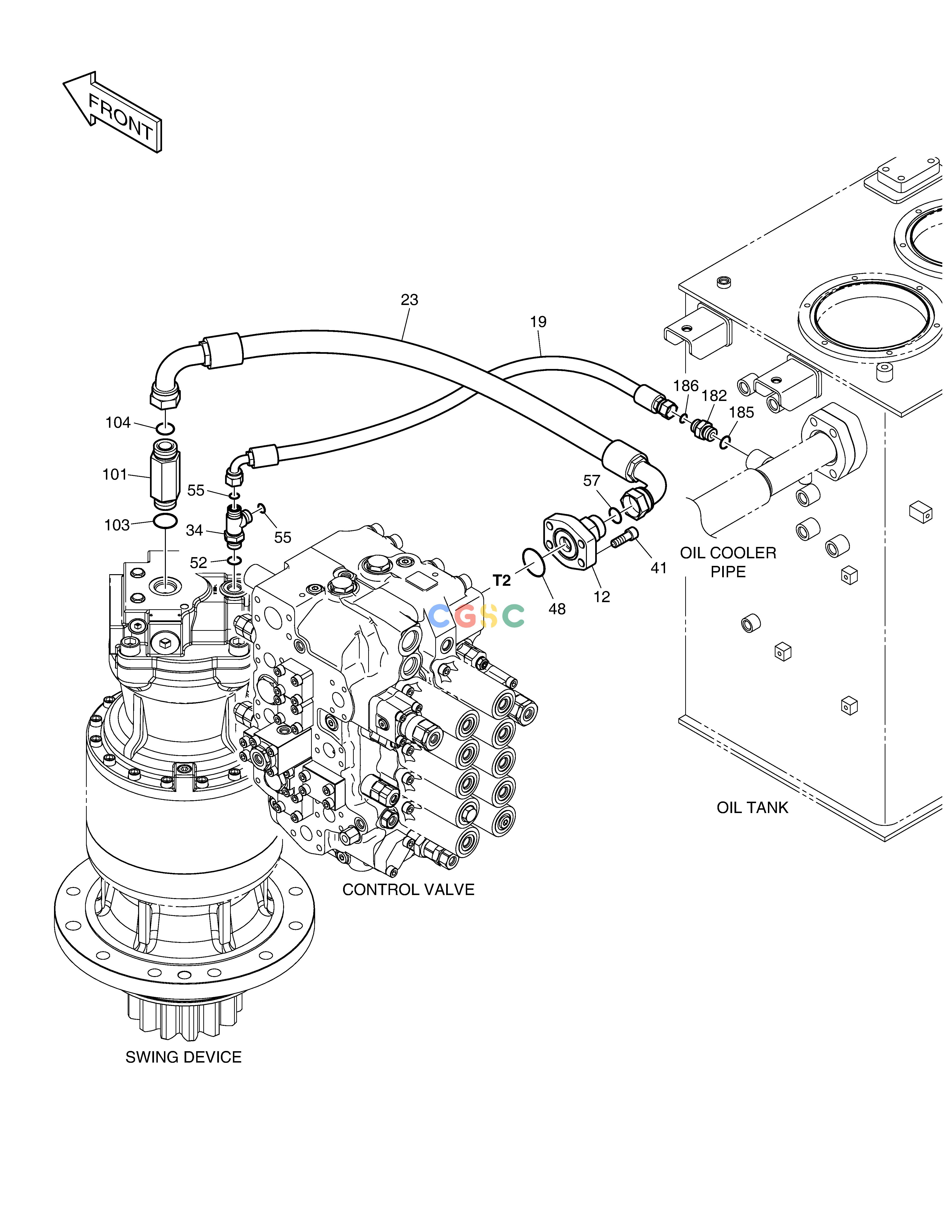

斗山零件查询OIL COOLER PIPING(3) - SWING DEVICE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09250
|
[-] |
|
|
| 101. |
DS2232107
|
[1] |
ADAPTER
|
|
| 103. |
S8000291
|
[1] |
O-RING
|
|
| 104. |
S8030161
|
[1] |
O-RING
|
|
| 12. |
420207-02958
|
[1] |
|
|
| 182. |
DS2232012
|
[1] |
ADAPTER
|
|
| 185. |
S8000181
|
[1] |
O-RING
|
|
| 186. |
S8030081
|
[1] |
O-RING
|
|
| 19. |
DS20131516
|
[1] |
|
|
| 23. |
DS2023417
|
[1] |
|
|
| 34. |
181-00121D10
|
[1] |
TEE
|
|
| 41. |
S2215366
|
[4] |
BOLT
|
|
| 48. |
DS2856005
|
[1] |
O-RING
|
|
| 52. |
S8000181
|
[1] |
O-RING
|
|
| 55. |
S8030081
|
[2] |
O-RING
|
|
| 57. |
S8030161
|
[1] |
O-RING
|
|
