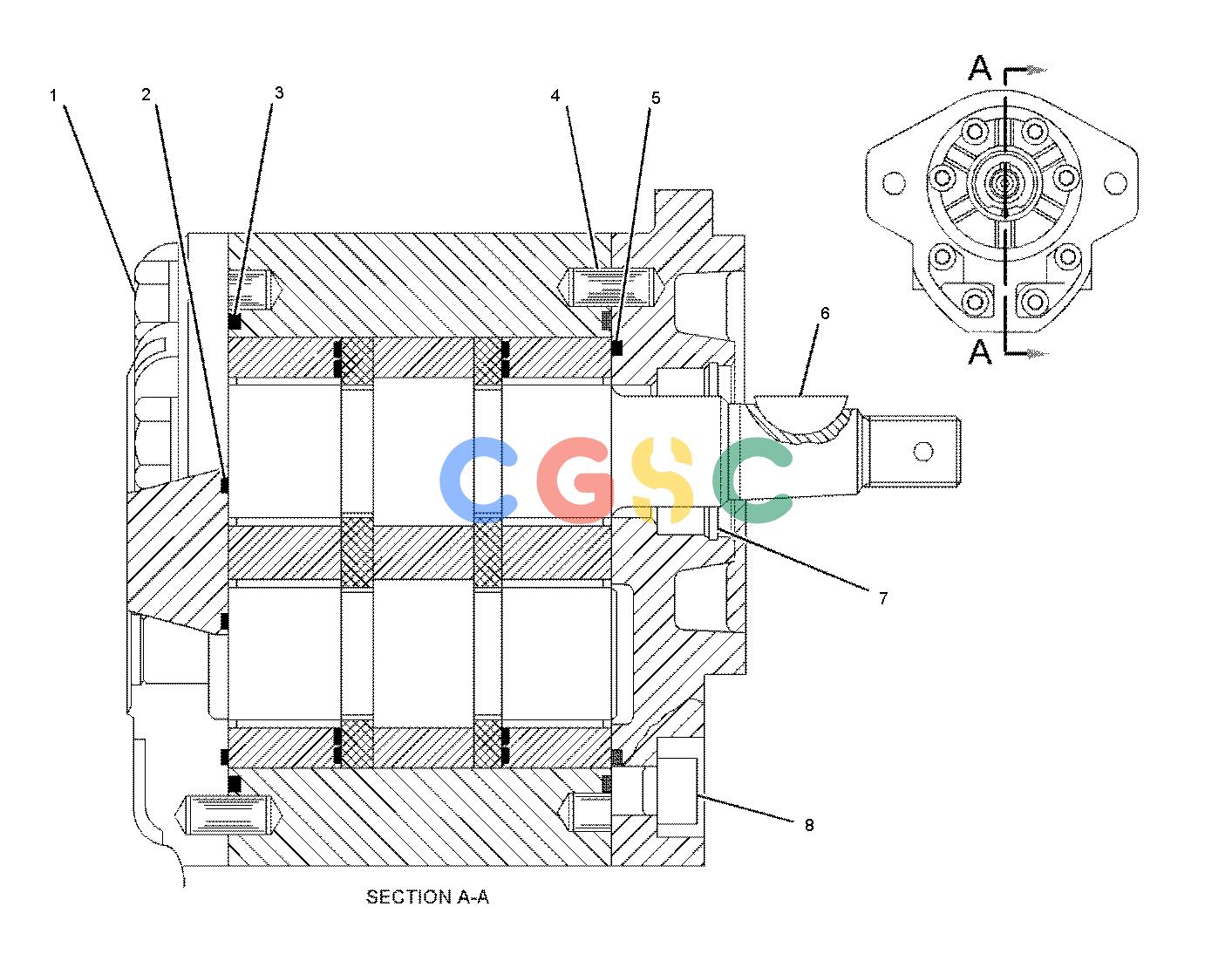

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6V-1820M | [8] | BOLT(M10X1.5X30-MM) | |
| 2. | 4K-4986J | [4] | SEAL-O-RING | |
| 3. | 5P-3881J | [2] | SEAL-O-RING | |
| 4. | 145-6115 | [4] | DOWEL | |
| 5. | 6V-3865J | [2] | SEAL-O-RING | |
| 6. | 1B-8714 | [1] | KEY-WOODRUFF | |
| 7. | 2R-1230 | [1] | RING-RETAINING | |
| 8. | 101-7404M | [8] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 213-8025J | [1] | KIT-SEAL | ||
| (INCLUDES WASHERS, SEALS, SHAFT & RINGS) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
