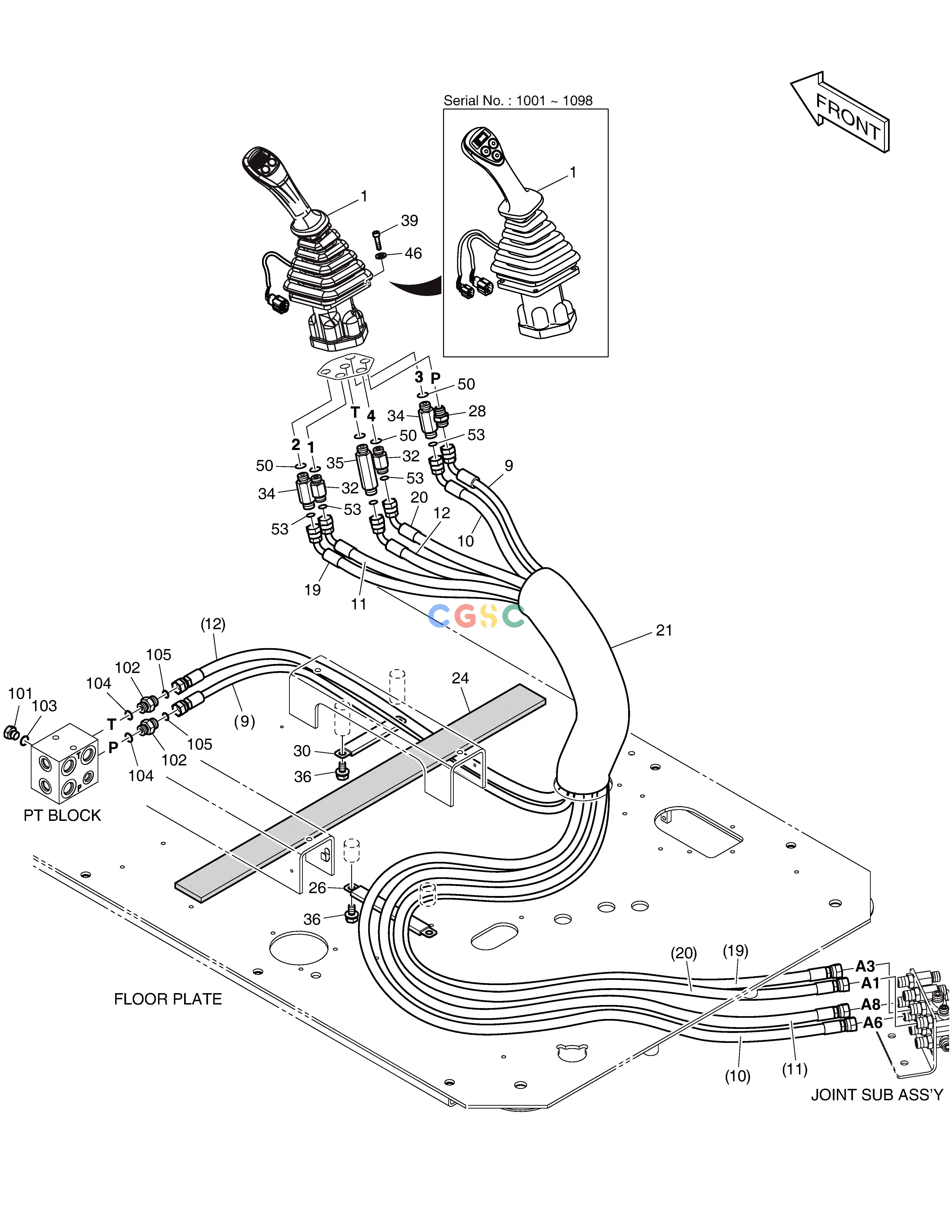

斗山零件查询PILOT PIPING(11) - JOYSTICK(R.H) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09266G
|
[-] |
|
|
| -. |
420212-09266K
|
[-] |
|
|
| -. |
420212-09266H
|
[-] |
|
|
| 1. |
410113-00209E
|
[1] |
|
|
| 1. |
410113-00297
|
[1] |
|
|
| 10. |
DS2113042
|
[1] |
|
|
| 101. |
2181-1950D1
|
[1] |
PLUG
|
DS2901009
|
| 101. |
DS2901009
|
[1] |
PLUG
|
|
| 102. |
DS2232038
|
[2] |
ADAPTER
|
|
| 103. |
S8000111
|
[1] |
O-RING
|
|
| 104. |
S8000141
|
[2] |
O-RING
|
|
| 105. |
S8030061
|
[2] |
O-RING
|
|
| 11. |
DS2113075
|
[1] |
|
|
| 12. |
DS2113059
|
[1] |
|
|
| 19. |
DS2113030
|
[1] |
|
|
| 20. |
DS2113060
|
[1] |
|
|
| 21. |
K1003945
|
[1] |
PROTECTOR
|
|
| 24. |
180102-00546
|
[1] |
|
|
| 26. |
120202-00267
|
[1] |
|
|
| 28. |
300202-00029
|
[1] |
|
|
| 30. |
120202-00008A
|
[1] |
|
|
| 32. |
DS2232039
|
[2] |
|
|
| 34. |
DS2232085
|
[2] |
ADAPTER
|
|
| 35. |
DS2232169
|
[1] |
|
|
| 36. |
DS0025042
|
[4] |
BOLT
|
|
| 39. |
S2205066
|
[4] |
BOLT
|
|
| 46. |
S5010313
|
[4] |
WASHER
|
|
| 50. |
S8000141
|
[5] |
O-RING
|
|
| 53. |
S8030061
|
[5] |
O-RING
|
|
| 9. |
DS2113067
|
[1] |
|
|
