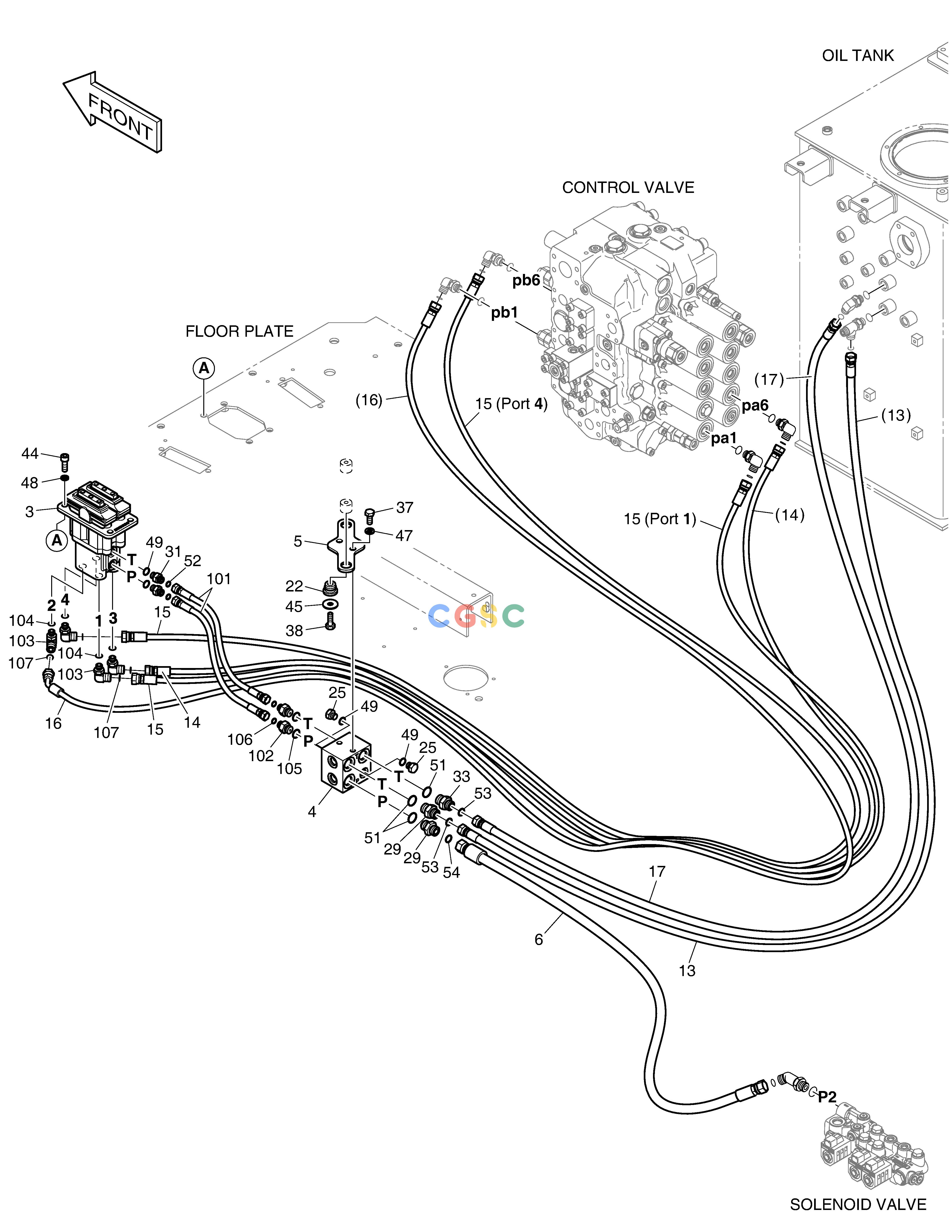

斗山零件查询PILOT PIPING(12) - PEDAL VALVE DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09266G
|
[-] |
|
|
| -. |
420212-09266K
|
[-] |
|
|
| -. |
420212-09266H
|
[-] |
|
|
| 101. |
DS2119001
|
[2] |
|
|
| 102. |
DS2232041
|
[2] |
|
|
| 103. |
DS2304008
|
[4] |
|
|
| 104. |
S8000111
|
[4] |
O-RING
|
|
| 105. |
S8000141
|
[2] |
O-RING
|
|
| 106. |
S8030041
|
[2] |
O-RING
|
|
| 107. |
S8030061
|
[4] |
O-RING
|
|
| 13. |
DS2119298
|
[1] |
|
|
| 14. |
DS2119077
|
[1] |
|
|
| 15. |
DS2119121
|
[2] |
|
|
| 16. |
DS2120059
|
[1] |
|
|
| 17. |
DS2119021
|
[1] |
|
|
| 22. |
180308-00534A
|
[2] |
|
|
| 25. |
2181-1950D1
|
[2] |
PLUG
|
DS2901009
|
| 25. |
DS2901009
|
[2] |
PLUG
|
|
| 29. |
430201-00108
|
[1] |
|
|
| 3. |
410119-00003
|
[1] |
|
|
| 31. |
DS2232018
|
[2] |
|
|
| 33. |
DS2232010
|
[2] |
|
|
| 37. |
S0512066
|
[2] |
. BOLT
|
|
| 38. |
S0512266
|
[2] |
BOLT
|
|
| 4. |
100201-01371B
|
[1] |
|
|
| 44. |
S2212266
|
[4] |
BOLT
|
|
| 45. |
2114-1058D10
|
[2] |
WASHER
|
|
| 47. |
S5102603
|
[2] |
. WASHER
|
|
| 48. |
S5110603
|
[4] |
WASHER
|
|
| 49. |
S8000111
|
[4] |
O-RING
|
|
| 5. |
250105-00321A
|
[1] |
|
|
| 51. |
S8000181
|
[3] |
O-RING
|
|
| 52. |
S8030041
|
[2] |
O-RING
|
|
| 53. |
S8030061
|
[2] |
O-RING
|
|
| 54. |
S8030081
|
[1] |
O-RING
|
|
| 6. |
DS20111813
|
[1] |
|
|
