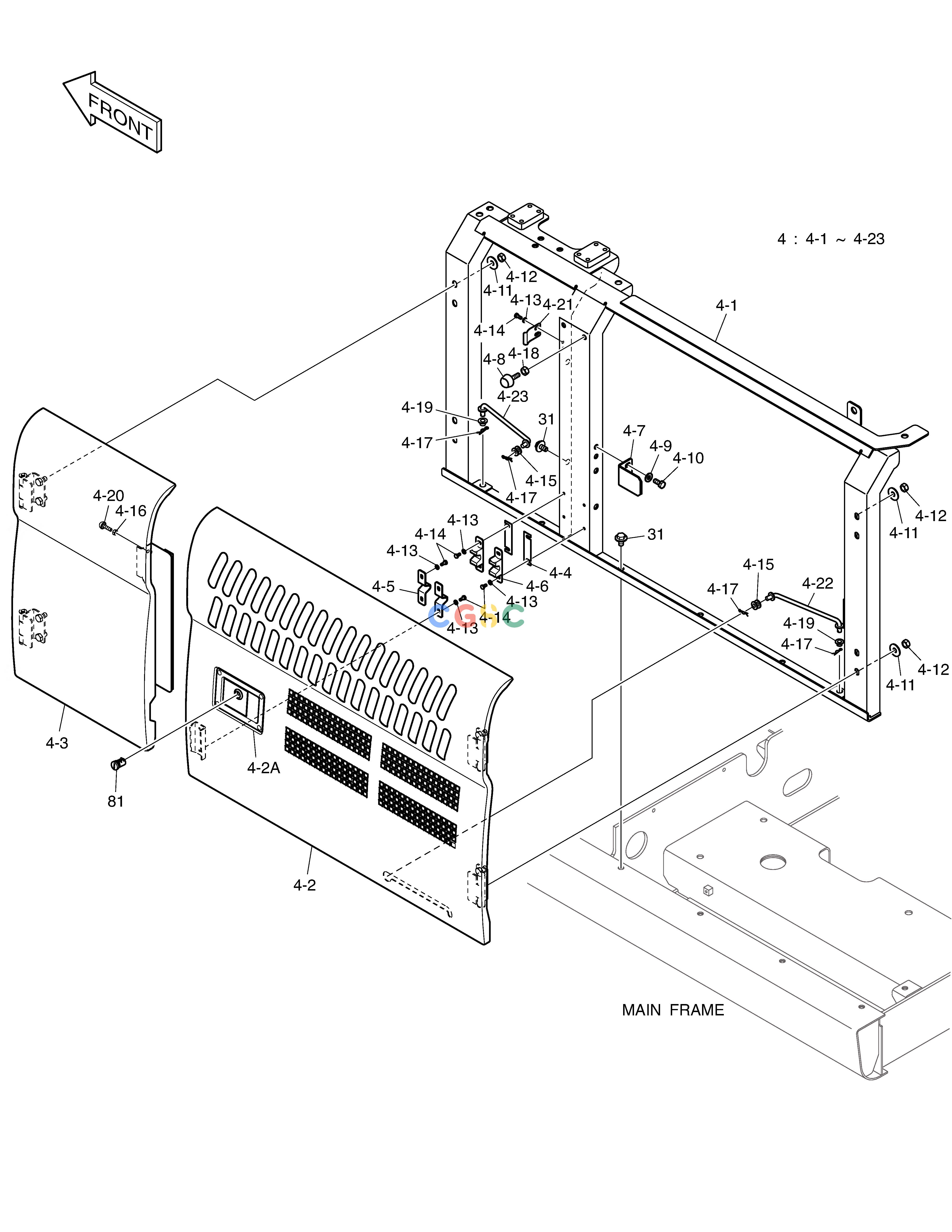

斗山零件查询SIDE DOOR - L.H DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-14000
|
[-] |
|
|
| 31. |
DS0025015
|
[8] |
BOLT
|
|
| 4. |
110982-00734B
|
[1] |
|
|
| 4. |
110982-00734C
|
[1] |
|
110982-00734E
|
| 4. |
110982-00734E
|
[1] |
|
110982-00734G
|
| 4. |
110982-00734G
|
[1] |
|
|
| 4-1. |
110958-02094B
|
[1] |
|
|
| 4-1. |
110958-02094C
|
[1] |
|
110958-02094E
|
| 4-1. |
110958-02094E
|
[1] |
|
|
| 4-10. |
S0512066
|
[2] |
. BOLT
|
|
| 4-11. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 4-12. |
S4012733
|
[8] |
NUT
|
|
| 4-13. |
S5010313
|
[10] |
WASHER
|
|
| 4-14. |
S0504666
|
[10] |
BOLT
|
|
| 4-15. |
K1008335
|
[2] |
. BUSHING
|
|
| 4-16. |
S4012533
|
[1] |
NUT
|
|
| 4-17. |
2705-9002
|
[4] |
PIN
|
|
| 4-18. |
S4012633
|
[2] |
NUT
|
|
| 4-19. |
K1000602
|
[2] |
. BUSHING
|
|
| 4-2. |
110982-00735B
|
[1] |
|
|
| 4-20. |
K1048085
|
[1] |
STOPPER;RUBBER
|
|
| 4-21. |
K1039869B
|
[1] |
PLATE;LOCK
|
|
| 4-22. |
101582-00619
|
[1] |
|
101582-00619A
|
| 4-22. |
101582-00619A
|
[1] |
|
|
| 4-23. |
101582-00618
|
[1] |
|
101582-00618A
|
| 4-23. |
101582-00618A
|
[1] |
|
|
| 4-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 4-3. |
110982-00736A
|
[1] |
|
|
| 4-4. |
110947-00027
|
[2] |
. SHIM
|
|
| 4-5. |
250201-00028
|
[2] |
. PLATE
|
|
| 4-6. |
110956-00002
|
[2] |
|
|
| 4-7. |
K1038920
|
[1] |
PLATE;LOCK
|
|
| 4-8. |
K1001260A
|
[2] |
STOPPER
|
|
| 4-9. |
2114-1058D45
|
[2] |
. WASHER
|
|
| 81. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
