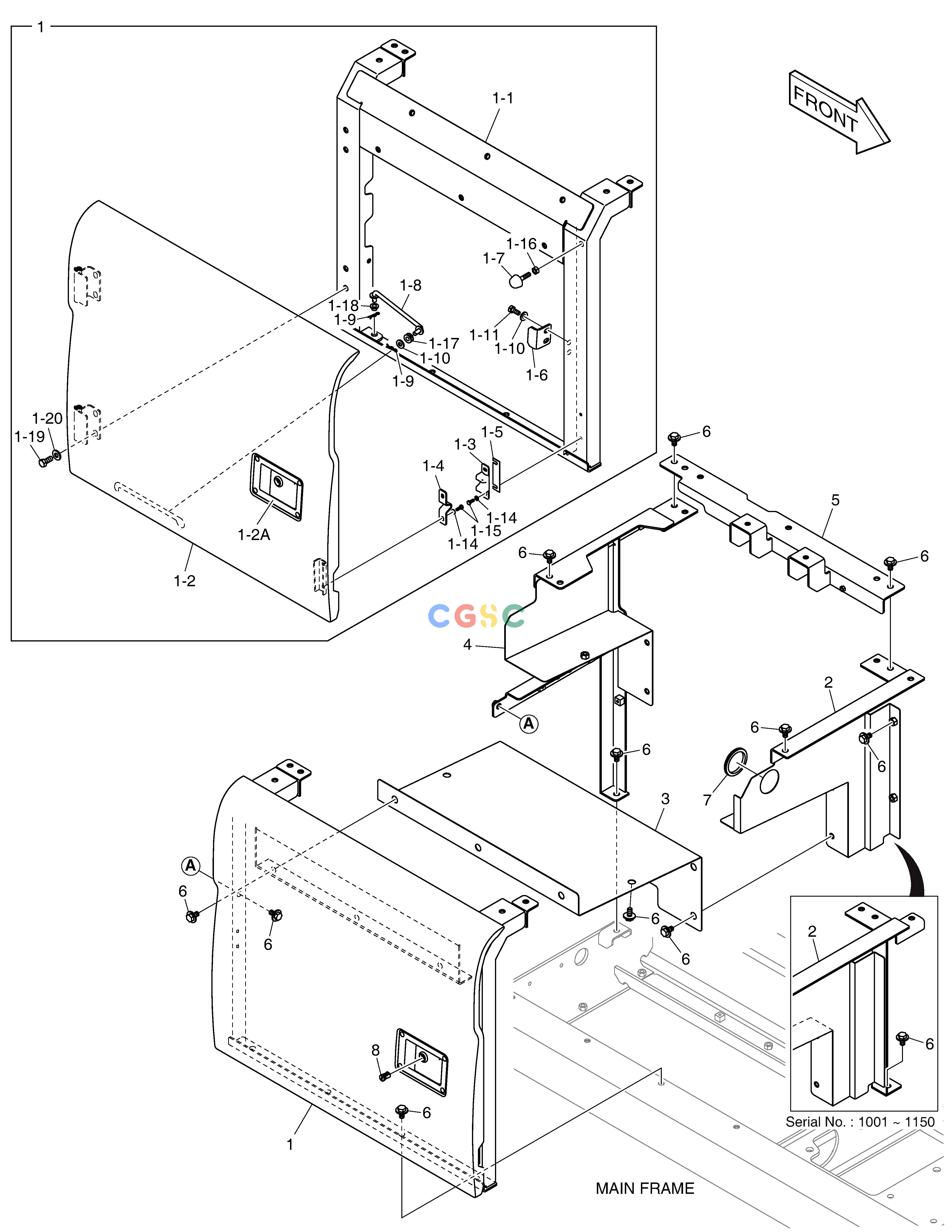

斗山零件查询SIDE DOOR - R.H DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-13903A
|
[-] |
|
|
| 1. |
110982-00741B
|
[1] |
|
110982-00741C
|
| 1. |
110982-00741C
|
[1] |
|
110982-00741E
|
| 1. |
110982-00741E
|
[1] |
|
|
| 1-1. |
110958-02131B
|
[1] |
|
110958-02131C
|
| 1-1. |
110958-02131C
|
[1] |
|
|
| 1-10. |
2114-1058D45
|
[3] |
. WASHER
|
|
| 1-11. |
S0512066
|
[2] |
. BOLT
|
|
| 1-14. |
S5010313
|
[4] |
WASHER
|
|
| 1-15. |
S0504666
|
[4] |
BOLT
|
|
| 1-16. |
S4012633
|
[1] |
NUT
|
|
| 1-17. |
K1008335
|
[1] |
. BUSHING
|
|
| 1-18. |
K1000602
|
[1] |
. BUSHING
|
|
| 1-19. |
S0515266
|
[4] |
BOLT
|
|
| 1-2. |
110982-00742B
|
[1] |
|
|
| 1-20. |
DS0401239
|
[4] |
|
|
| 1-2A. |
125-00035A
|
[1] |
LOCK
|
|
| 1-3. |
110956-00002
|
[1] |
|
|
| 1-4. |
250201-00028
|
[1] |
. PLATE
|
|
| 1-5. |
110947-00027
|
[1] |
. SHIM
|
|
| 1-6. |
621-02726A
|
[1] |
. PLATE,LOCK
|
|
| 1-7. |
K1001260A
|
[1] |
STOPPER
|
|
| 1-8. |
101582-00618
|
[1] |
|
101582-00618A
|
| 1-8. |
101582-00618A
|
[1] |
|
|
| 1-9. |
2705-9002
|
[2] |
PIN
|
|
| 2. |
110502-00840B
|
[1] |
|
|
| 2. |
110502-00840C
|
[1] |
|
|
| 3. |
110502-00841A
|
[1] |
|
|
| 4. |
110958-02132B
|
[1] |
|
|
| 5. |
110958-02133B
|
[1] |
|
|
| 6. |
DS0025015
|
[23] |
BOLT
|
|
| 6. |
DS0025015
|
[25] |
BOLT
|
|
| 7. |
2160-1004D30
|
[1] |
BUSHING;RUBBER
|
|
| 8. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
