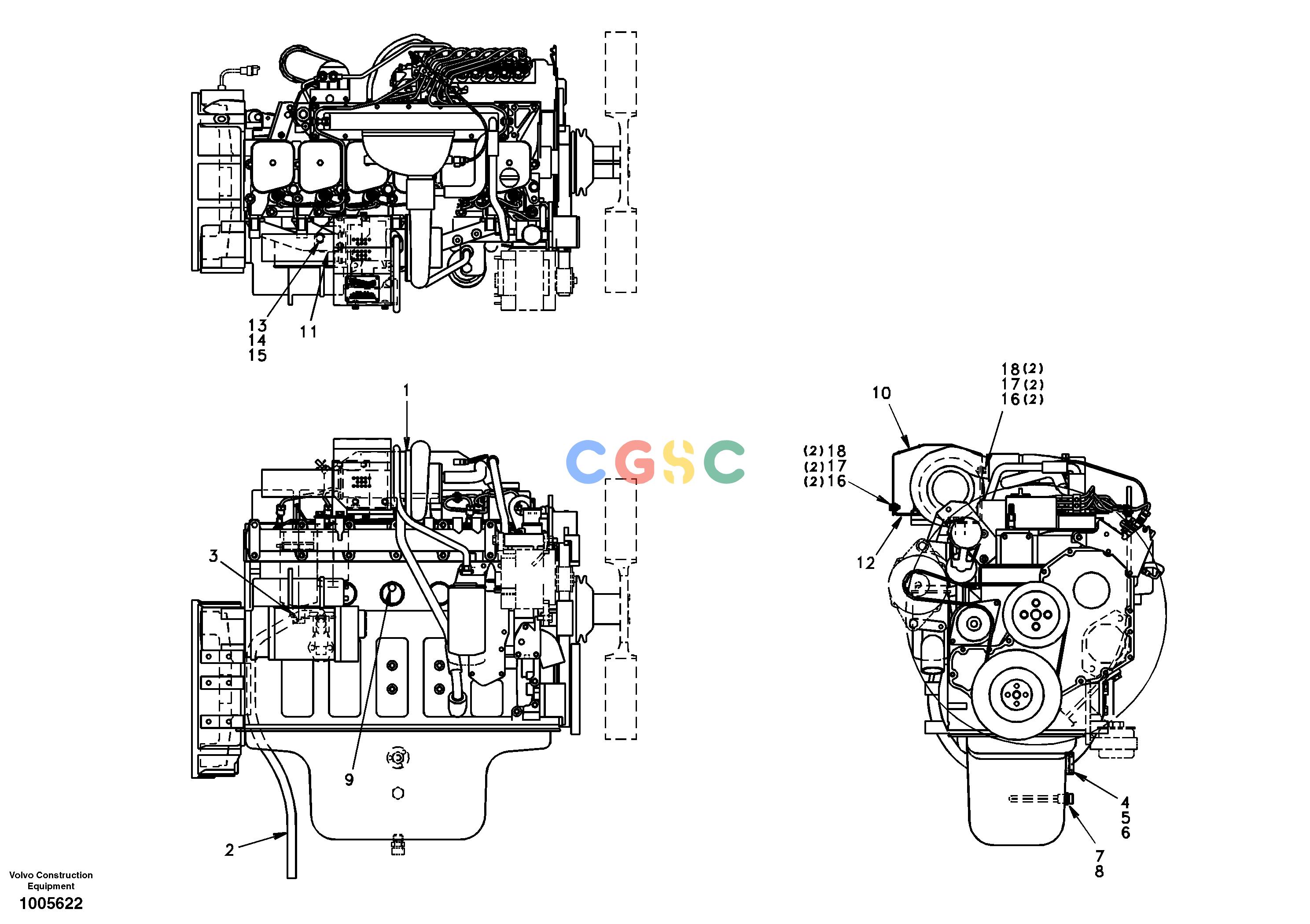

沃尔沃零件查询EC210 EngineNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1111-00313
|
[1] |
Engine
|
Tropical
|
| |
SA1111-00013
|
|
Engine
|
STD
|
| 2. |
SA9952-19017
|
[1] |
Hose
|
|
| 3. |
SA9312-10175
|
[1] |
Hose clamp
|
|
| 4. |
SA1111-00221
|
[1] |
Connector
|
|
| 5. |
VOE990581
|
[1] |
O-ring
|
|
| 6. |
SA9016-10603
|
[3] |
Hex. socket screw
|
|
| 7. |
SA2011-00440
|
|
Heater
|
120V
|
| |
SA2011-00430
|
|
Heater
|
240V
|
| 8. |
VOE13947627
|
|
Plane gasket
|
|
| 9. |
SA2011-00500
|
|
Heater
|
|
| |
SA2011-00490
|
|
Heater
|
|
| 10. |
SA1111-00491
|
|
Screen
|
|
| 11. |
SA1111-00240
|
|
Bracket
|
|
| 12. |
SA1111-00250
|
|
Bracket
|
|
| 13. |
VOE997434
|
|
Hexagon screw
|
|
| 14. |
VOE992040
|
|
Plain washer
|
|
| 15. |
VOE955922
|
|
Spring washer
|
|
| 16. |
VOE983241
|
|
Hexagon screw
|
|
| 17. |
VOE993835
|
|
Plain washer
|
|
| 18. |
VOE955921
|
|
Spring washer
|
|
