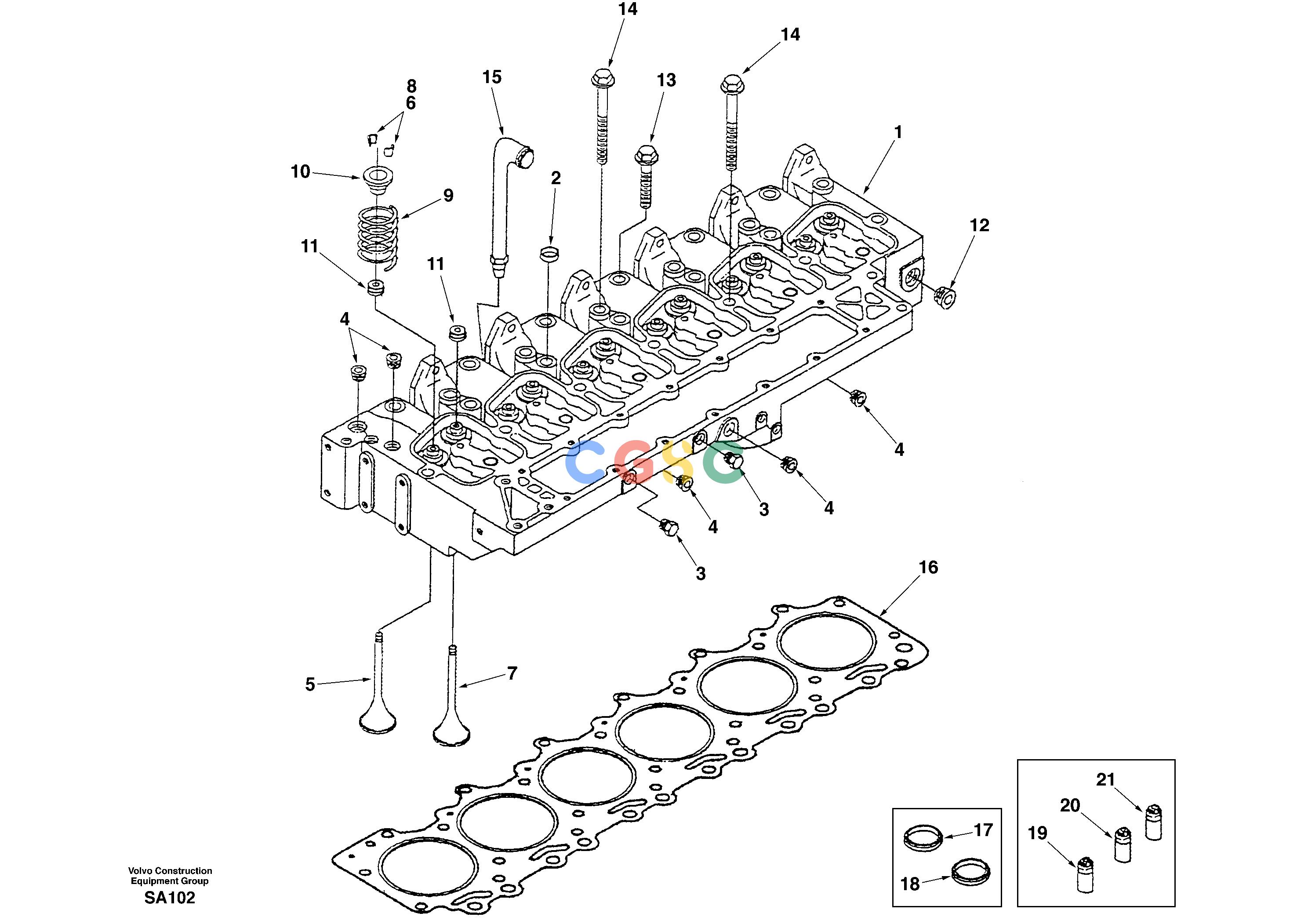

沃尔沃零件查询EC210 Cylinder headNoneDD04B001-DD04B002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA3967455
|
[1] |
Cylinder head
|
|
| |
SA3930421
|
[1] |
Head
|
|
| 2. |
SA3812092
|
[5] |
Plug
|
|
| 3. |
SA3906619
|
[2] |
Plug
|
|
| 4. |
SA3008468
|
[5] |
Tube plug
|
|
| 5. |
SA3802355
|
[6] |
Valve
|
INLET
|
| |
SA3802355
|
[6] |
Valve
|
|
| 6. |
SA3900250
|
[12] |
Collet
|
|
| 7. |
SA3802356
|
[6] |
Valve
|
EXHAUST
|
| |
SA3802356
|
[6] |
Valve
|
|
| 8. |
SA3900250
|
[12] |
Collet
|
|
| 9. |
SA3926700
|
[12] |
Spring
|
|
| 10. |
SA3900299
|
[12] |
Retainer
|
|
| 11. |
SA3921640
|
[6] |
Seal
|
|
| 12. |
SA3008469
|
[1] |
Plug
|
|
| 13. |
SA3920779
|
[6] |
Bolt
|
|
| 14. |
VOE11716103
|
[14] |
Bolt
|
|
| 15. |
SA3926446
|
[1] |
Pipe
|
|
| 16. |
SA3283335
|
[1] |
Gasket
|
|
| 17. |
SA3904105
|
[REQ] |
Seat
|
EXHAUST
|
| 18. |
SA3906854
|
[REQ] |
Seat
|
INLET
|
| 19. |
SA3904408
|
[REQ] |
Guide
|
INTAKE
|
| 20. |
SA3904409
|
[REQ] |
Guide
|
EXHAUST
|
| 21. |
SA3906206
|
[REQ] |
Guide
|
I & E
|
