纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (0.520[01]) - THROTTLE CONTROL New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
321 次

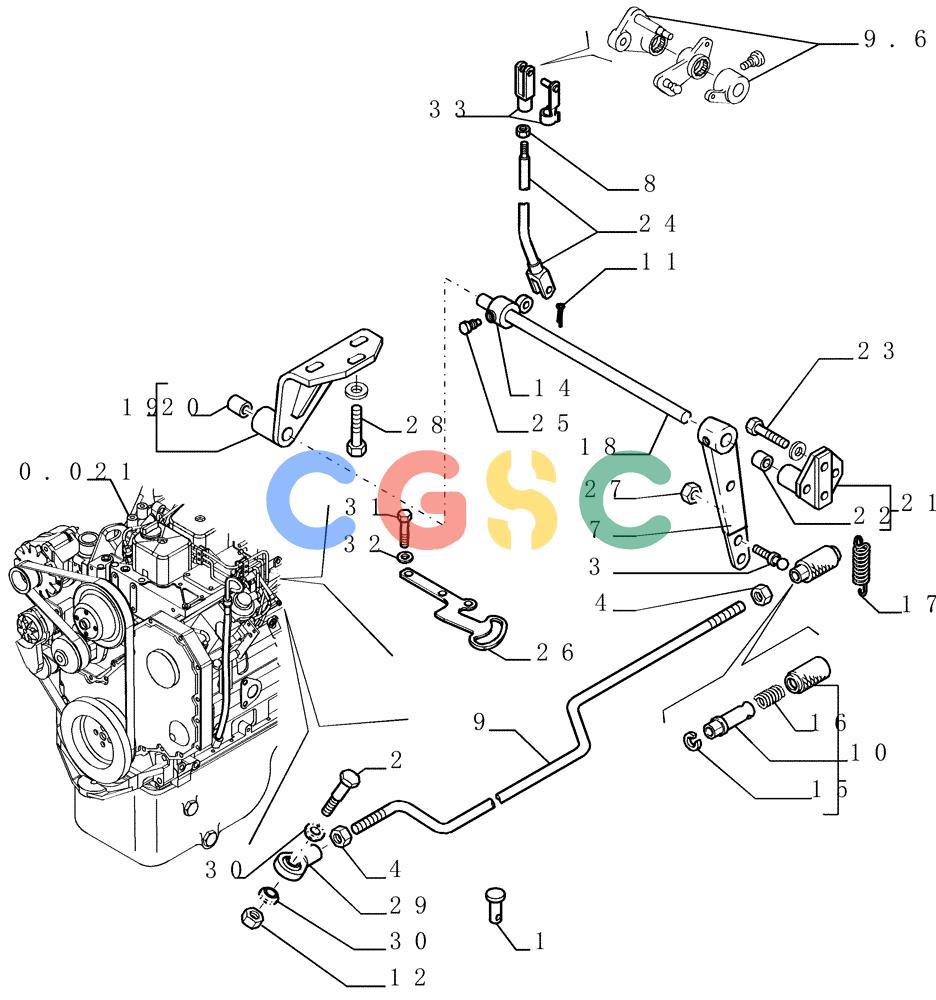

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10050811 | [1] | PIN,8mm OD x 22mm L | LEC |
| 2. | 76092313 | [1] | BOLT,Hex, M6 x 1 x 16mm | LEC6X1X16 |
| 3. | 76071045 | [1] | BALL STUD,M10 x 1.5 | LECBALL PIN 8x1,25x5 |
| 4. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 5. | 14496431 | [1] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 6. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 7. | 76092316 | [1] | LEVER | LEC- FRONT |
| 8. | 16102321 | [1] | THIN NUT,Thin, M8 x 1.25, Cl 05 | TTF Superseded by part number: 103889 |
| 9. | 76092151 | [1] | TIE-ROD | LEC |
| 10. | 76071046 | [1] | QUICK MALE COUPLING | LEC- ASSY |
| 11. | 10734201 | [1] | COTTER PIN,M2 x 12 | TTF Superseded by part number: |
| 12. | 16104121 | [1] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 14. | 79085368 | [1] | LEVER | LEC |
| 15. | 13420776 | [1] | RING | LEC |
| 16. | 79086837 | [1] | SPRING | LEC |
| 17. | 76073419 | [1] | SPRING | LEC Superseded by part number: 87346864 |
| 18. | 76046984 | [1] | ROD | LEC |
| 19. | 76046985 | [1] | SUPPORT | LECRIGHT ASSY |
| 20. | 79060774 | [1] | BUSHING | LEC |
| 21. | 76046986 | [1] | SUPPORT | LECLEFT ASSY |
| 23. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 24. | 76069834 | [1] | TIE-ROD | LEC |
| 25. | 569475 | [2] | SCREW | LEC Superseded by part number: 4968815 |
| 26. | 76092312 | [1] | SUPPORT | LEC |
| 27. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 28. | 11106031 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 29. | 79050262 | [1] | ARTICULATION | LEC |
| 30. | 79074509 | [2] | SPACER,8.2mm ID x 16mm OD x 4.5mm L | LEC |
| 31. | 16043931 | [2] | SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043934 |
| 32. | 12645031 | [2] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 33. | 76067772 | [1] | YOKE | LEC |
