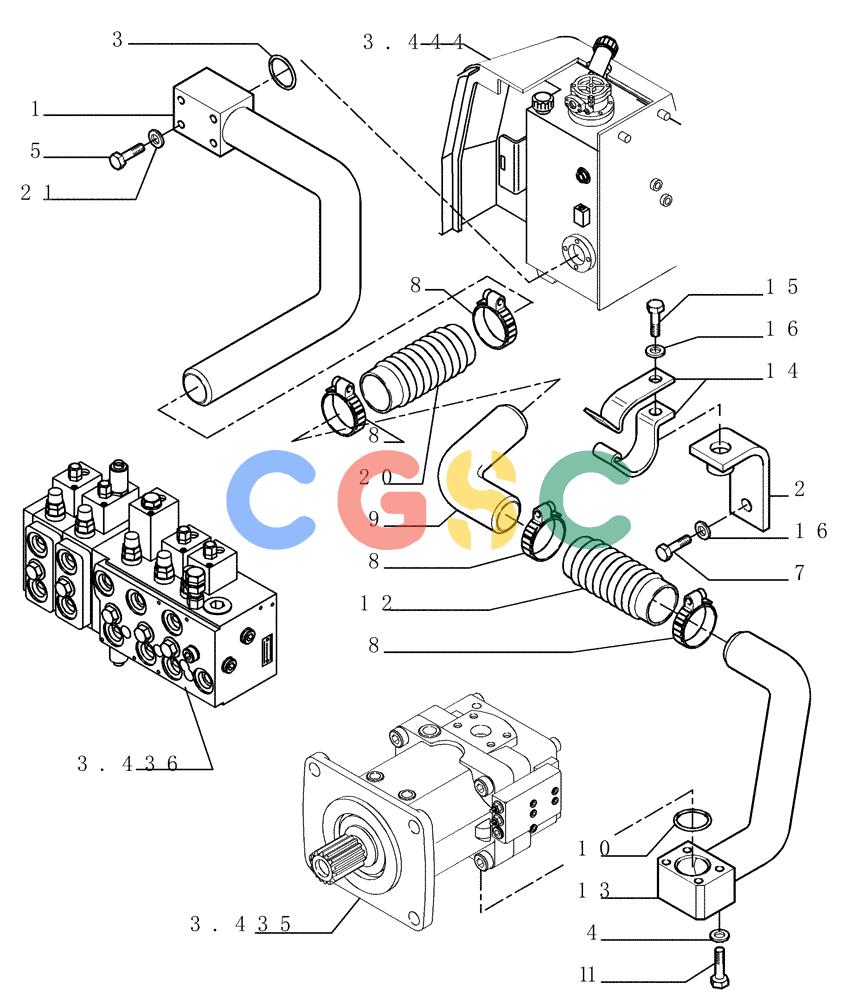

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.434[01]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
121 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76074867 | [1] | FLEXIBLE HOSE | LEC- SUCTION |
| 2. | 76075039 | [1] | BRACKET | LEC |
| 3. | 14464780 | [1] | O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro | MKT(M59.92 ID x 3.53 Thk) Superseded by part number: 76046537 |
| 4. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 5. | 11108831 | [4] | BOLT,Hex, M10 x 130mm, Cl 10.9 | LEC Superseded by part number: 84577051 |
| 7. | 11103031 | [1] | BOLT,Hex, M10 x 18, 10.9, Full Thd | LEC |
| 8. | 79083848 | [4] | HOSE CLAMP,M60-80 | TOR Superseded by part number: 71404503 |
| 9. | 76074852 | [1] | FLEXIBLE HOSE | LEC |
| 10. | 14464981 | [1] | O-RING,66.27mm ID x 2.887" OD x 3.53mm | LEC Superseded by part number: 17290381 |
| 11. | 11114231 | [4] | BOLT,Hex, M12 x 100, 10.9 | LEC Superseded by part number: 86508622 |
| 12. | 76075429 | [1] | HYDRAULIC HOSE,60.00 mm ID x 275.00 mm | LEC |
| 13. | 76089128 | [1] | RIGID TUBE | LEC- SUCTION |
| 14. | 76069256 | [3] | BRACKET | LEC |
| 15. | 11106231 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 16. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 20. | 76073035 | [1] | HOSE | LEC |
| 21. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
