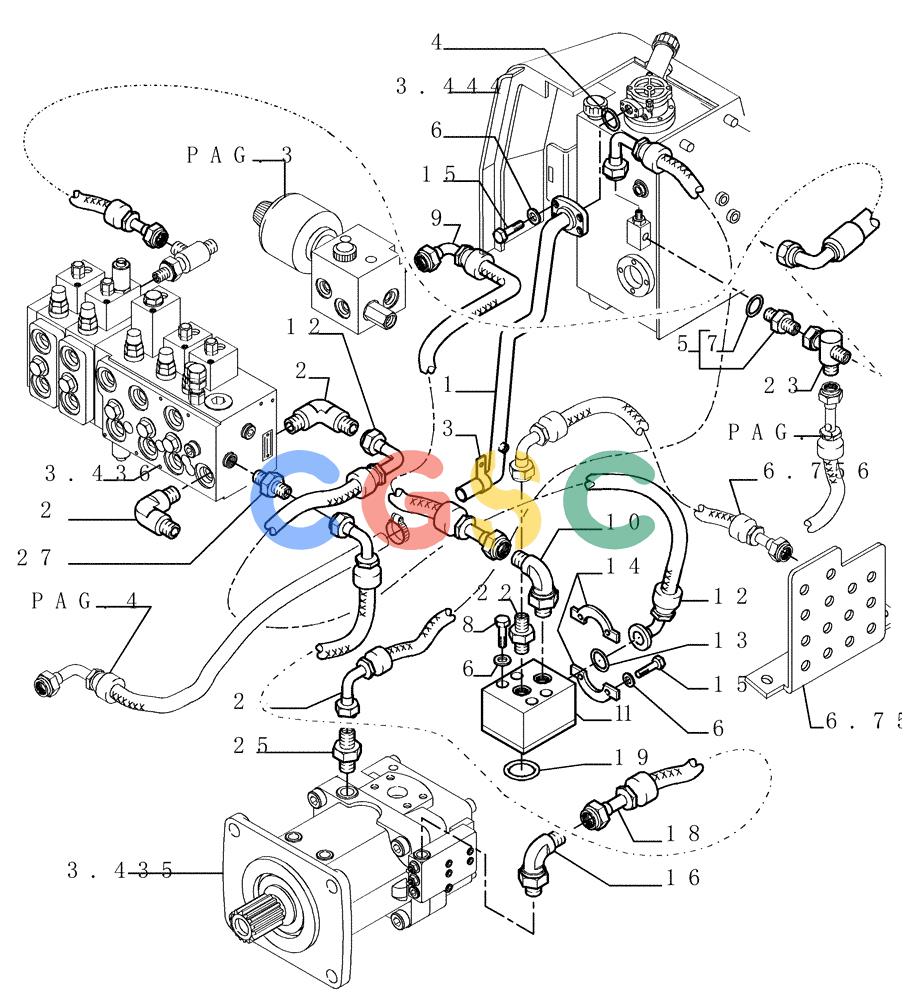

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.434[02]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
231 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76076680 | [1] | FLEXIBLE HOSE | LEC- RETURN |
| 2. | 76069294 | [2] | HYD CONNECTOR | LEC90° |
| 3. | 76078170 | [1] | CLAMP | LEC |
| 5. | 79066939 | [1] | HYD CONNECTOR | LEC- ASSY |
| 6. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 8. | 11114131 | [4] | BOLT,Hex, M12 x 95, 10.9 | LEC |
| 9. | 76089153 | [1] | FLEXIBLE HOSE | LEC |
| 10. | 79067018 | [1] | 90 ELBOW | LEC10 a 90° |
| 11. | 76054737 | [1] | FLANGE | LEC- DELIVERY Superseded by part number: 76074620 |
| 12. | 76089151 | [1] | FLEXIBLE HOSE | LEC- DELIVERY |
| 13. | 14463781 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro | LEC |
| 14. | 71404313 | [2] | CLAMP,Half | LEC |
| 15. | 14422231 | [8] | HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14422237 |
| 16. | 79054402 | [1] | ELBOW | LEC Superseded by part number: 76344 |
| 17. | 76076771 | [1] | FLEXIBLE HOSE | LEC |
| 18. | 76089157 | [1] | FLEXIBLE HOSE | LEC |
| 19. | 70924200 | [1] | O-RING | LEC3,53X32,92 Superseded by part number: 14463780 |
| 22. | 79066938 | [1] | FITTING | LEC |
| 23. | 79054269 | [1] | TEE | LEC |
| 24. | 76089154 | [1] | FLEXIBLE HOSE | LEC- EXHAUST |
| 25. | 79056756 | [1] | HYD CONNECTOR | LEC |
| 27. | 79095838 | [1] | HYD CONNECTOR | LEC1/4G. 9/16"-18 |
| 4. | 14464681 | [1] | O-RING,56.74mm ID x 2.512" OD x 3.53mm | IMO(M56.74 ID x 3.53 Thk) |
| 7. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
