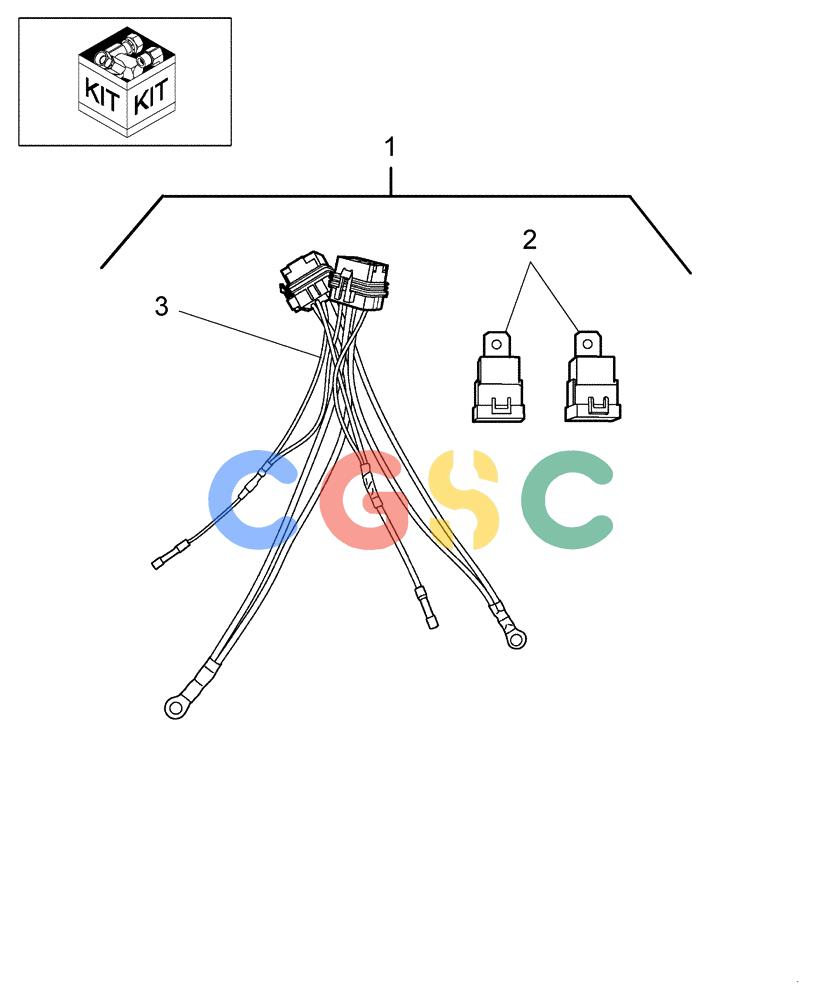

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (06.30) - POWER RELAY CONVERSION KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84226853
|
[1] |
KIT
|
NH
Power Relay Conversion, Includes: Ref. 2 - 7 & Installation Instructions
|
| 2. |
82017871
|
[2] |
RELAY,12V, 20A
|
BAS
Superseded by part number: 84411012
|
| 3. |
84214839
|
[1] |
WIRE HARNESS
|
NH
Jumper, Power Relay
|
| 4. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 5. |
9706755
|
[2] |
NUT,M6, Cl 8
|
NH
Superseded by part number: 86500688
|
| 6. |
322357
|
[2] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
249730
|
[1] |
SECURING STRAP
|
NH
Superseded by part number: 249730F, 249730F, 263117
|
