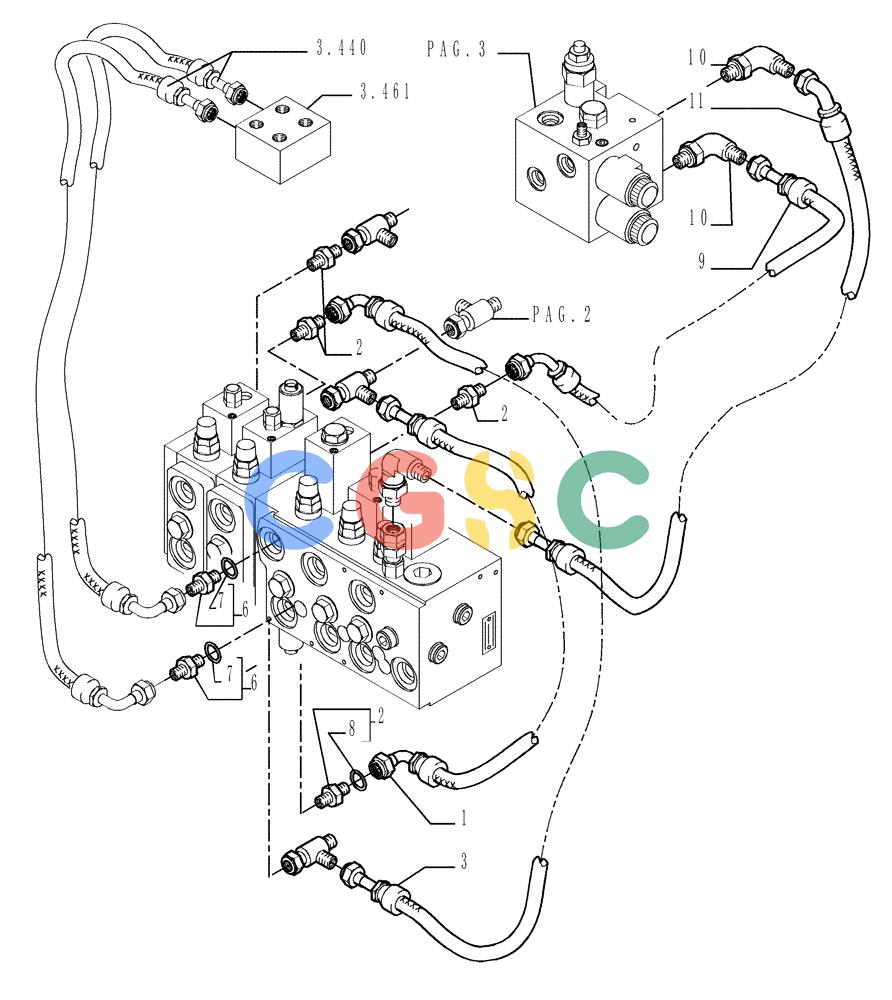

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.434[06]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
301 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76075475 | [1] | FLEXIBLE HOSE | LEC |
| 2. | 79095838 | [3] | HYD CONNECTOR | LEC- ASSY 1/4G. 9/16"-18 |
| 3. | 76075472 | [1] | FLEXIBLE HOSE | LEC |
| 4. | 76075476 | [2] | FLEXIBLE HOSE | LEC Superseded by part number: 76066151 |
| 6. | 79094128 | [2] | HYD CONNECTOR | LEC- ASSY Superseded by part number: 154221912 |
| 7. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 8. | 70932571 | [1] | O-RING | LEC2,62X10,77 Superseded by part number: 14456981 |
| 9. | 76075467 | [1] | FLEXIBLE HOSE | LEC |
| 10. | 79067018 | [2] | 90 ELBOW | LEC10 a 90° |
| 11. | 76075466 | [1] | FLEXIBLE HOSE | LEC |
