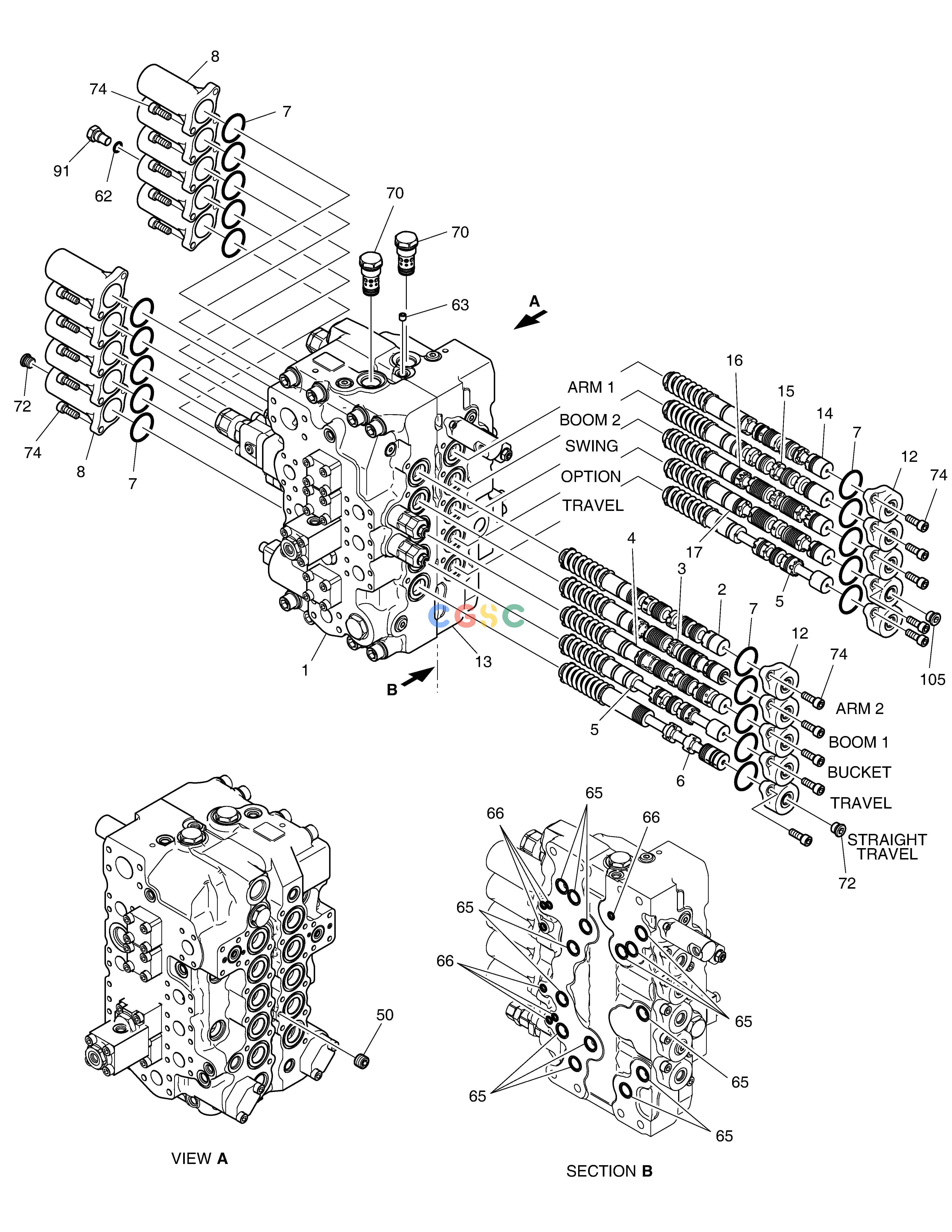

斗山零件查询CONTROL VALVE(2) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410105-00139C
|
[1] |
|
|
| 1. |
423-00096
|
[1] |
HOUSING;VALVE
|
|
| 105. |
181-00701
|
[1] |
PLUG ASS'Y
|
|
| 12. |
430-00035
|
[10] |
CAP
|
|
| 13. |
423-00097
|
[1] |
HOUSING;VALVE
|
|
| 14. |
410207-00479
|
[1] |
|
|
| 15. |
K9002897
|
[1] |
SPOOL ASS'Y-BOOM2
|
|
| 16. |
2.424-00277
|
[1] |
SPOOL ASS'Y-SWING
|
|
| 17. |
424-00123
|
[1] |
SPOOL ASS'Y-OPTION
|
|
| 2. |
424-00185
|
[1] |
SPOOL ASS'Y-ARM2
|
|
| 3. |
410207-00295
|
[1] |
|
|
| 4. |
424-00199
|
[1] |
SPOOL ASS'Y-BUCKET
|
|
| 5. |
410207-00296
|
[2] |
|
|
| 50. |
K9001199
|
[1] |
PLUG
|
|
| 6. |
424-00115
|
[1] |
SPOOL ASS'Y-T/S
|
|
| 62. |
S8000141
|
[1] |
O-RING
|
|
| 63. |
415-00037
|
[1] |
PLUG;ORIFICE
|
|
| 65. |
K9002675
|
[14] |
O-RING
|
|
| 66. |
S8000105
|
[7] |
O-RING P10
|
|
| 7. |
S8010451
|
[20] |
O-RING
|
|
| 70. |
420-00259
|
[2] |
FOOT RELIFE VALVE
|
|
| 72. |
181-00701
|
[2] |
PLUG ASS'Y
|
|
| 74. |
S2212266
|
[40] |
BOLT
|
|
| 8. |
430-00033
|
[10] |
CAP
|
|
| 91. |
181-00646
|
[1] |
PLUG
|
|
