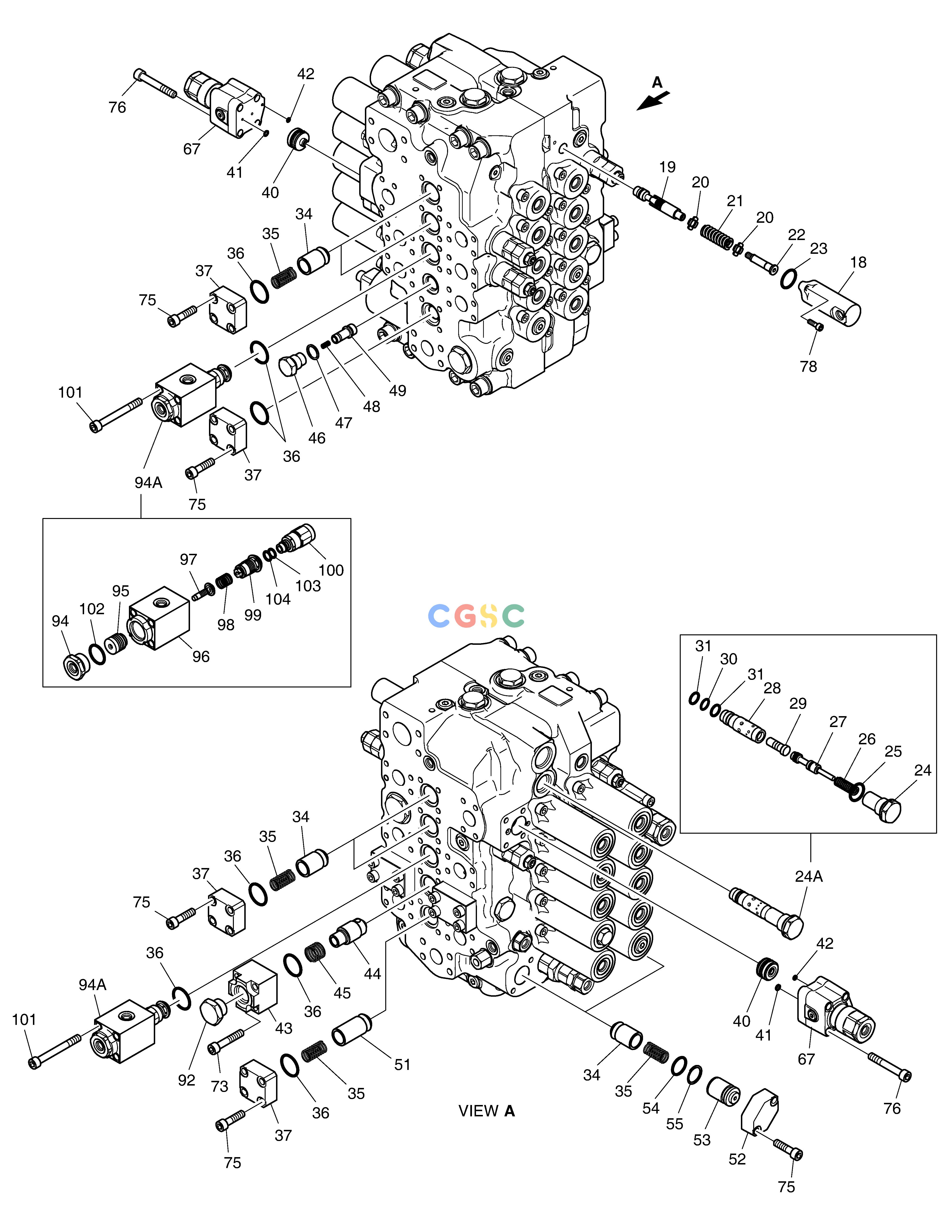

斗山零件查询CONTROL VALVE(3) DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410105-00139C
|
[1] |
|
|
| 100. |
426-00182
|
[2] |
POPET ASS'Y
|
|
| 101. |
S2213466
|
[8] |
SOCKET-HEAD BOLT
|
|
| 102. |
180-00400
|
[2] |
O-RING
|
|
| 103. |
S8060121
|
[2] |
RING;BACK UP
|
|
| 104. |
S8000121
|
[2] |
O-RING
|
|
| 18. |
430-00038
|
[1] |
CAP
|
|
| 19. |
K9002898
|
[1] |
SPOOL
|
|
| 20. |
429-00024
|
[2] |
SEAT;SPRING
|
|
| 21. |
129-00124
|
[1] |
SPRING
|
|
| 22. |
430-00040
|
[1] |
SPOOL END
|
|
| 23. |
S8000261
|
[1] |
O-RING
|
|
| 24. |
430-00041
|
[1] |
PLUG
|
|
| 24A. |
420-00314
|
[1] |
ARM REGEN ASS'Y
|
|
| 25. |
S8000241
|
[1] |
O-RING
|
|
| 26. |
129-00125
|
[1] |
SPRING
|
|
| 27. |
NA01161
|
[1] |
. SPOOL
|
|
| 28. |
NA01145
|
[1] |
SLEEVE
|
|
| 29. |
NA00796
|
[1] |
PISTON
|
|
| 30. |
S8000161
|
[1] |
O-RING
|
|
| 31. |
S8060161
|
[2] |
RING;BACK-UP
|
|
| 34. |
426-00169
|
[6] |
POPET
|
|
| 35. |
129-00127
|
[7] |
SPRING
|
|
| 36. |
S8000321
|
[9] |
O-RING
|
|
| 37. |
181-00628
|
[6] |
FLANGE
|
|
| 40. |
114-00411
|
[2] |
SPACER ASS'Y
|
|
| 41. |
S8000061
|
[2] |
O-RING
|
|
| 42. |
S8000041
|
[2] |
.. O-RING
|
|
| 43. |
K9009865
|
[1] |
FLANGE
|
|
| 44. |
K9009867
|
[1] |
POPET
|
|
| 45. |
K9009869
|
[1] |
SPRING
|
|
| 46. |
430-00042
|
[1] |
PLUG
|
|
| 47. |
180-00398
|
[1] |
O-RING
|
|
| 48. |
129-00129
|
[1] |
SPRING
|
|
| 49. |
426-00172
|
[1] |
POPET
|
|
| 51. |
426-00173
|
[1] |
POPET
|
|
| 52. |
181-00631
|
[2] |
FLANGE
|
|
| 53. |
114-00413
|
[2] |
SPACER
|
|
| 54. |
S8010250
|
[2] |
O-RING
|
|
| 55. |
180-00445
|
[2] |
RING;BACK-UP
|
|
| 67. |
420-00246
|
[2] |
ANTI-DRIFT VALVE ASS'Y
|
|
| 73. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 75. |
S2212466
|
[28] |
BOLT
|
|
| 76. |
S2213066
|
[8] |
BOLT;SOCKET M10X1.5X70
|
|
| 78. |
S2204866
|
[2] |
BOLT
|
|
| 92. |
181-00647
|
[1] |
PLUG ASSY
|
|
| 94. |
430-00045
|
[2] |
PLUG
|
|
| 94A. |
420-00309
|
[2] |
BOOM PRIORITY VALVE
|
|
| 95. |
409-00049
|
[2] |
PISTON
|
|
| 96. |
NA00079
|
[2] |
BODY
|
|
| 97. |
409-00050
|
[2] |
PISTON
|
|
| 98. |
129-00139
|
[2] |
SPRING
|
|
| 99. |
NA01145
|
[2] |
SLEEVE
|
|
