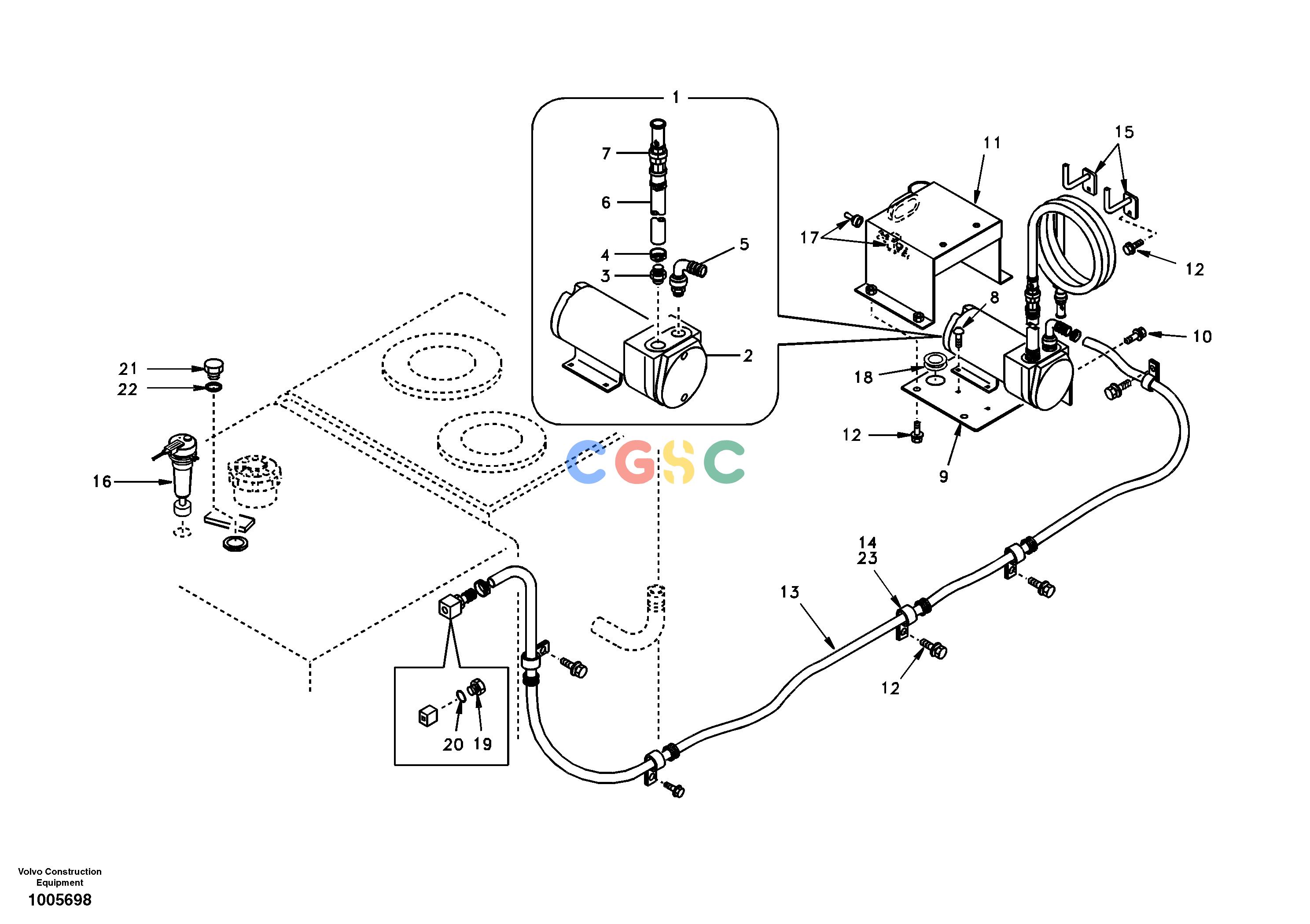

沃尔沃零件查询EC210 Fuel filling pumpNoneDD04J001-DD04J002NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
587 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1128-00470
|
|
Fuel Fill Pump
|
35L
SER NO 3001-5098
|
| |
VOE14515086
|
|
Fuel Fill Pump
|
35L
SER NO 5099-
|
| |
SA1128-00480
|
|
Fuel Fill Pump
|
50L
|
| |
SA1128-00490
|
|
Fuel Fill Pump
|
50L+CONT
SER NO 3001-5098
|
| |
VOE14515087
|
|
Fuel Fill Pump
|
50L+CONT
SER NO 5099-
|
| 2. |
SA1128-00640
|
|
Fuel Fill Pump
|
|
| 3. |
SA1128-00030
|
|
Adapter
|
|
| |
VOE14529317
|
|
Adapter
|
|
| 4. |
SA1128-00410
|
|
Adapter
|
|
| |
VOE14529318
|
|
Adapter
|
|
| 5. |
VOE14517749
|
|
Hose
|
SER NO 3001-5098
|
| |
VOE14515171
|
[0000] |
Inlet hose
|
SER NO 5099-
|
| |
VOE14517657
|
|
Hose
|
|
| |
VOE14517657
|
|
Hose
|
SER NO 3001-5098
|
| |
VOE14517657
|
|
Hose
|
SER NO 5099-
|
| 6. |
SA1128-00060
|
[0000] |
Valve
|
|
| |
VOE11710987
|
|
Valve
|
|
| 7. |
SA1128-00310
|
[0000] |
Clip
|
|
| |
SA1128-00530
|
|
Clip
|
|
| 8. |
SA9041-10604
|
[0000] |
Bolt
|
|
| |
SA9041-21007
|
|
Bolt
|
|
| 9. |
SA1128-00451
|
[0000] |
Bracket
|
|
| 10. |
VOE946441
|
|
Flange screw
|
|
| 11. |
SA1128-00750
|
[0000] |
Cover
|
|
| 12. |
SA9041-11003
|
[0000] |
Bolt
|
|
| 13. |
SA9951-19046
|
[0000] |
Hose
|
|
| |
SA1128-00510
|
|
Hose
|
|
| 14. |
SA9315-03601
|
[0000] |
Clip
|
|
| 15. |
SA1128-00250
|
|
Stop
|
|
| 16. |
SA1122-04940
|
|
Level sensor
|
|
| 17. |
SA1128-00330
|
|
Toggle switch
|
|
| 18. |
SA2022-05150
|
|
Grommet
|
|
| 19. |
SA9415-11051
|
[1] |
Plug
|
SER NO 3001-5098
|
| |
VOE14515173
|
[1] |
Plug
|
SER NO 5099-
|
| 20. |
VOE983524
|
[1] |
O-ring
|
SER NO 3001-5098
|
| |
VOE13947629
|
[1] |
Plane gasket
|
SER NO 5099-
|
| 21. |
VOE14529323
|
[1] |
Plug
|
|
| 22. |
VOE990581
|
[1] |
O-ring
|
|
| 23. |
SA1122-03640
|
|
Grommet
|
|
