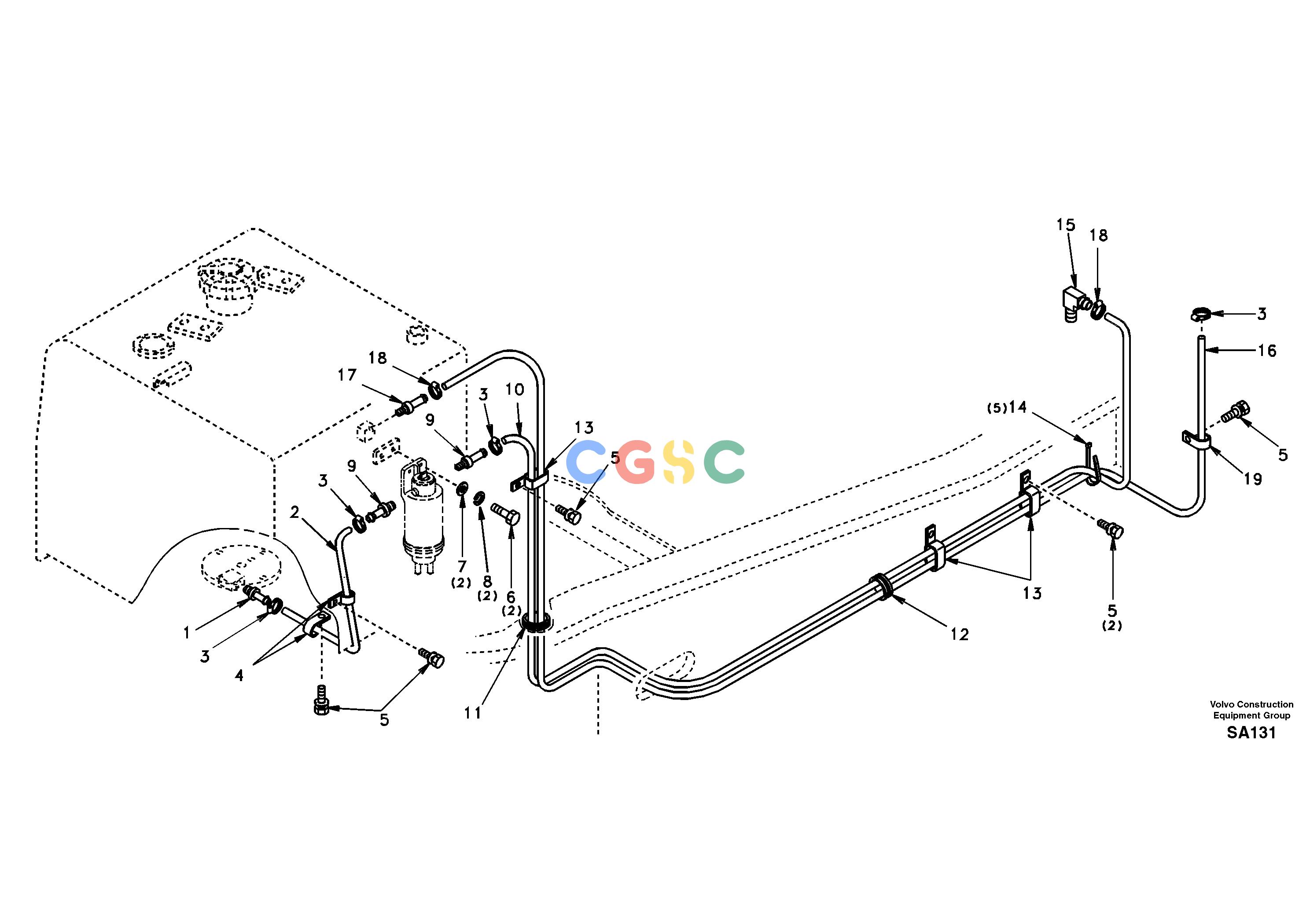

沃尔沃零件查询EC210 Fuel pipe - Fuel tankNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA9411-91370
|
[1] |
Connector
|
|
| 2. |
SA9951-13025
|
[1] |
Fuel hose
|
|
| 3. |
SA9312-00006
|
[4] |
Hose clamp
|
|
| 4. |
SA9315-02201
|
[2] |
Clip
|
|
| 5. |
SA9041-11003
|
[6] |
Bolt
|
|
| 6. |
SA9011-11005
|
[2] |
Bolt
|
|
| 7. |
VOE992040
|
[2] |
Plain washer
|
|
| 8. |
SA9213-10000
|
[2] |
Spring washer
|
|
| 9. |
SA9411-94940
|
[2] |
Fitting
|
|
| 10. |
SA9951-13054
|
[1] |
Fuel hose
|
|
| 11. |
SA9751-15016
|
[1] |
Grommet
|
SER NO 3001-4089
|
| |
SA9751-13612
|
[1] |
Grommet
|
SER NO 4090-
|
| 12. |
SA9751-13612
|
[1] |
Grommet
|
SER NO 3001-4089
|
| |
VOE14529112
|
[1] |
Grommet
|
SER NO 4090-
|
| 13. |
SA9316-02201
|
[3] |
Clip
|
|
| 14. |
SA9314-02100
|
[6] |
Cable tie
|
|
| 15. |
SA9411-94890
|
[1] |
Fitting
|
|
| 16. |
SA9951-09066
|
[1] |
Fuel hose
|
|
| 17. |
SA9411-08080
|
[1] |
Connector
|
|
| 18. |
VOE943469
|
[2] |
Hose clamp
|
|
| 19. |
SA9315-01602
|
[1] |
Insulating clip
|
|
